XL500

Overview

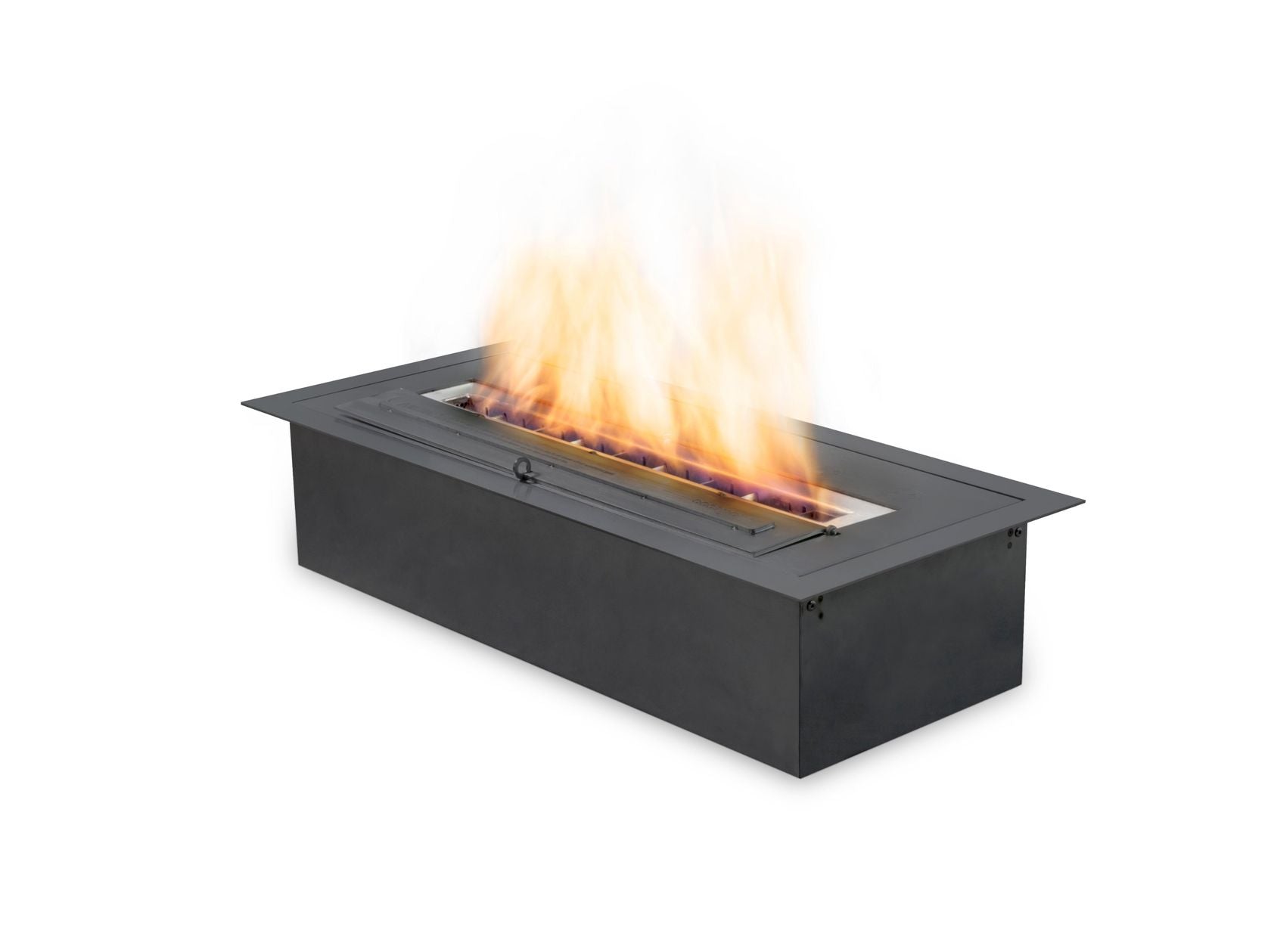

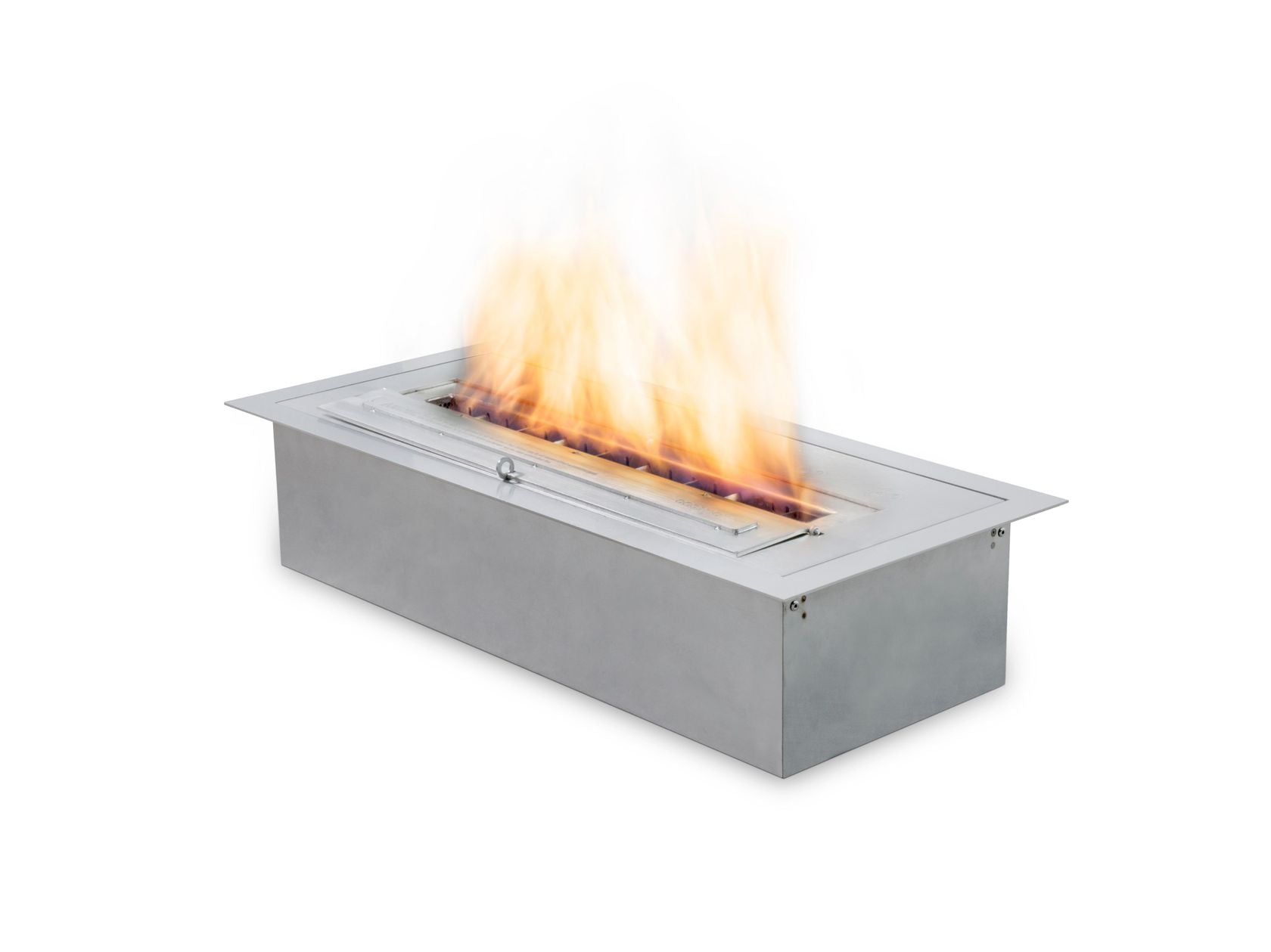

XL500 By EcoSmart Fire

Collection: Ethanol Burners

Type: Bioethanol burner

The baby of the XL Series, the XL500 may be compact in size, but this 5L ethanol burner effectively delivers a beautifully long, lasting flame.‎ Like the other models within the XL Series, this fire can be easily integrated into a horizontal, tailor-made setting.‎ Whether you just use the burner by itself or as part of the stainless steel 800SS or 800DB firebox inserts, you have an amazing design tool to achieve your vision.‎ APPLICATION: Indoor & Outdoor MATERIALS: Stainless Steel Grade 304 COLOUR: Stainless Steel or Black FUEL: Bioethanol HEATS ON AVERAGE: 40m2 [431ft2] MINIMUM ROOM: 80m3 [2825ft3] BURN TIME: 10 - 13 Hours THERMAL OUTPUT: 12 MJ/h - 11430 BTU/hr - 3.‎4 kW/h XL500 Features: ▪ A reliable and safe extinguishing system courtesy of a special shut-off mechanism and precision measurements.‎ XL burners operate under all conditions, at all temperatures, every time – reliable, consistent and reassuring.‎ ▪ A patented filling point is separated from the ignition zone and engineered so that the jerry can spout is fully supported prior to releasing the fuel supply.‎ This eliminates the usual splash and spills that often occur when fuel is decanted into the burner while simultaneously reinforcing the maximum fill line within the burner.‎ ▪ Purpose-designed baffle inserts allow you to regulate and further stabilise the flame at the same time as increasing fuel efficiency of the burner.‎ ▪ Custom designed extension lighting rod and gliding swivel ring that allows you to open the burner and extinguish the flame.‎ The series’ ‘flip lid’ shut-off system fits perfectly across the ignition zone to extinguish the flame and, when it is open, denies access to the separated filling point as a deterrent to filling the burner while it is in operation.‎ A deep-draw fabrication process eliminates the potential for dangerous leaks.‎
