TRAME By Tubes Radiatori
Collection: Elements
Designer: Stefano Giovannoni
Manufacture year: 2012

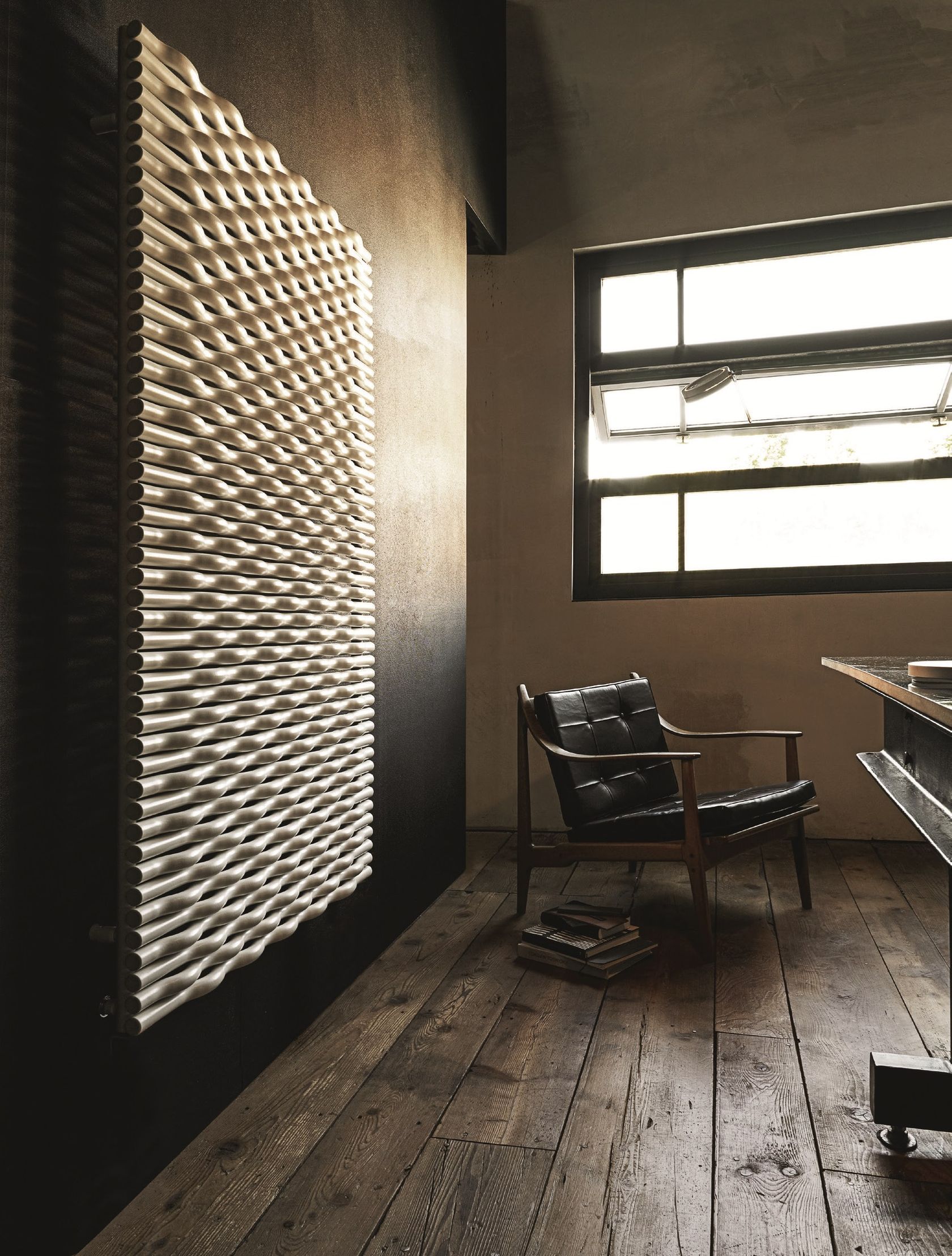

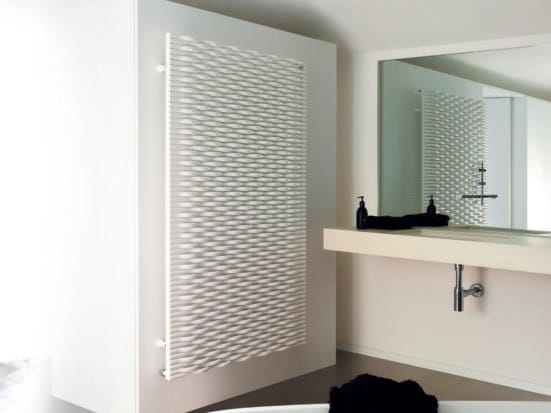

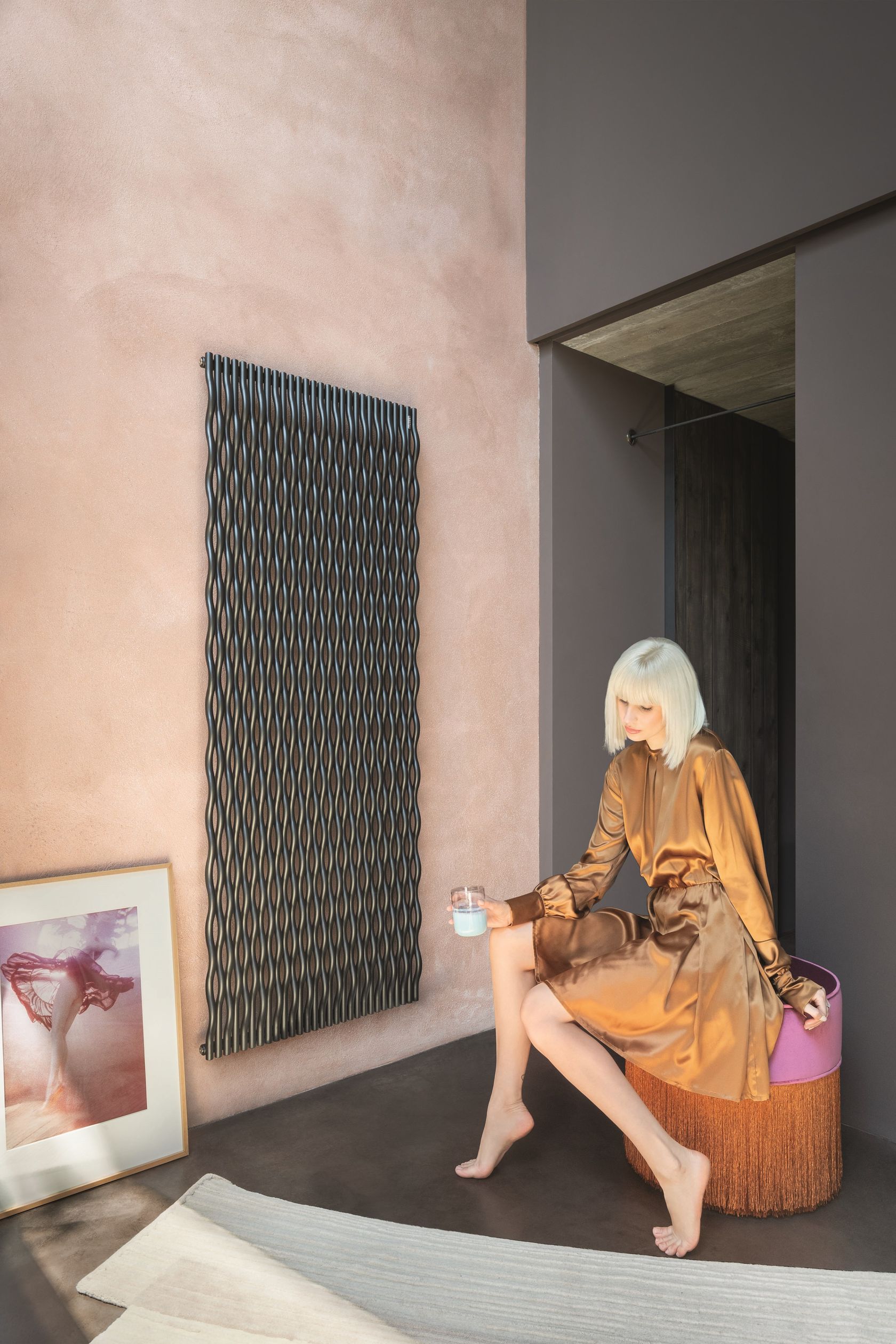

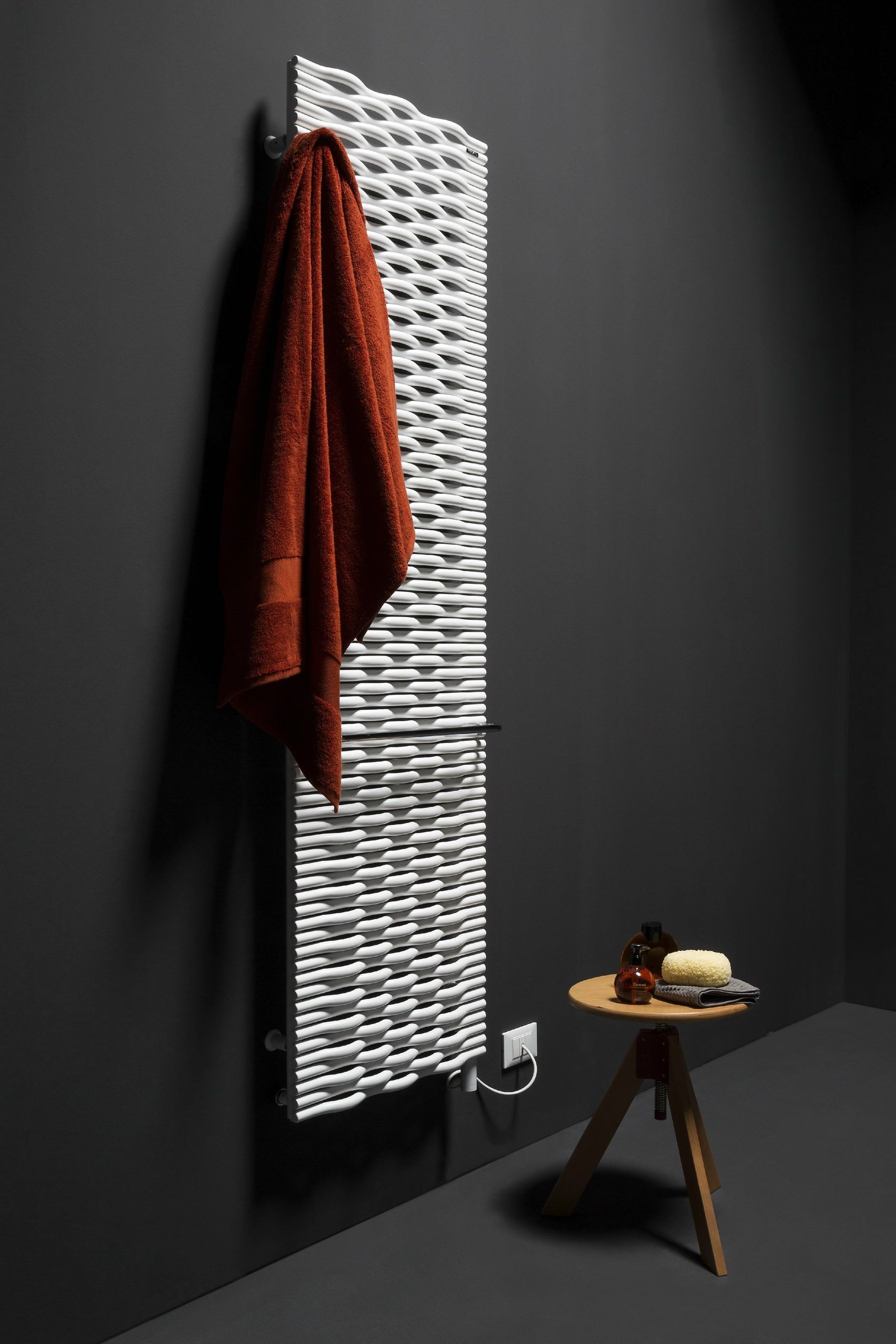

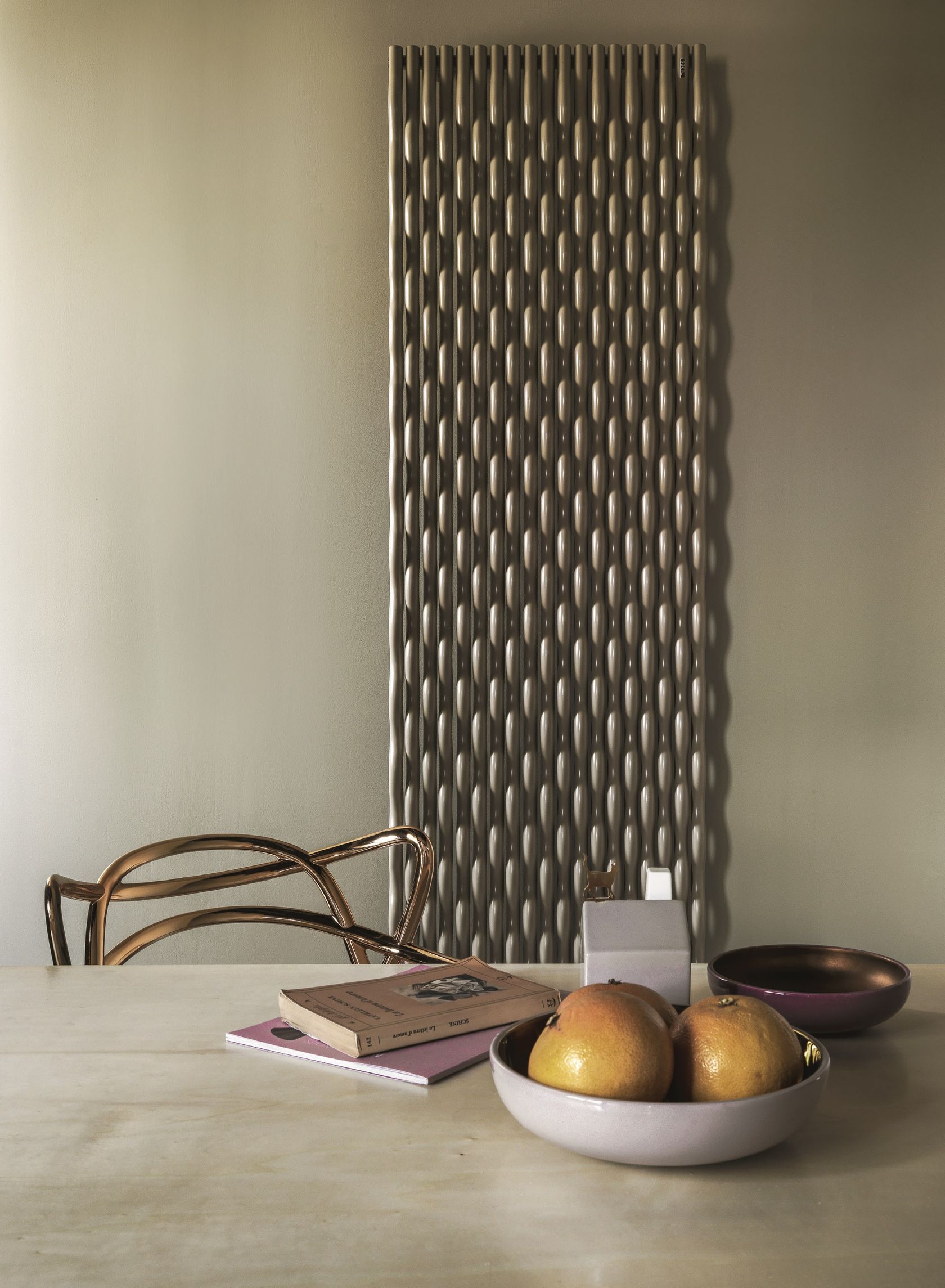

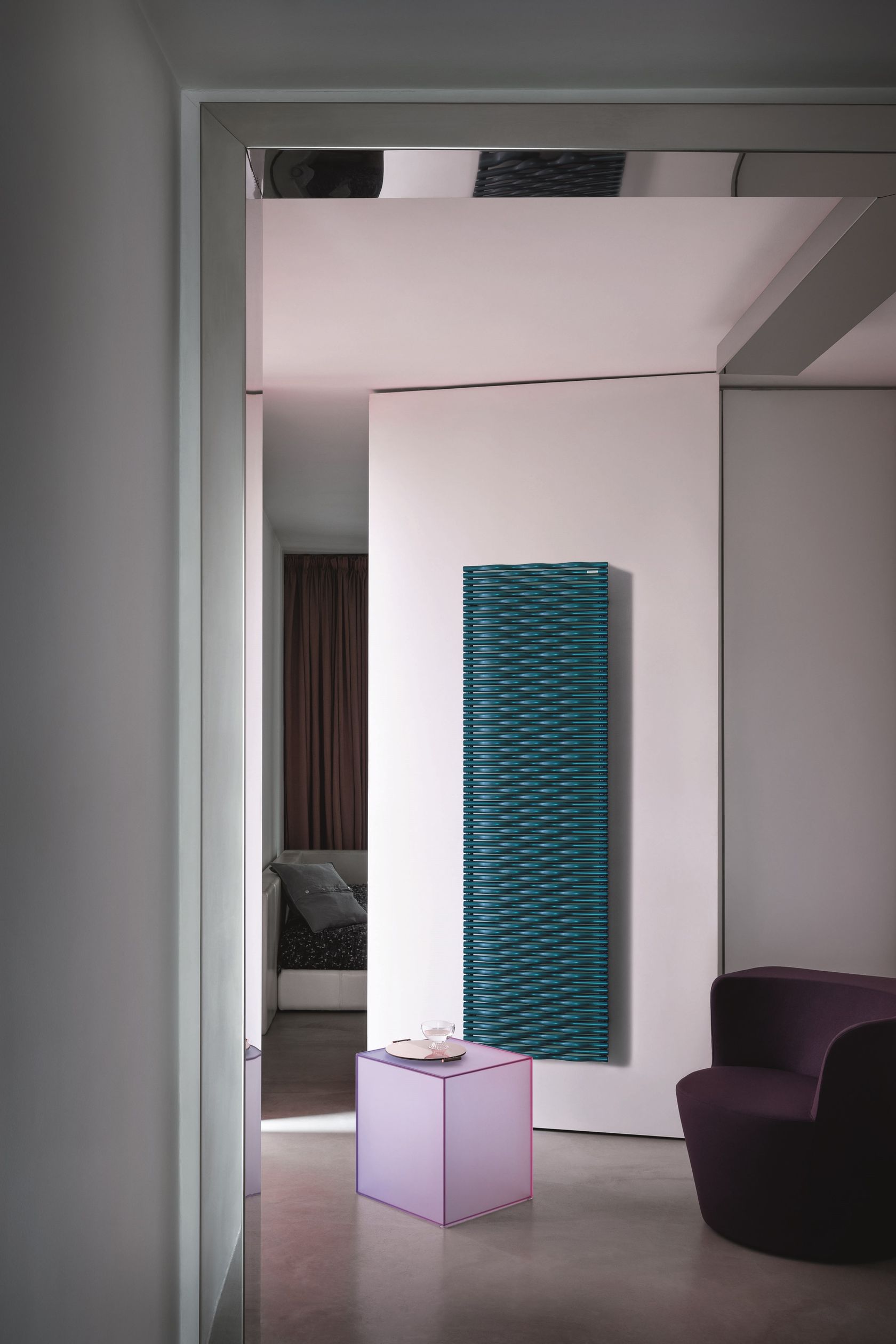

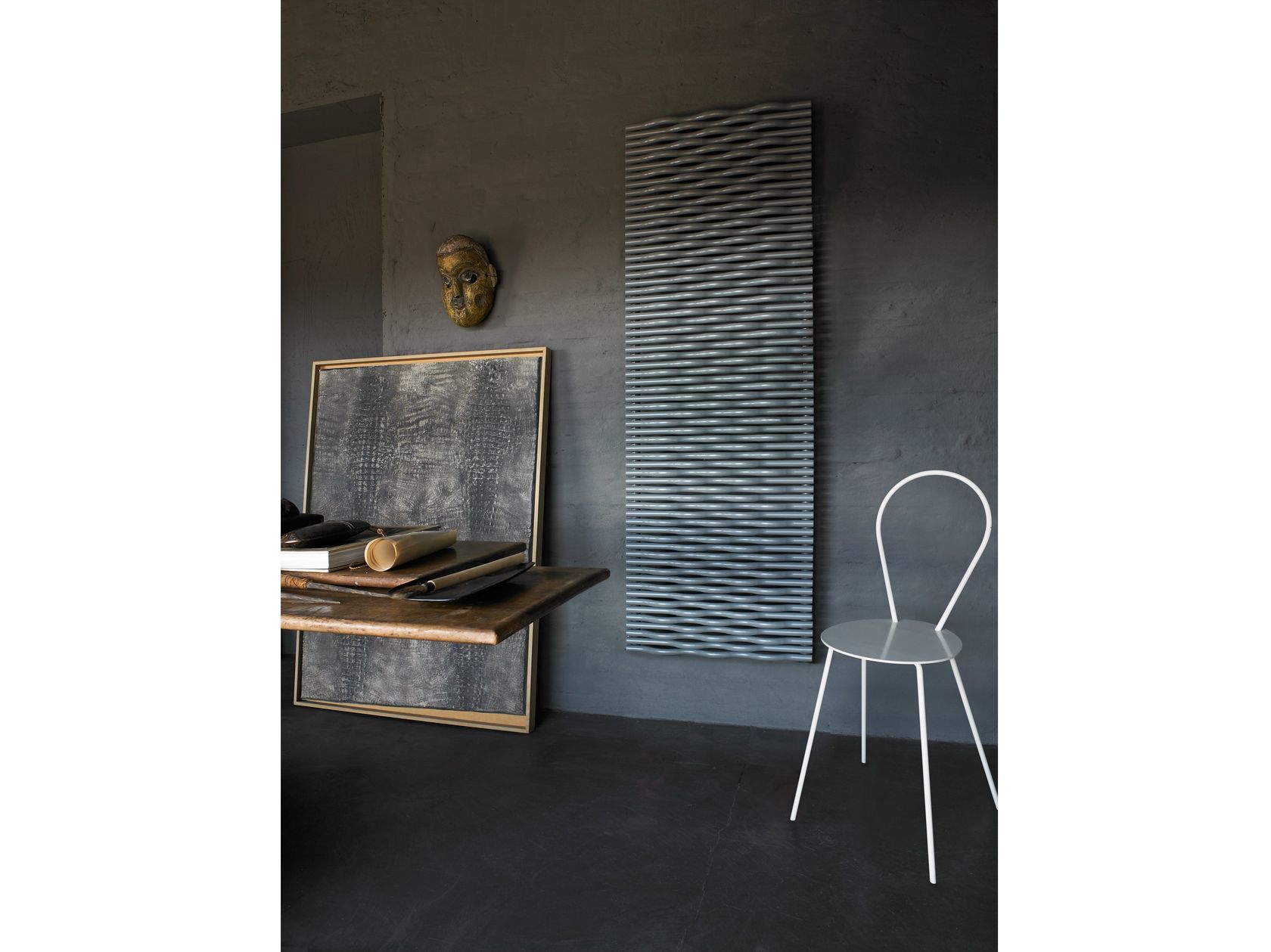

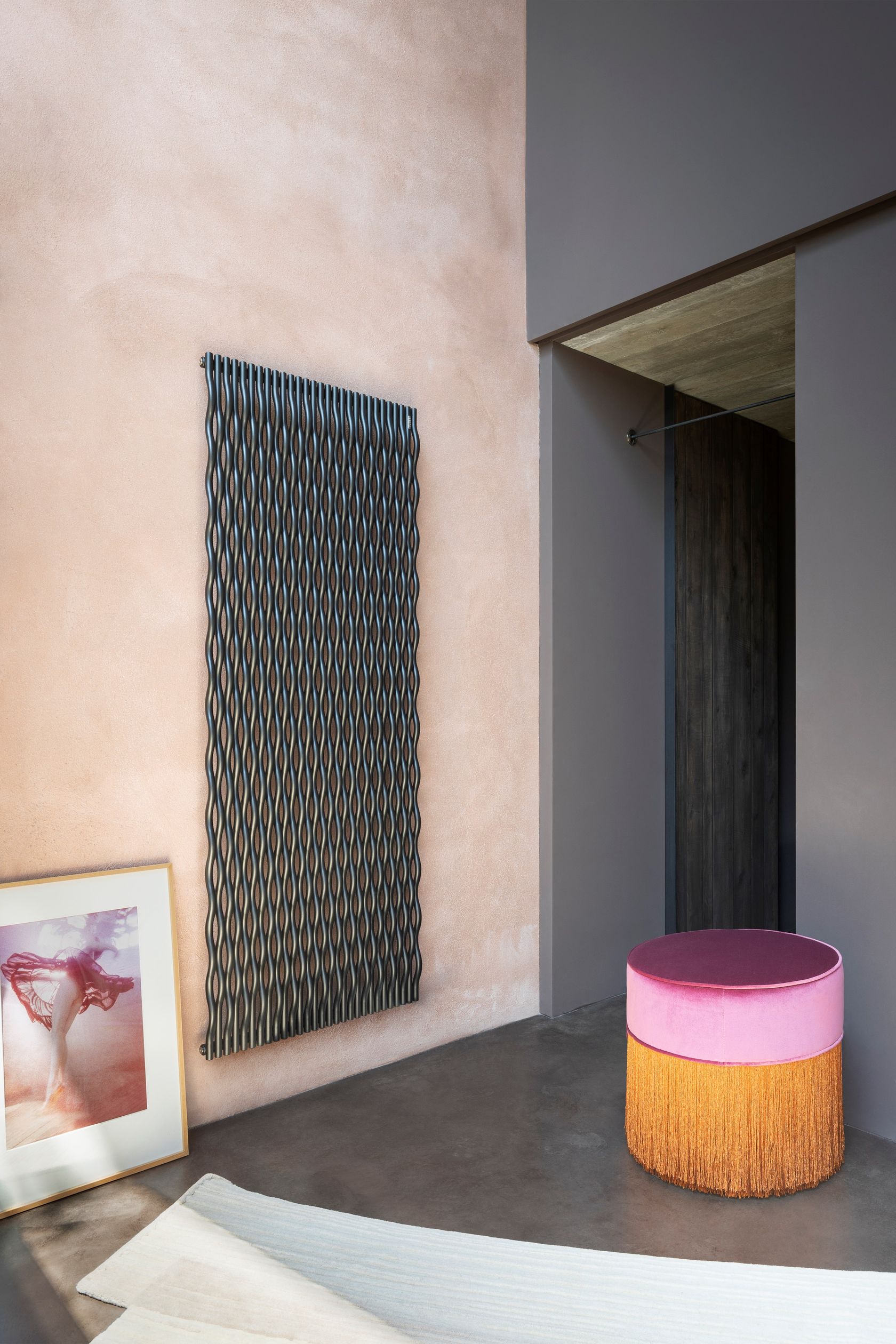

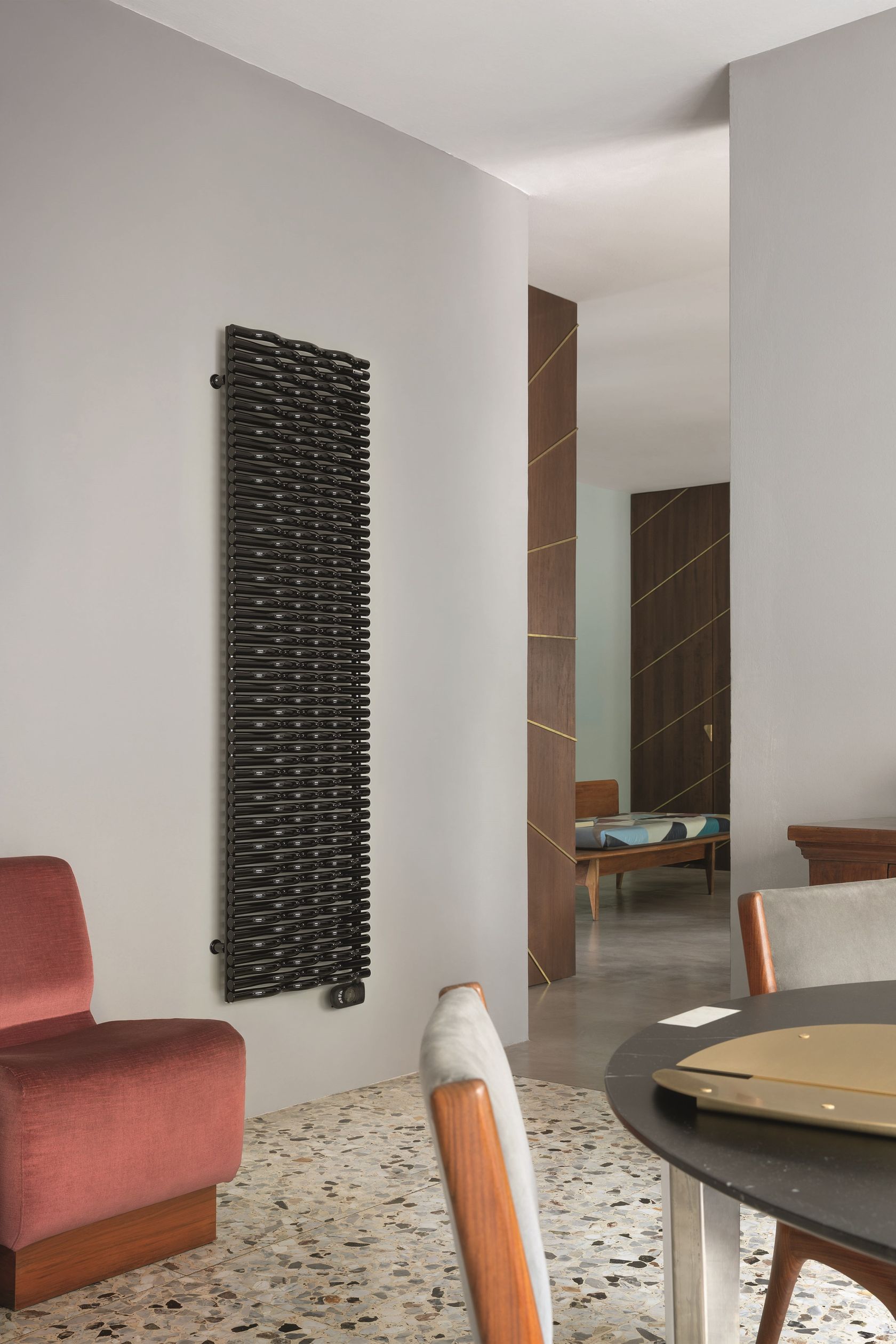

Type: Vertical wall-mounted steel decorative radiator

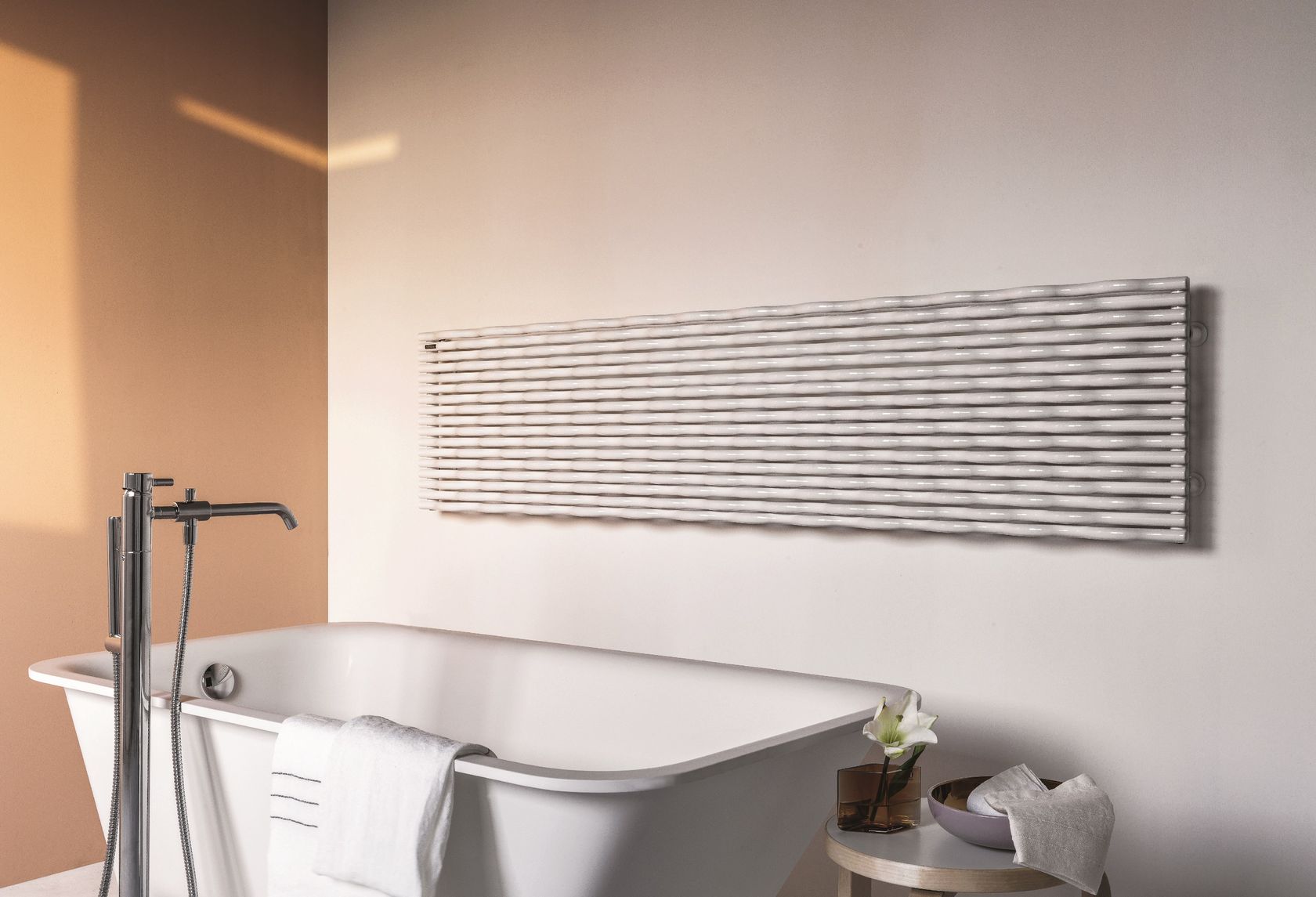

The Trame range is assembled using tubular elements measuring 14 mm, 20 mm and 28 mm in diameter, all 12/10 thick. The three versions have two collectors measuring 28 mm in diameter and 15/10 thick. The gap between tubular elements is 5 mm. Trame is made with low carbon content steel, which is ideal to create the curved shapes which distinguish the model. The Trame model is available in the version with horizontal or vertical elements in 5 different types. The length of the curved elements may vary from 52.5 to 196.0 cm. The Trame range is available in 279 different sizes in the hot water, electric and mixed versions. The vertical version is available for the Trame 20 and Trame 28 models. The horizontal Trame measuring 52.5 cm side is also available in the electric version in 12 different models and in the mixed version in another 12 models. Features and benefits 110 colours Finishes available: Satin and Micalized, Metallic, Glossy, Matt and Pearlescent. Certification The TRAME radiator was tested in the laboratories of the MILAN polytechnic in accordance with European Norm EN 442. This European certified laboratory checked the heat outputs and qualitative compliance of the product with the highest European standards. The Elements collection is the expression of a desire to eliminate stereotypes and pre-established industrial design processes. In a society that is free from conditioning, objects - whatever kind they may be - can “release themselves” too; that is to say, they can eliminate technical aesthetics and undergo design modifications. So freeing a radiator from its valves and position these at a distance of as much as six metres, thanks to a patented built-in unit, is equivalent to freeing it from its typical technical appearance. This brings about new possibilities of interpretation of form according to aesthetic-intellectual rules that differ from previous ones. For this reason, along with the Basics and Extras collections, the company introduced the Elements collection, created by architects and designers of international renown. Elements becomes a “container of ideas” where the designers are called upon to create radiators that are more closely linked with the aesthetics of the home, where the sensual warmth of heating products is integrated into the architectural space with the same dignity and importance in project terms as other contemporary interior decoration elements.
