STRUCTURAL By Vibia
Collection: Structural
Designer: Arik Levy
Manufacture year: 2017
Product code: 2640, 2642, 2645, 2647
Type: LED aluminium ceiling lamp

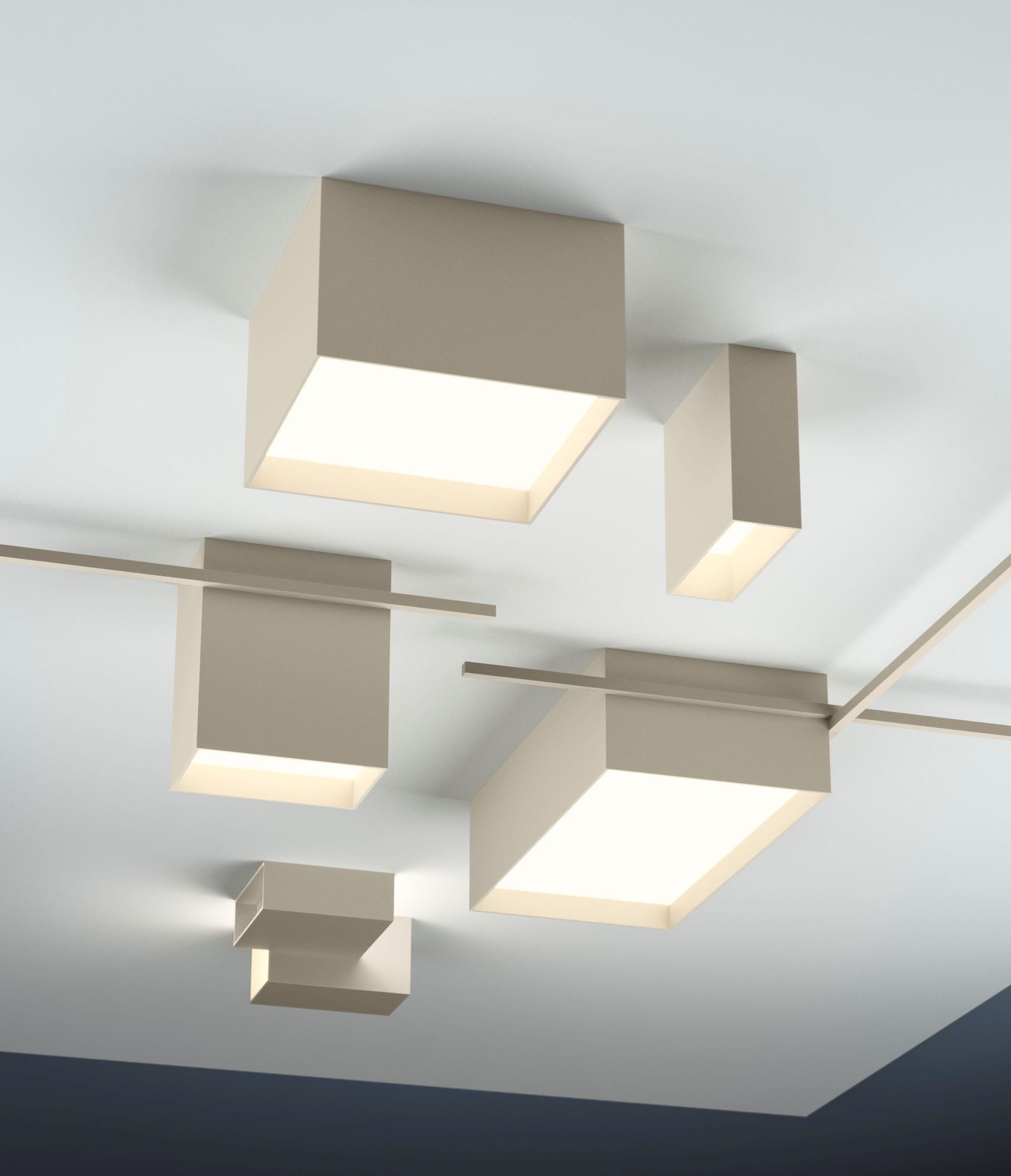

Structural is a ceiling light where different cubic volumes meet or expand to provide flexible solutions, maintaining spatial order. Installation type Surface Canopy Shade Polycarbonate diffuser Materials Body: Aluminum Diffuser: Polycarbonate Profile: Aluminum Structural 2640 Electrical characteristics Led 3000K CRI >90 0 lm 0 lm/W Driver included: CV - Constant Voltage 110~240V 50/60Hz Technical characteristics Main input by the biggest box Photometric data Efficiency : 62.84 lm/W Coordination system : CG Total Flux : 2073.70 lm Maximum value : 930.73 cd Structural 2642 Electrical characteristics Led 3000K CRI >90 0 lm 0 lm/W Driver included: CV - Constant Voltage 110~240V 50/60Hz Technical characteristics Main input by the biggest box Photometric data Efficiency : 72.42 lm/W Coordination system : CG Total Flux : 4634.73 lm Maximum value : 427.37 cd/klm Structural 2645 Electrical characteristics Led 3000K CRI >90 0 lm 0 lm/W Driver included: CV - Constant Voltage 110~240V 50/60Hz Technical characteristics Main input by the biggest box Photometric data Efficiency : 69.34 lm/W Coordination system : CG Total Flux : 5200.43 lm Maximum value : 2251.45 cd Structural 2647 Electrical characteristics Led 3000K CRI >90 0 lm 0 lm/W Driver included: CV - Constant Voltage 110~240V 50/60Hz Technical characteristics Main input by the biggest box Photometric data Efficiency : 69.34 lm/W Coordination system : CG Total Flux : 5200.43 lm Maximum value : 2251.45 cd The Structural lighting collection designed by Arik Levy for Vibia is based on the combination of cubic volumes that together create integrated sculptures within the architecture of the spaces were they are provided. Through the playful combination of direct and indirect lighting Structural provides a powerful magical light that bathes walls and other surfaces with an intense lighting effect. Structural deconstructs the light sources and integrates them with the architecture, placing the light in unexpected locations while generating impressive compositions of elements. The different elements of the collection that includes sconce, ceiling lamps, wall-wall lamps and wall-ceiling lamps provide subtle variations in lighting effects. New and unexpected configurations are made possible. The light can be introduced to the corners of a room or the junctions of perpendicular planes between wall and ceiling surfaces. The LED light sources are accommodated within aluminium boxes, providing an intense light that avoids glare. The volumes are connected together by square section metal profiles that allow the sources to be separated in space and form an integral part of the overall composition. There are three finishes available: white, graphite and cream. Light sculptures that become integrated with the architecture. Structural could only have been designed by the magnificent teaming of Arik Levy and Vibia.
