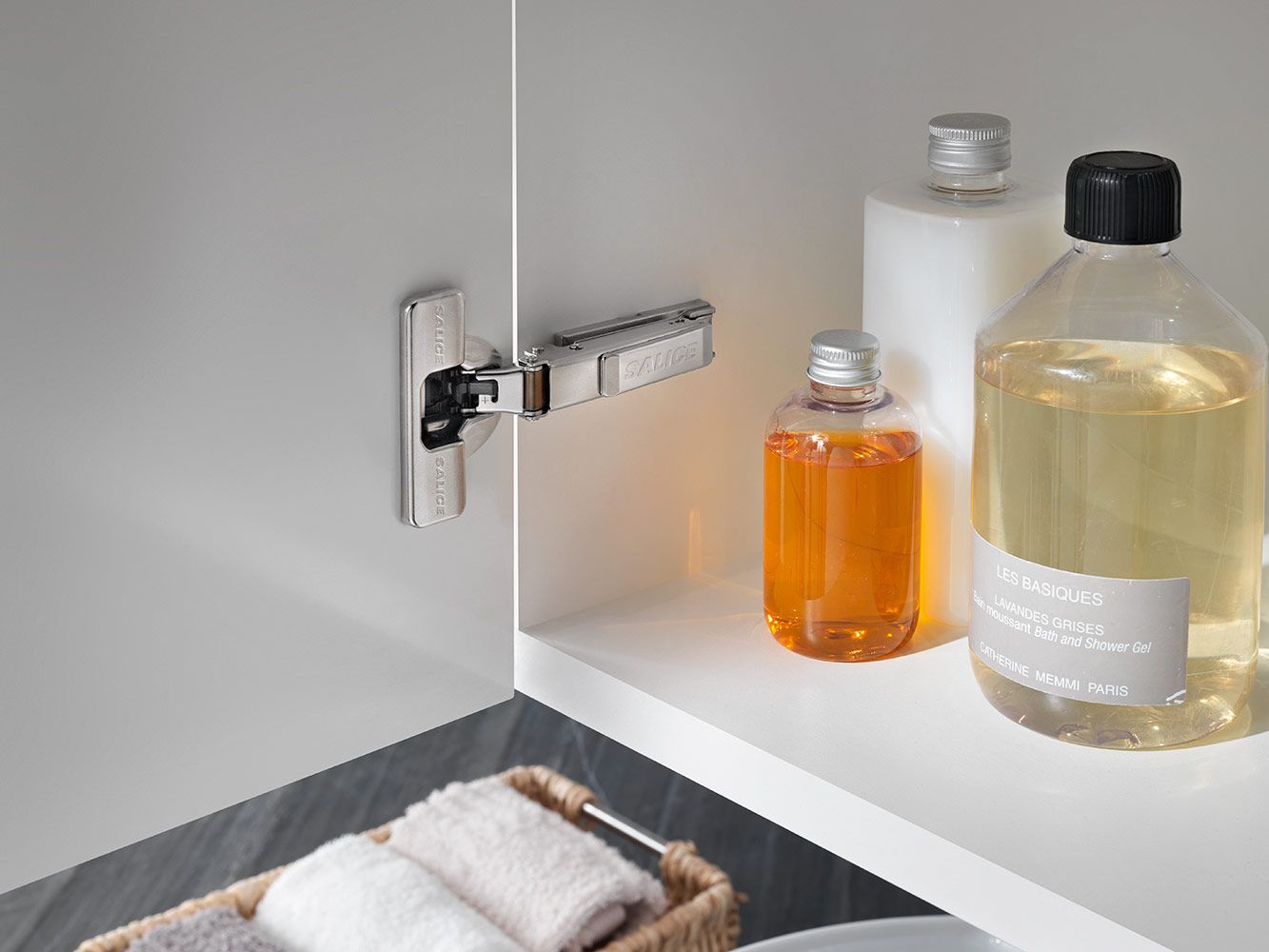

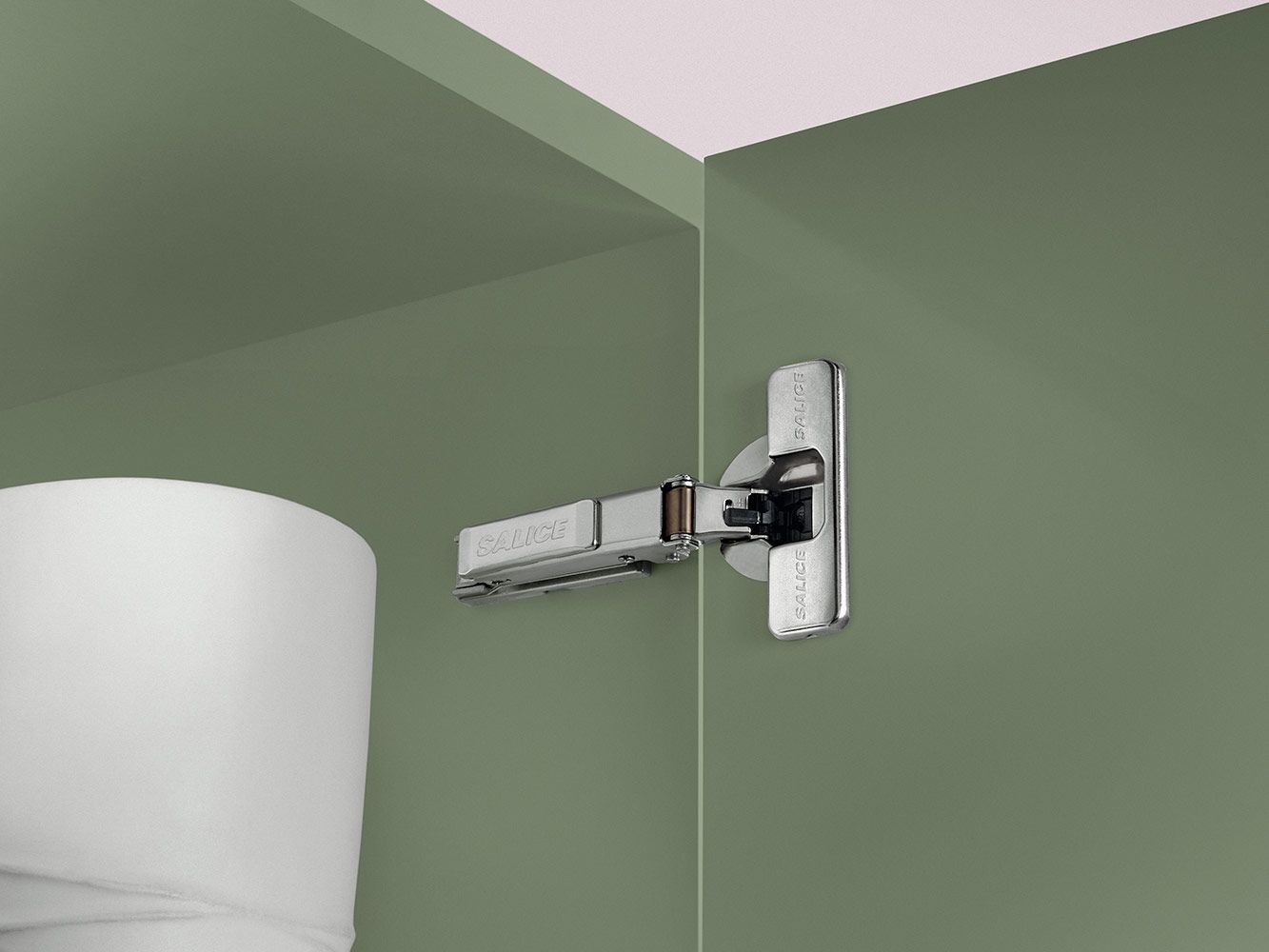

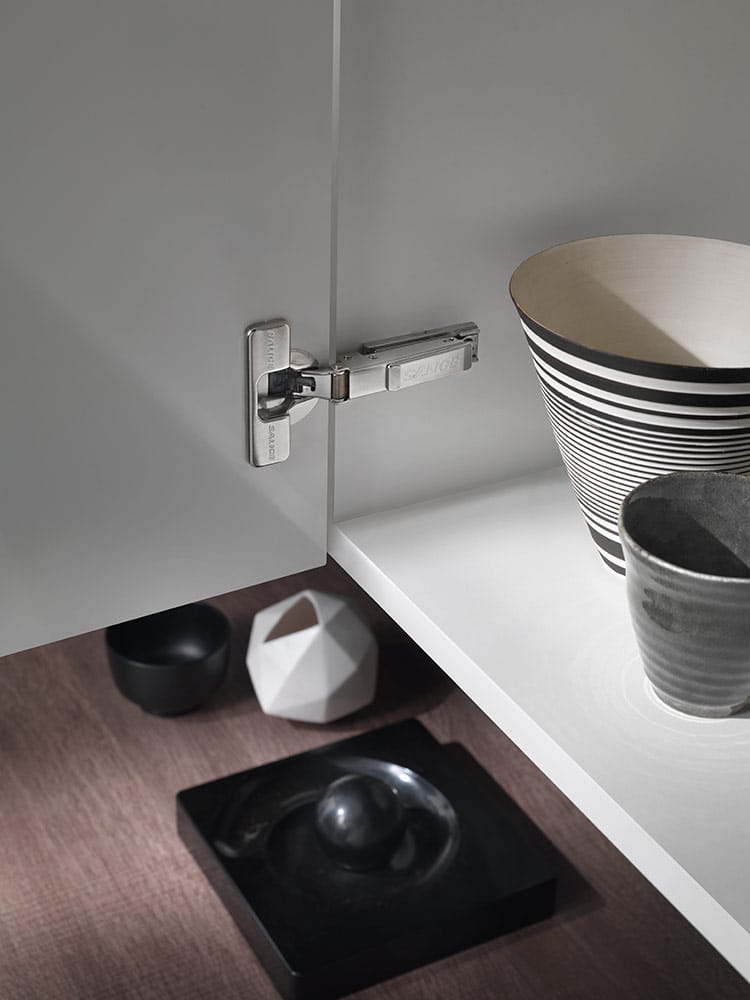

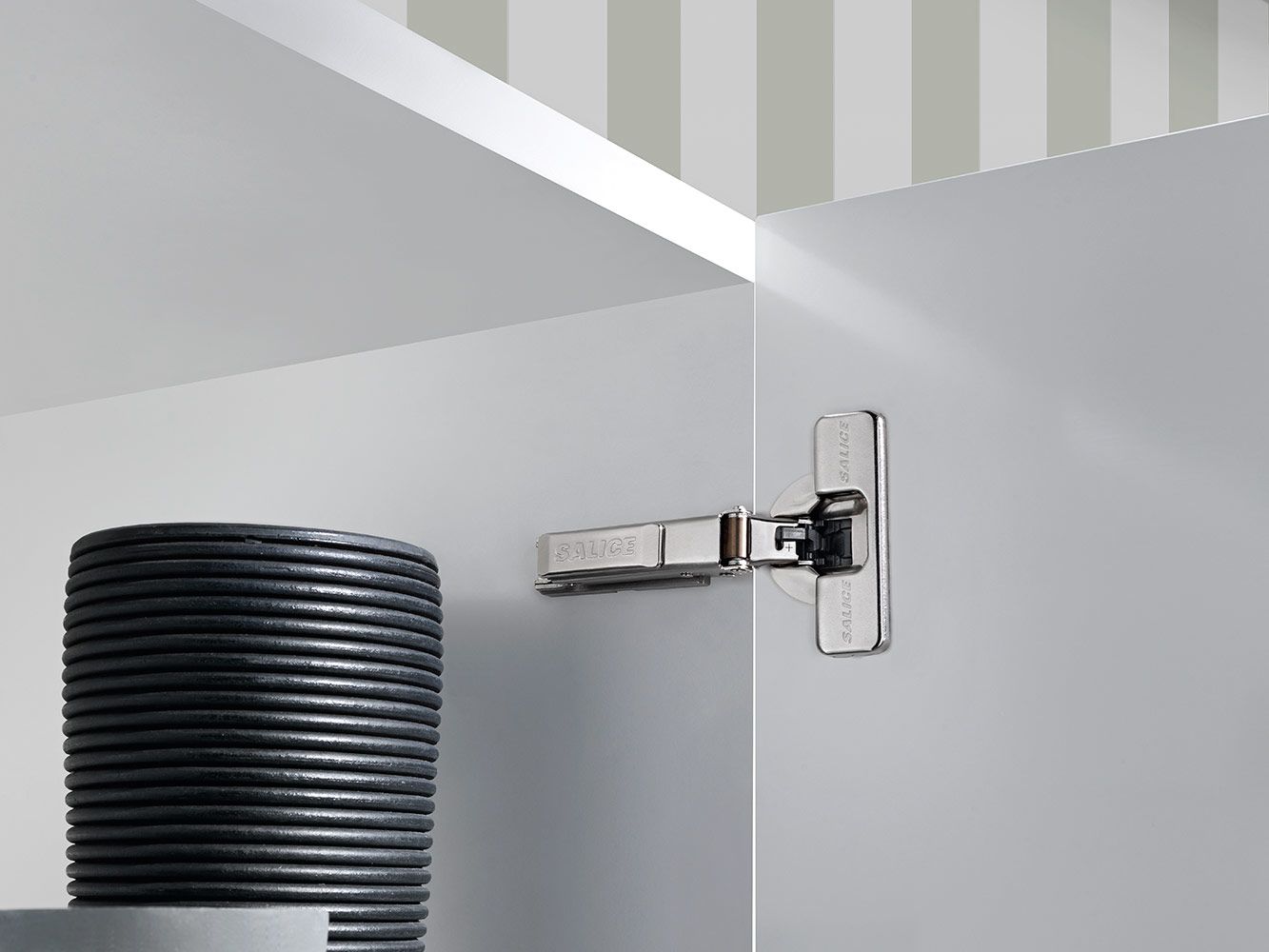

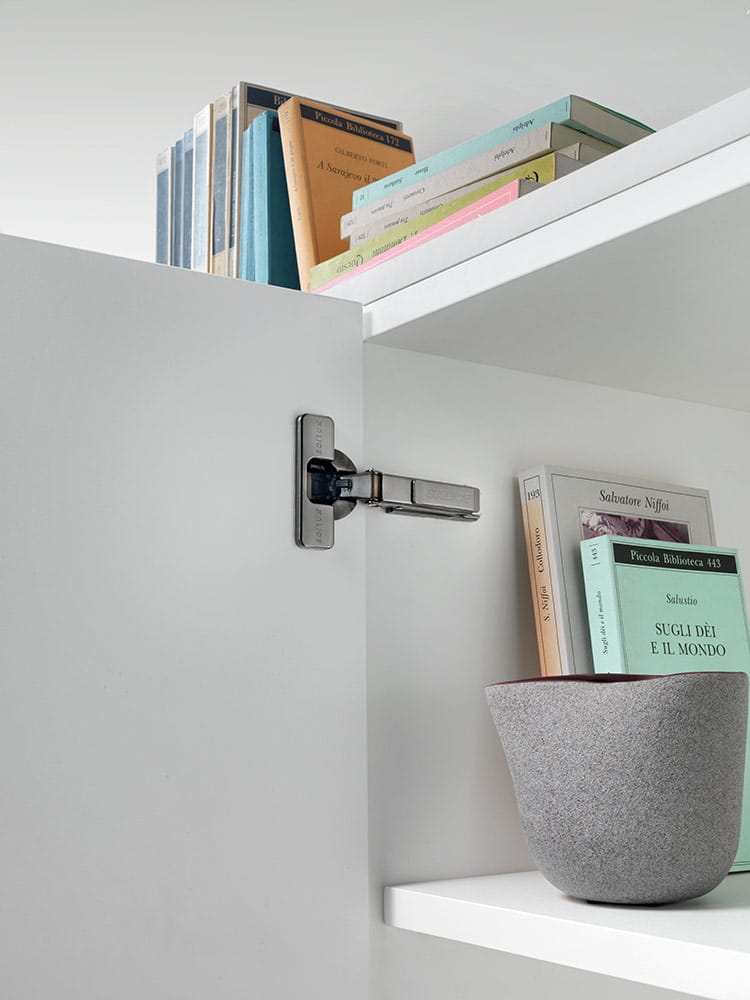

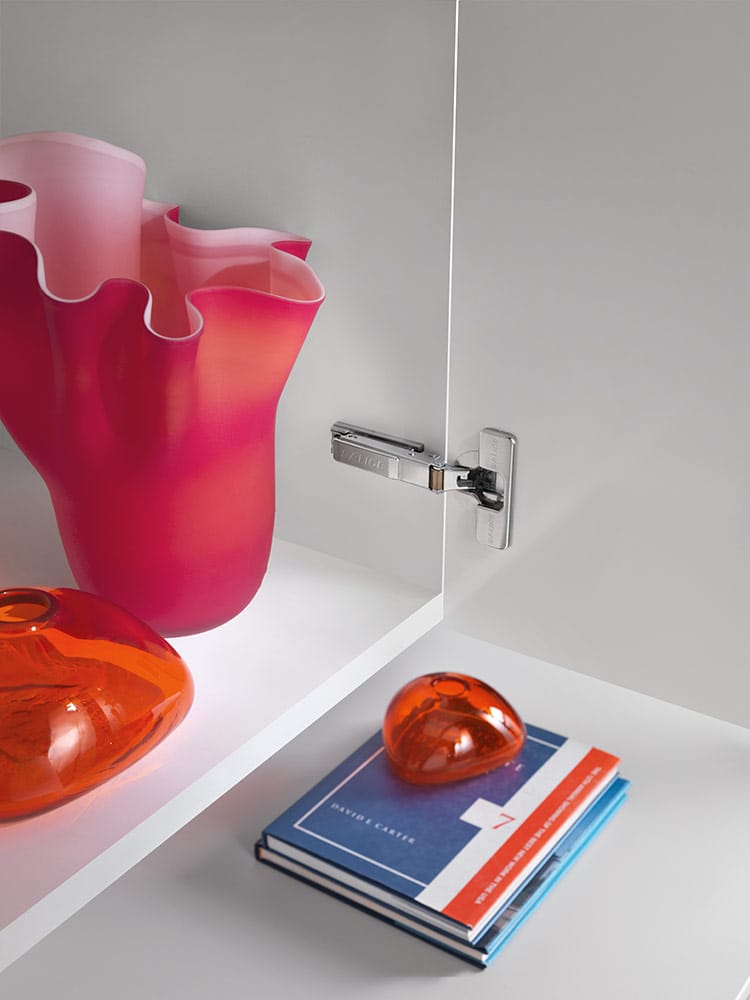

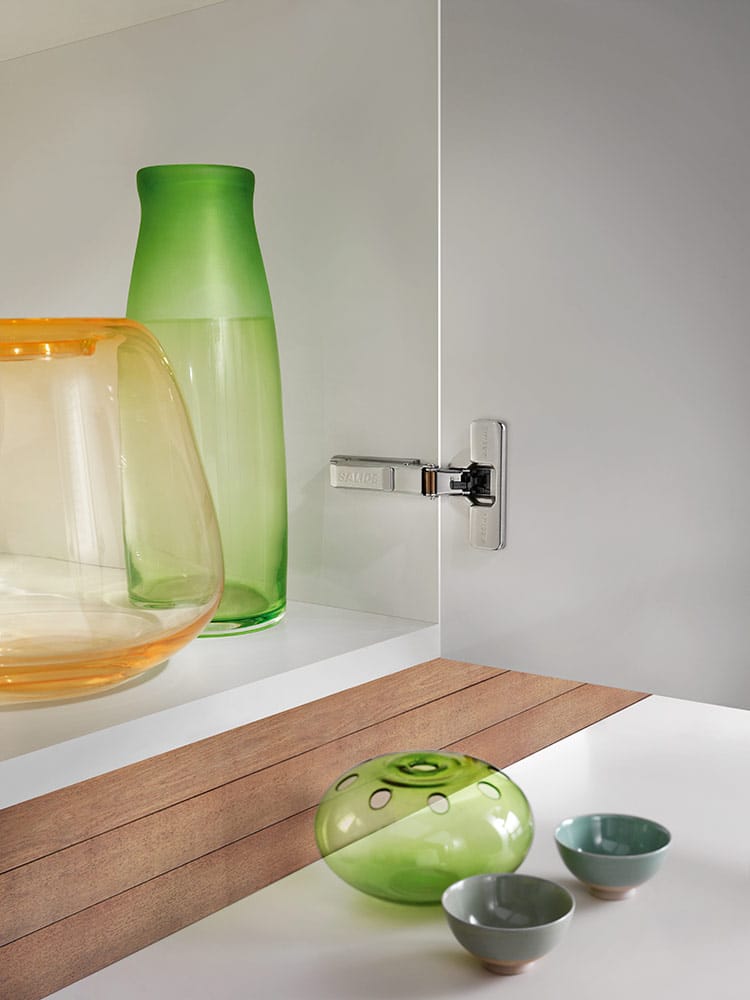

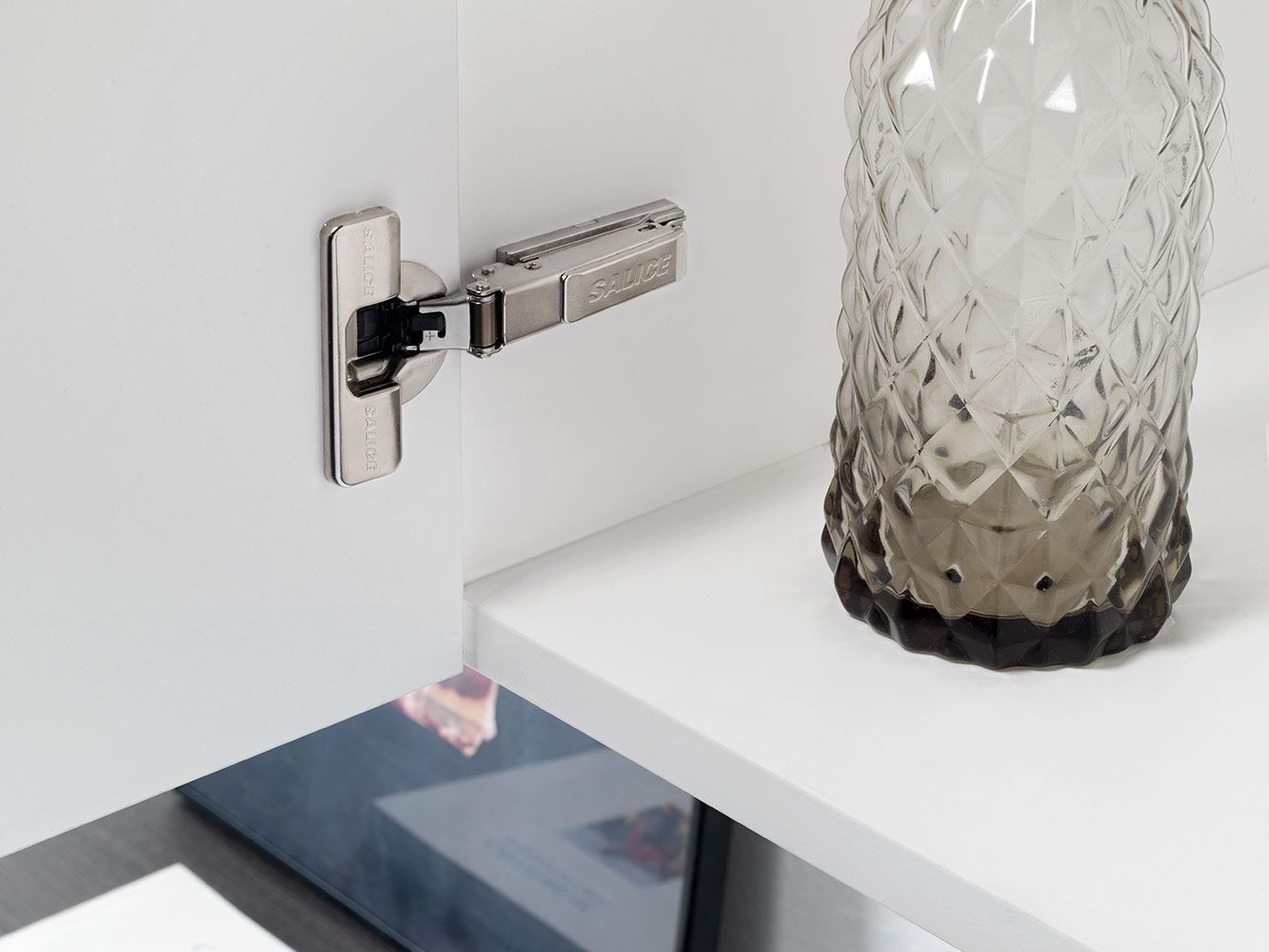

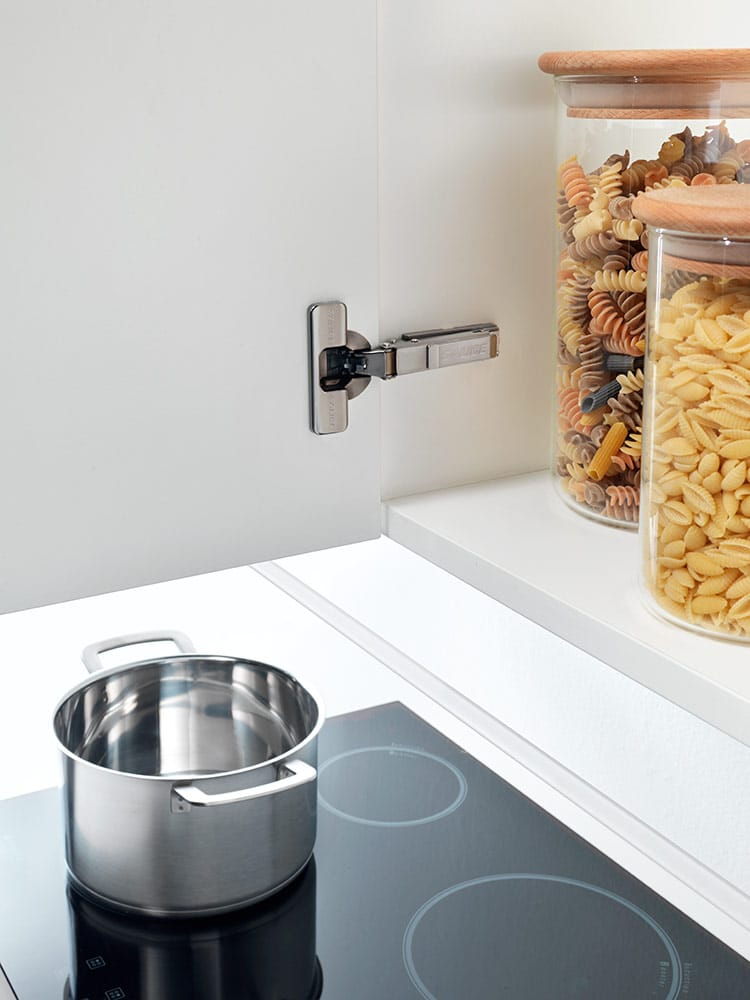

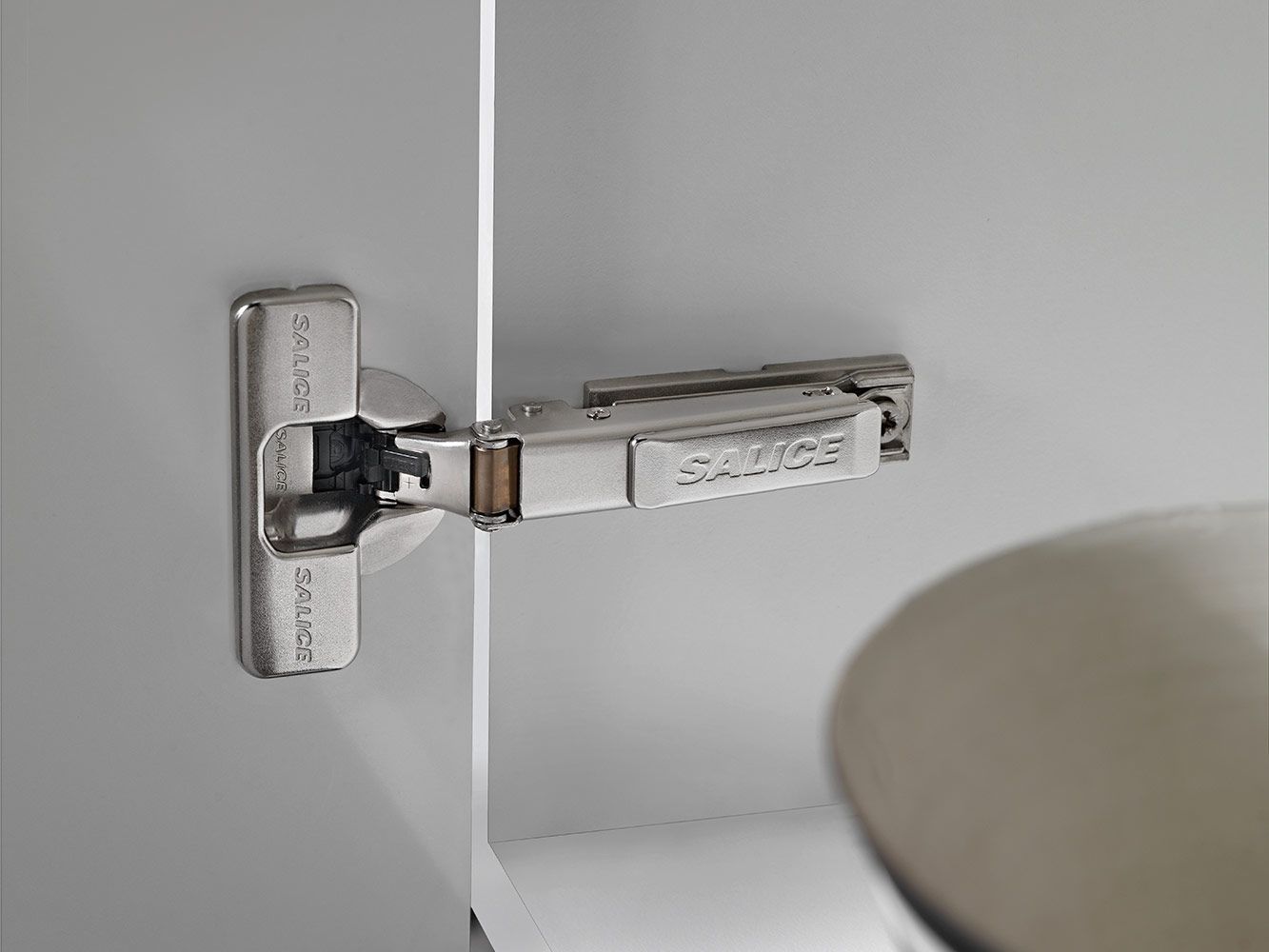

SILENTIA+ SERIE 700 By SALICE
Manufacture year: 2017
Type: Cushioned Cabinet Hinge
Series 700 - 110° opening - standard-application - Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup. - The decelerating effect is adjusted by using a simple switch. - Dimensions of the Ø 35 mm cup. - Hinges for min. 16 mm thick doors. - 13.5 mm deep cup. - 110° opening. - Possible drilling distance on the door (K): from 3 to 6 mm. - Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates. Series 700 - 110° opening - positive angled application - Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup. - The decelerating effect is adjusted by using a simple switch. - For wooden doors with positive angled assembly. - Dimensions of the Ø 35 mm cup. - Hinges for min. 16 mm thick doors. - 13.5 mm deep cup. - 110° opening. - Possible drilling distance on the door (K): from 3 to 6 mm. - Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates. Series 700 - 110° opening - negative angled application - Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup. - The decelerating effect is adjusted by using a simple switch. - For wooden doors with negative angled assembly. - Dimensions of the Ø 35 mm cup. - Hinges for min. 16 mm thick doors. - 13.5 mm deep cup. - 110° opening. - Possible drilling distance on the door (K): from 3 to 6 mm. - Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates. Series 700 - 110° opening - crampon hinge - Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup. - The decelerating effect is adjusted by using a simple switch. - Hinges for min. 16 mm thick doors. - Dimensions of the Ø 35 mm cup. - 13.5 mm deep cup. - 110° opening. - Possible drilling distance on the door (K): from 3 to 6 mm. Silentia+ allows a perfect and constant closing of the door in any condition, use and application. The innovative soft-close technology guarantees excellent performances to the complete range of hinges. Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation. Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
