SILENTIA+ SERIE 200


Description

Overview

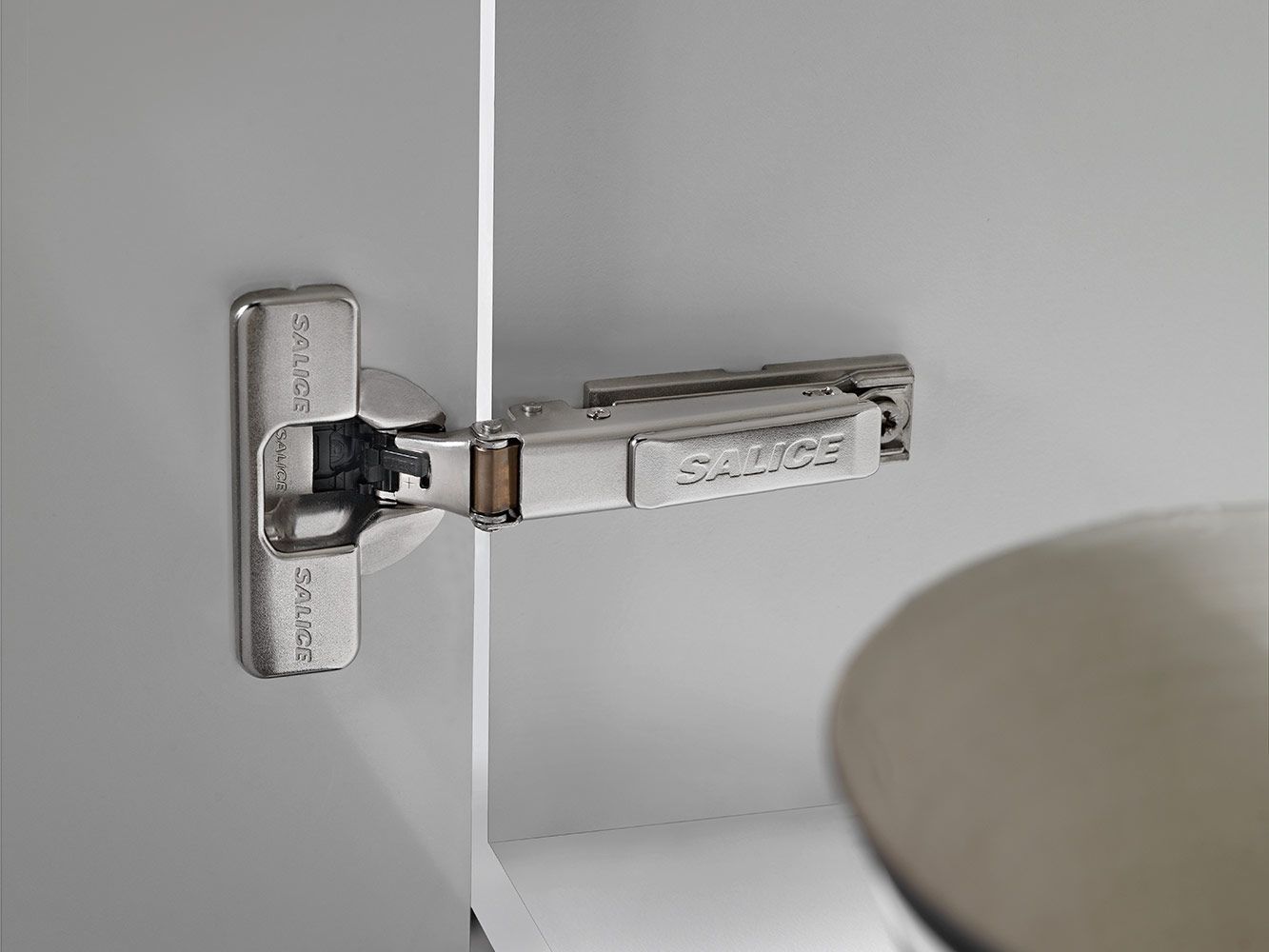

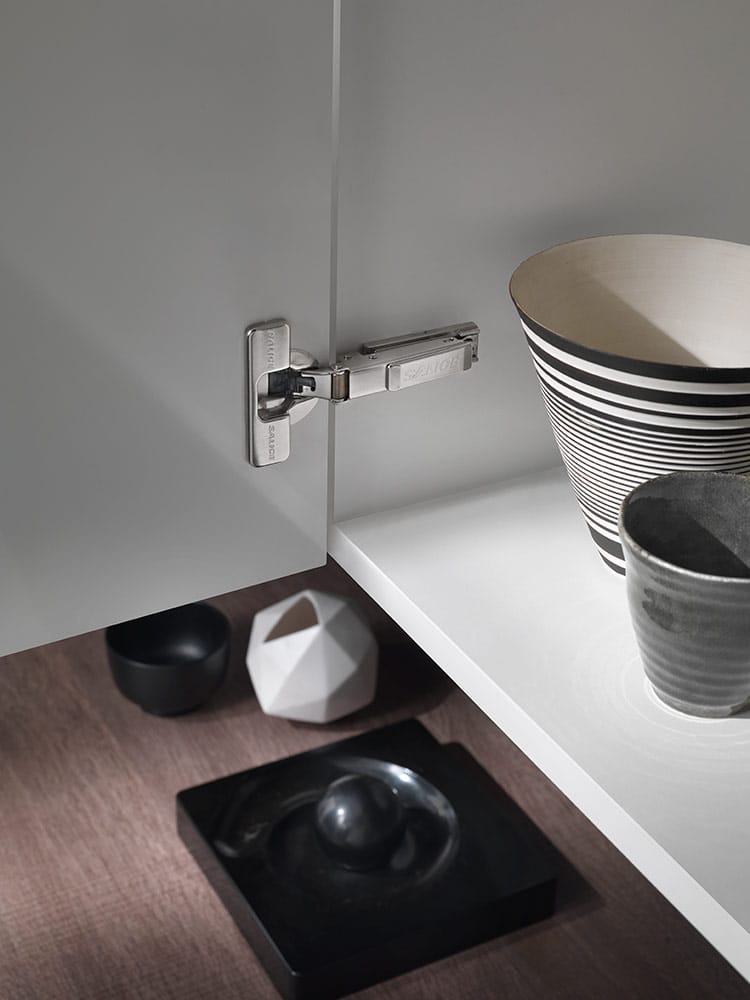

SILENTIA+ SERIE 200 By SALICE

Manufacture year: 2017

Type: Cushioned Cabinet Hinge

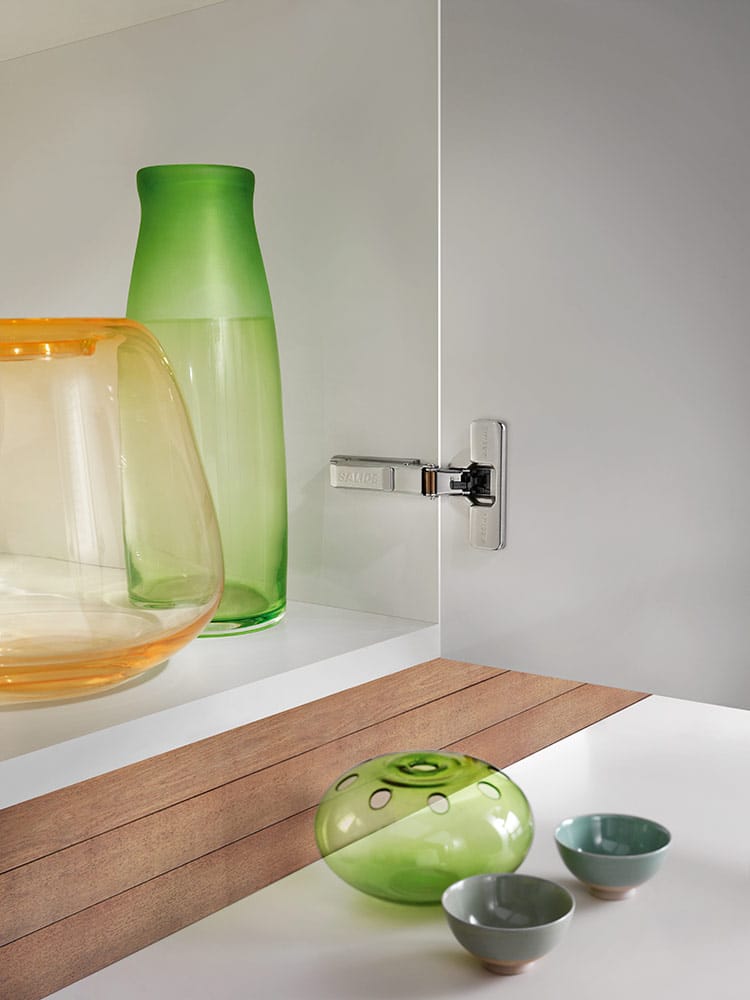

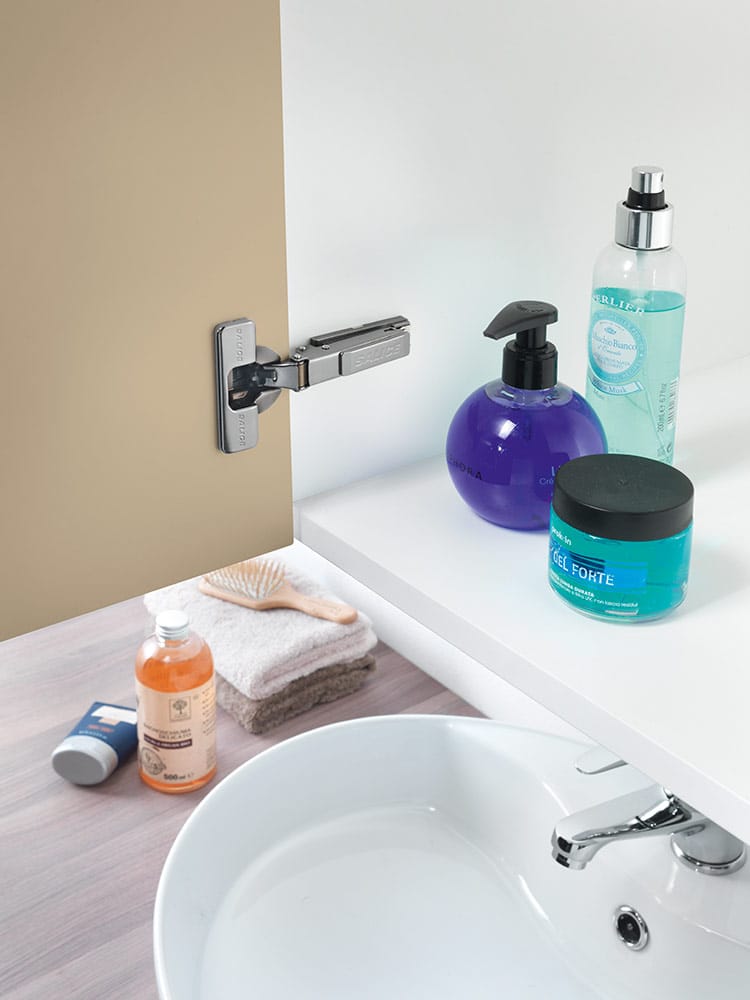

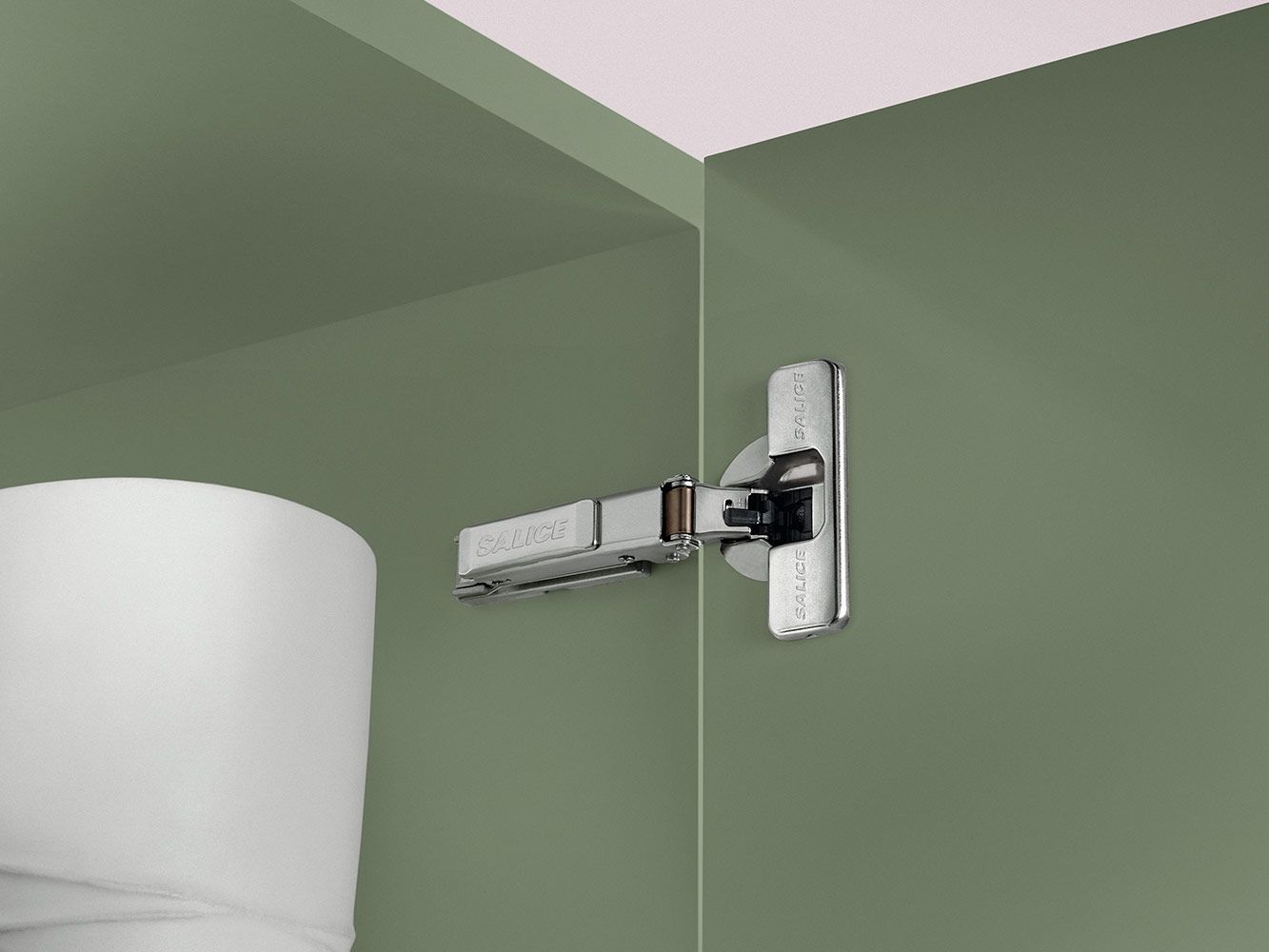

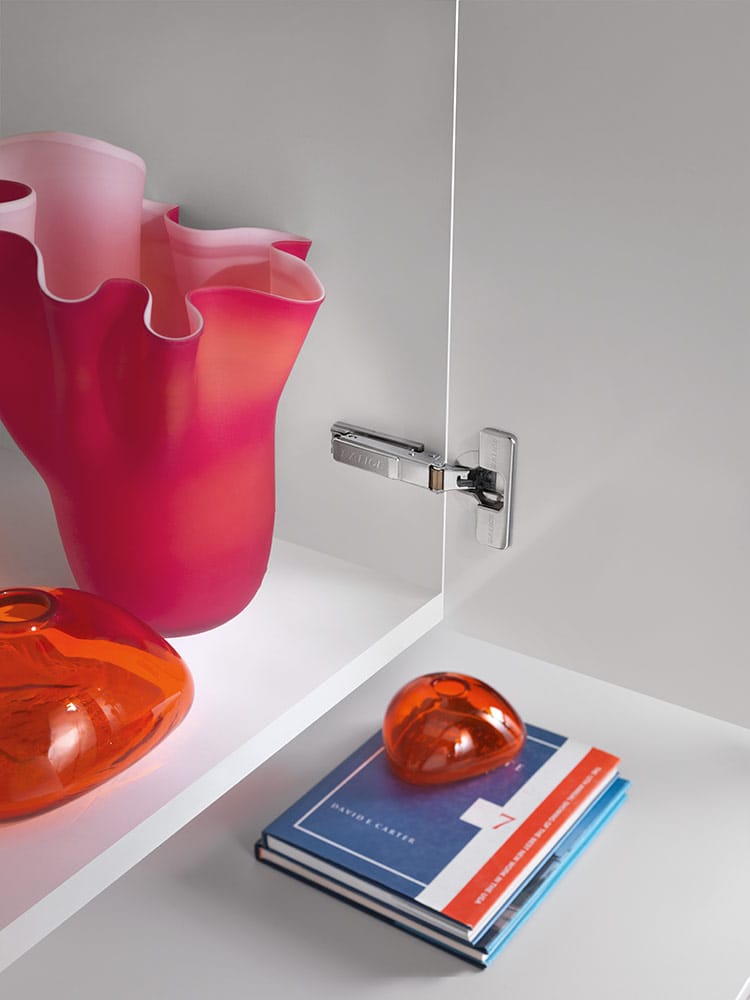

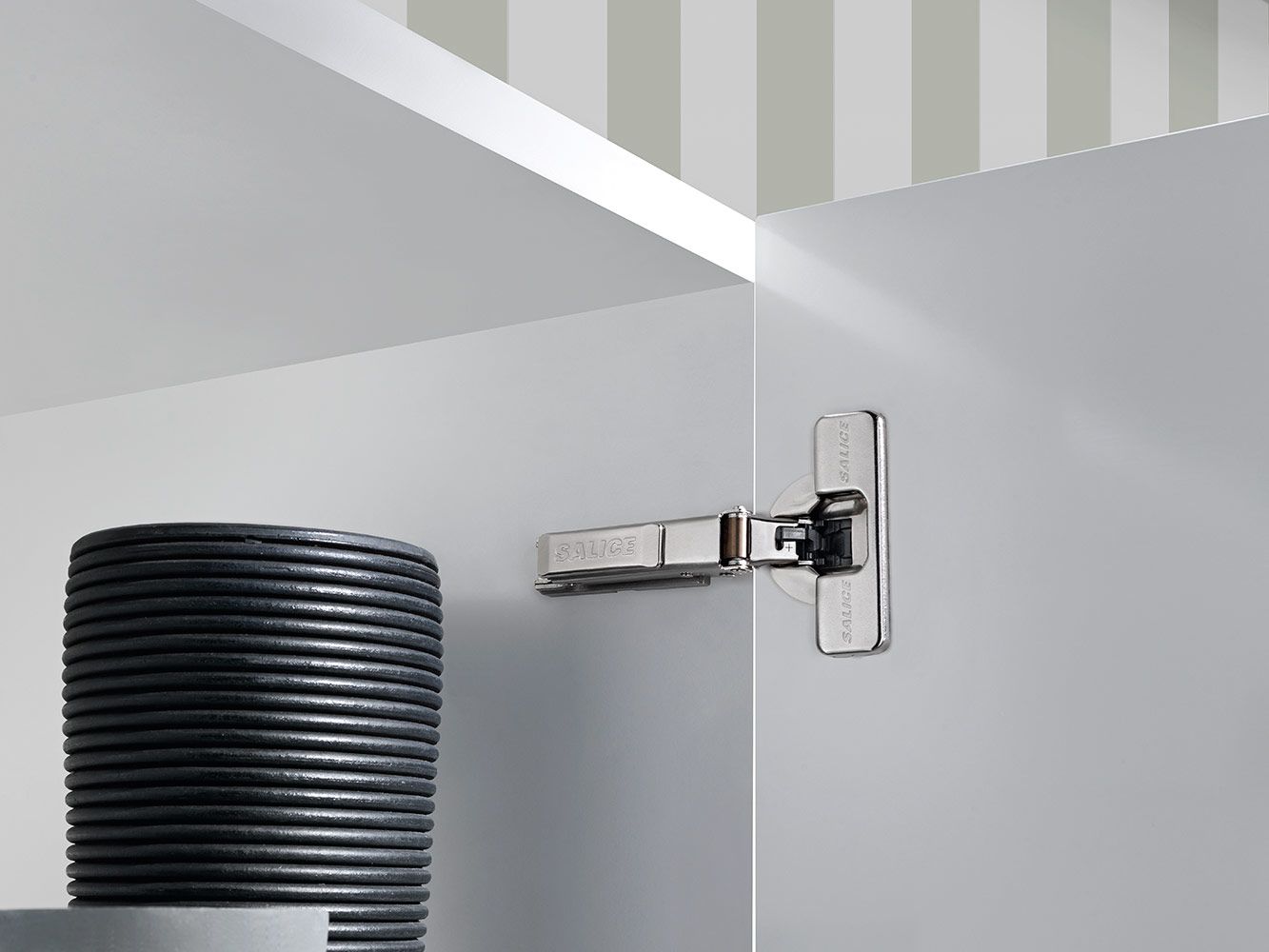

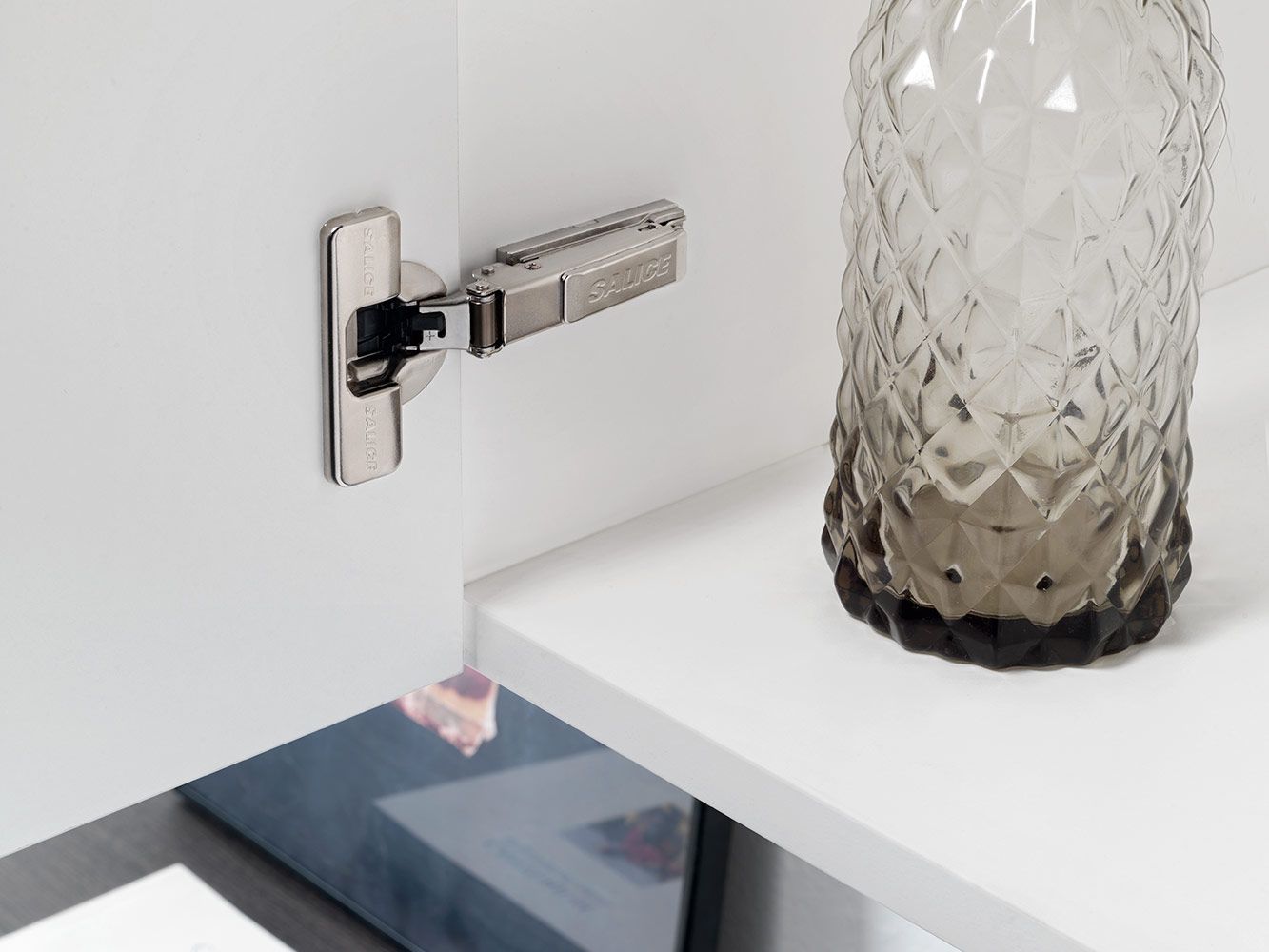

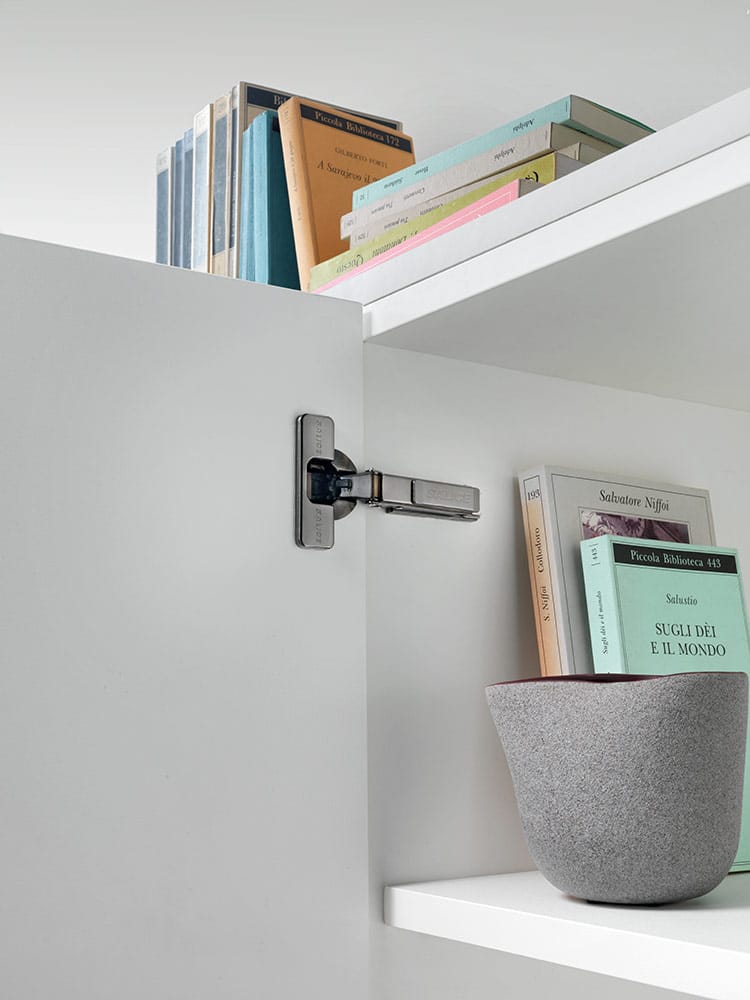

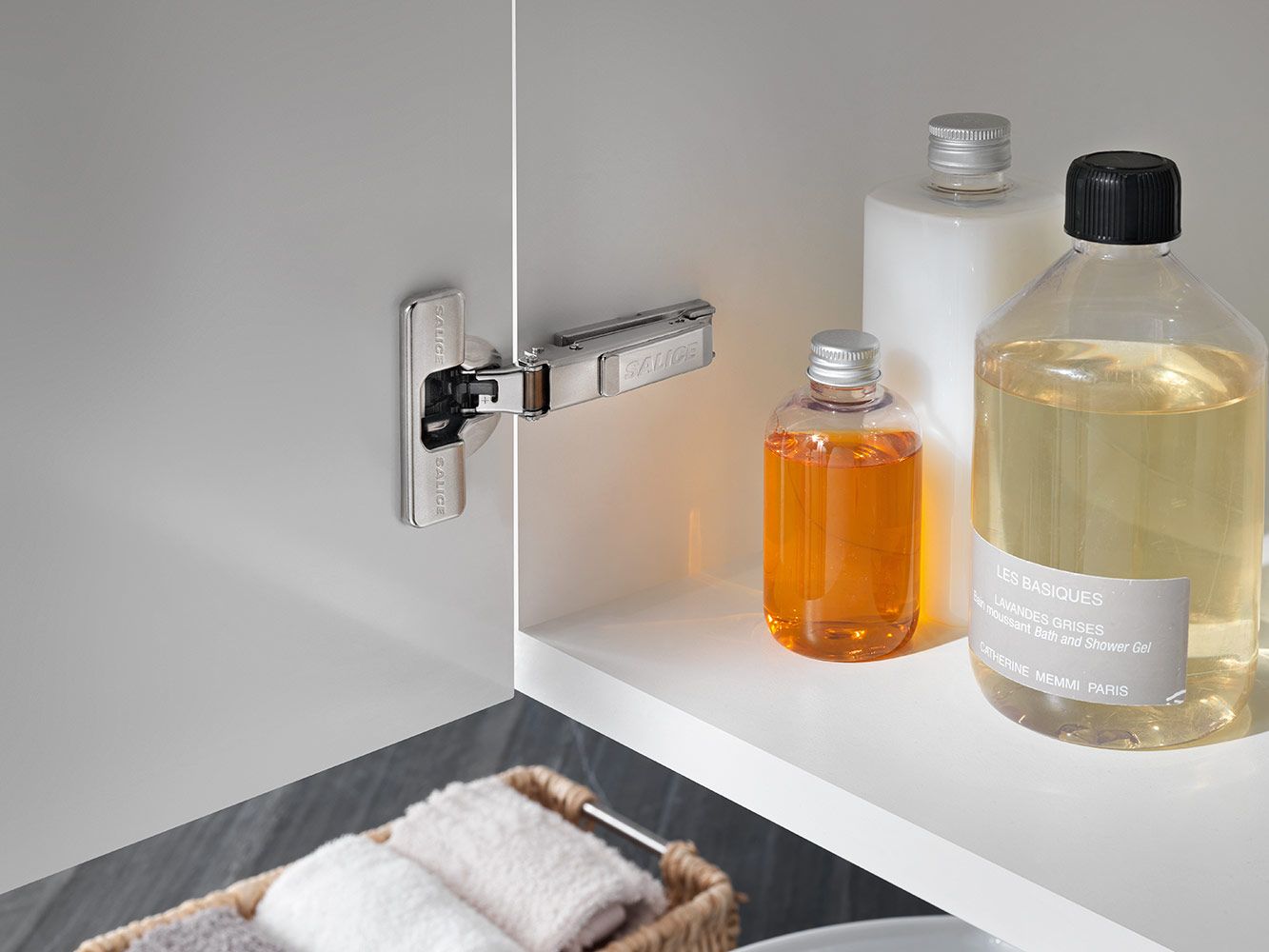

Series 200 - 94° opening - standard application - Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.‎ - The decelerating effect is adjusted by using a simple switch.‎ - Hinges for min.‎ 18 mm thick doors.‎ - Dimensions of the Ø 35 mm cup.‎ - 15.‎5 mm deep cup.‎ - 94° opening.‎ - Possible drilling distance on the door (K): from 3 to 9 mm.‎ - Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.‎ Series 200 - 155° opening - standard application - Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.‎ - The decelerating effect is adjusted by using a simple switch.‎ - Hinges for thick doors 16 mm min.‎ - Hinge with greater opening angle and reduced operating profile.‎ - Dimensions of the Ø 35 mm cup.‎ - 13,5 mm deep cup.‎ - 155° opening.‎ - Possible drilling distance on the door (K): from 3 to 9 mm.‎ - Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.‎ Series 200 - 94° opening - positive angled application - Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.‎ - The decelerating effect is adjusted by using a simple switch.‎ - For wooden doors with positive angled assembly.‎ - Hinges for min.‎ 18 mm thick doors.‎ - Dimensions of the Ø 35 mm cup.‎ - 15.‎5 mm deep cup.‎ - 94° opening.‎ - Possible drilling distance on the door (K): from 3 to 9 mm.‎ - Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.‎ Series 200 - 94° opening - crampon hinge - Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.‎ - The decelerating effect is adjusted by using a simple switch.‎ - Hinges for min.‎ 18 mm thick doors.‎ - Dimensions of the Ø 35 mm cup.‎ - 15.‎5 mm deep cup.‎ - 94° opening.‎ - Possible drilling distance on the door (K): from 3 to 9 m.‎ Silentia+ allows a perfect and constant closing of the door in any condition, use and application.‎ The innovative soft-close technology guarantees excellent performances to the complete range of hinges.‎ Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.‎ Silentia+ is also equipped with the innovative switch to delay the decelerating action.‎ The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.‎
