SHOWERTEC LINEAR By PROFILITEC
Collection: Showertec
Manufacture year: 2021
Product code: STL-BS, STL-BL, STL-BV, STL-BL
Type: Stainless steel Drainage channel and part

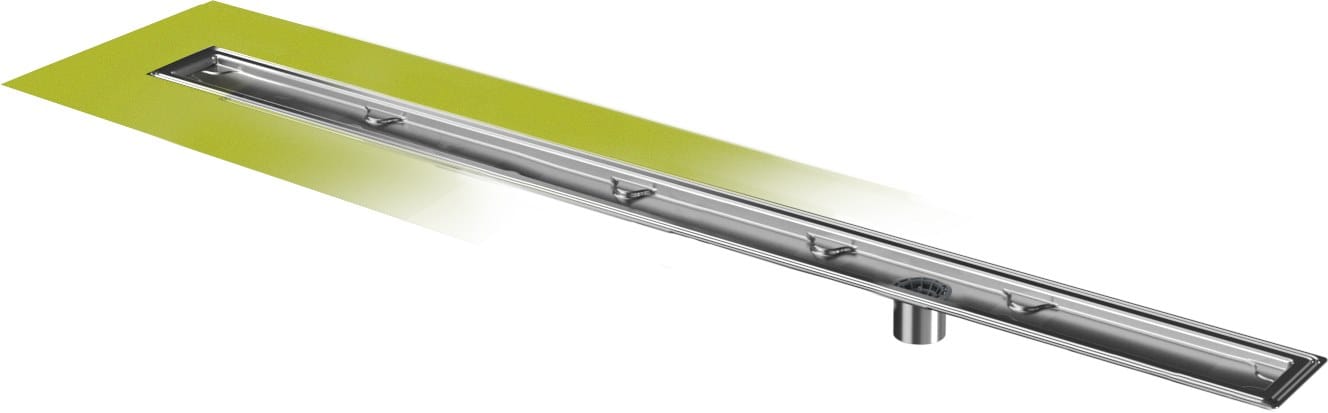

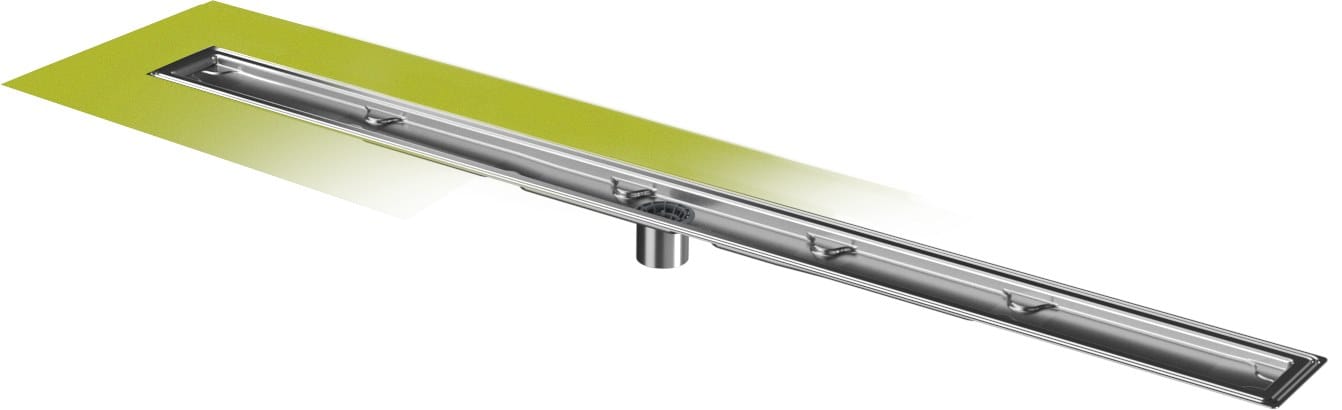

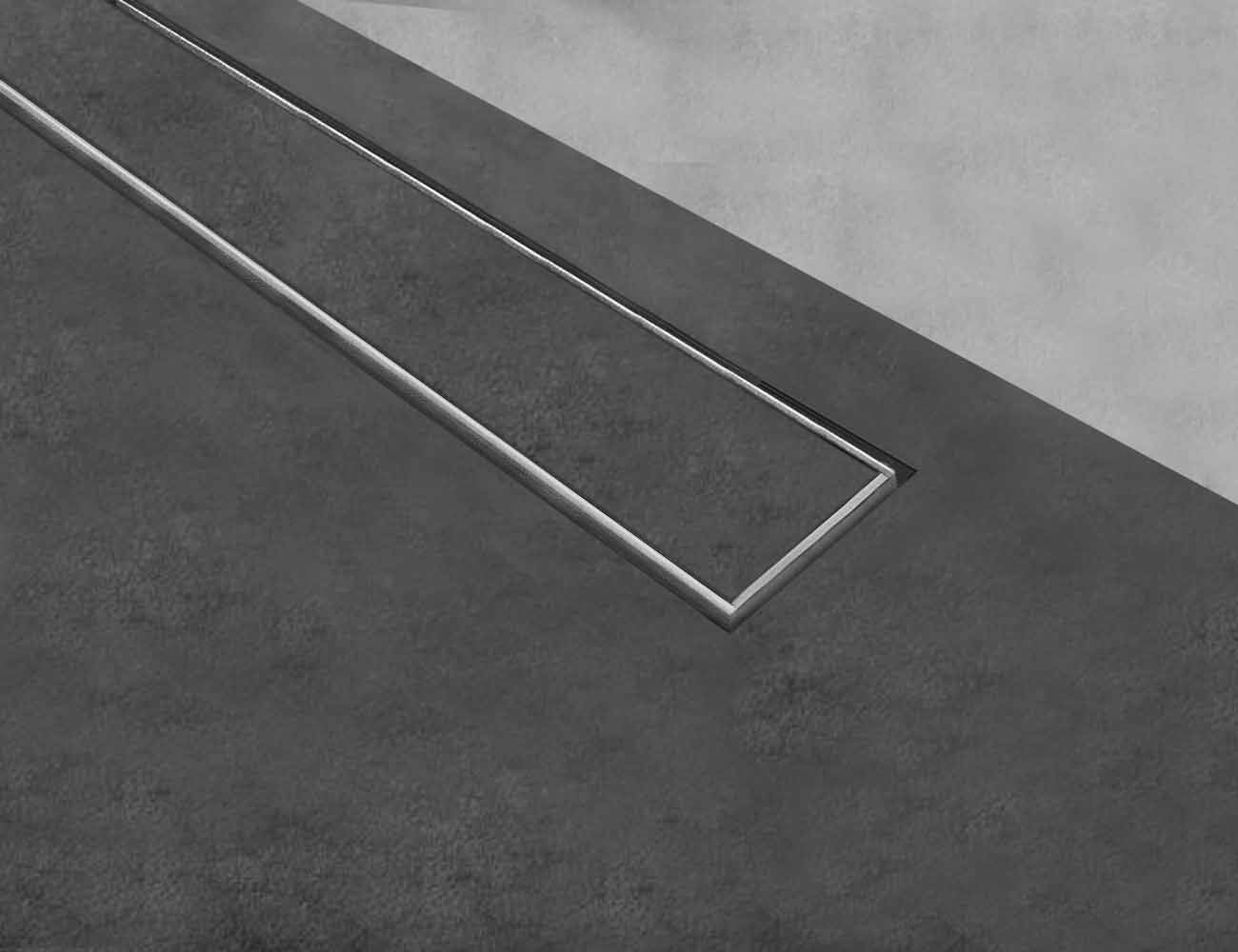

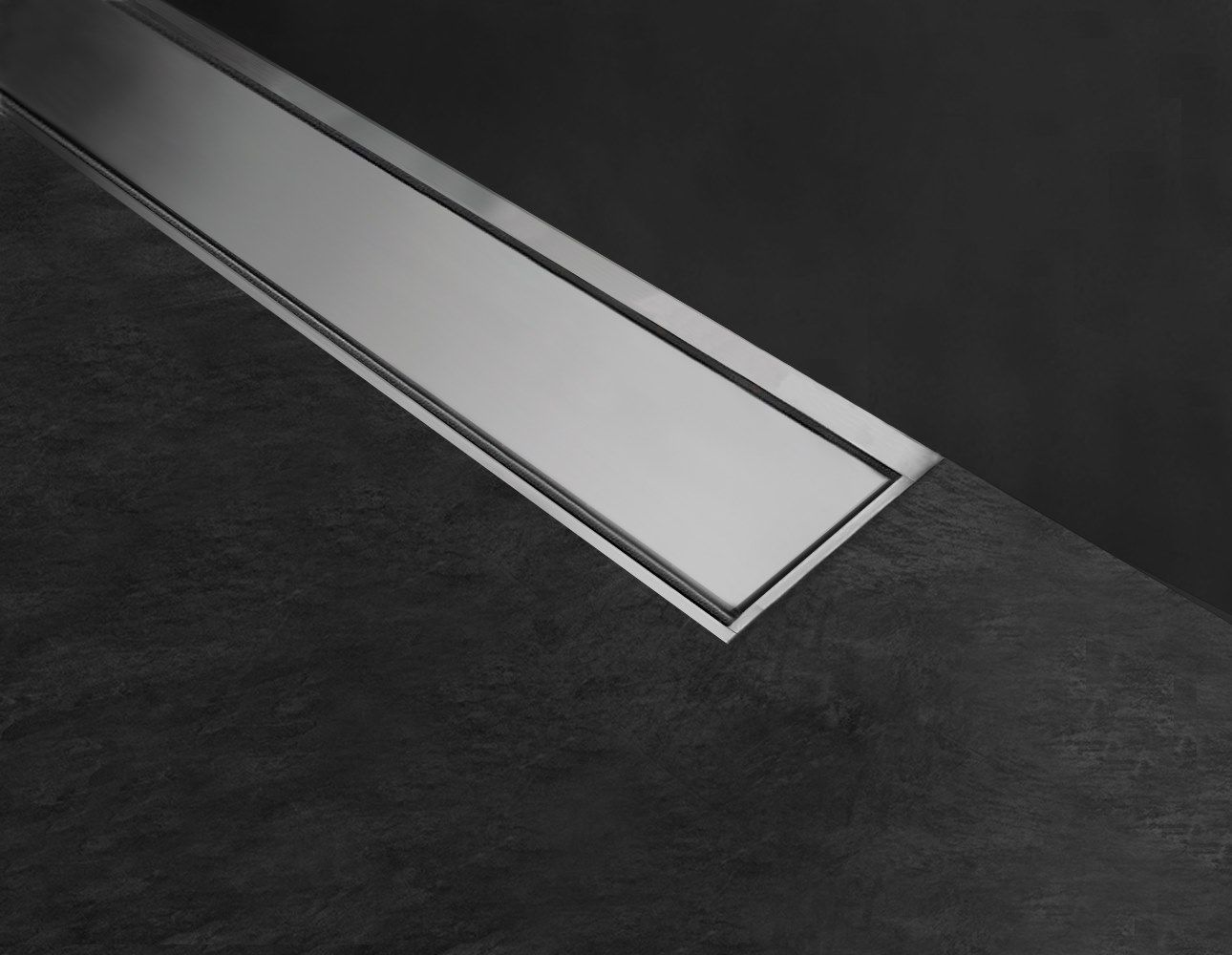

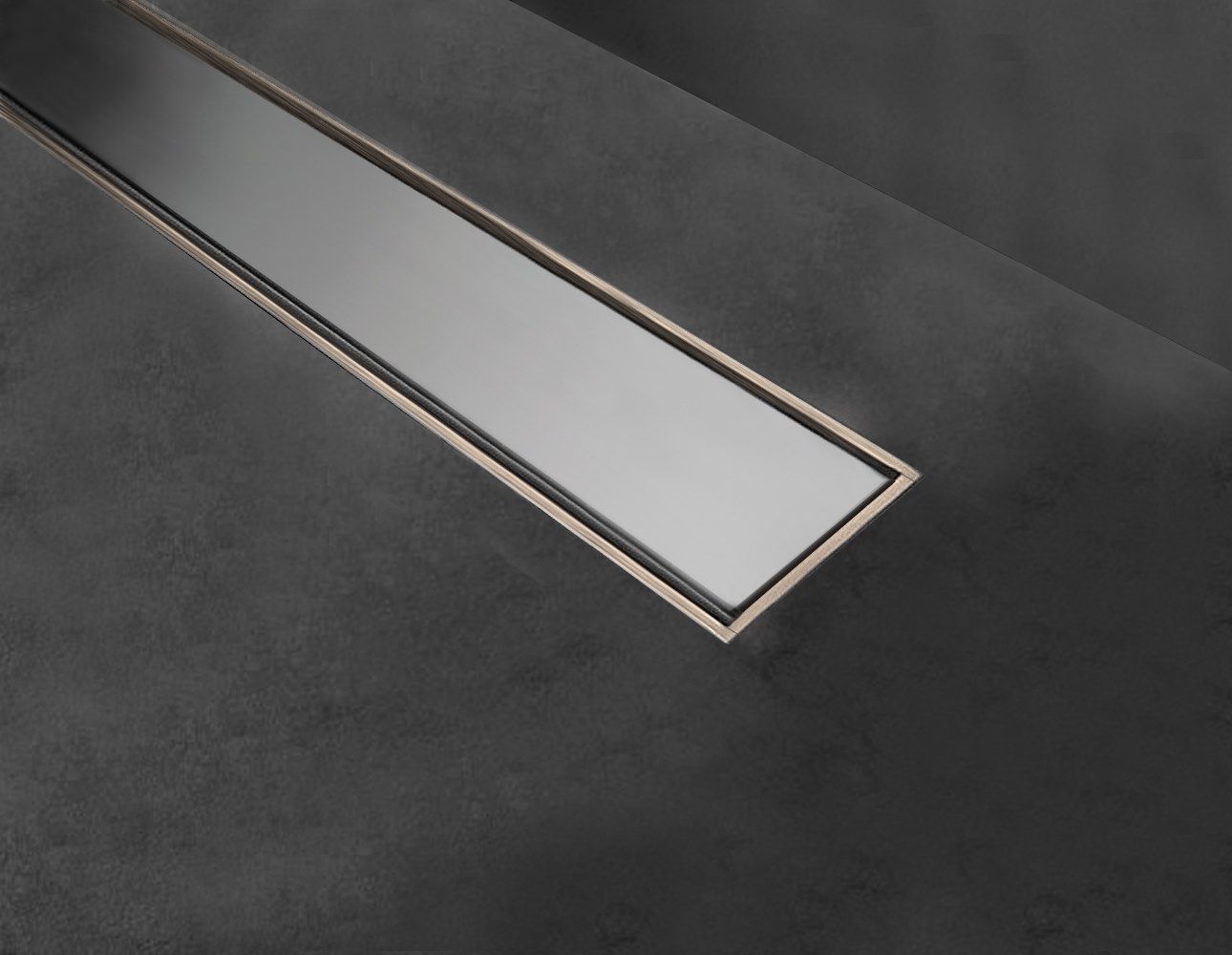

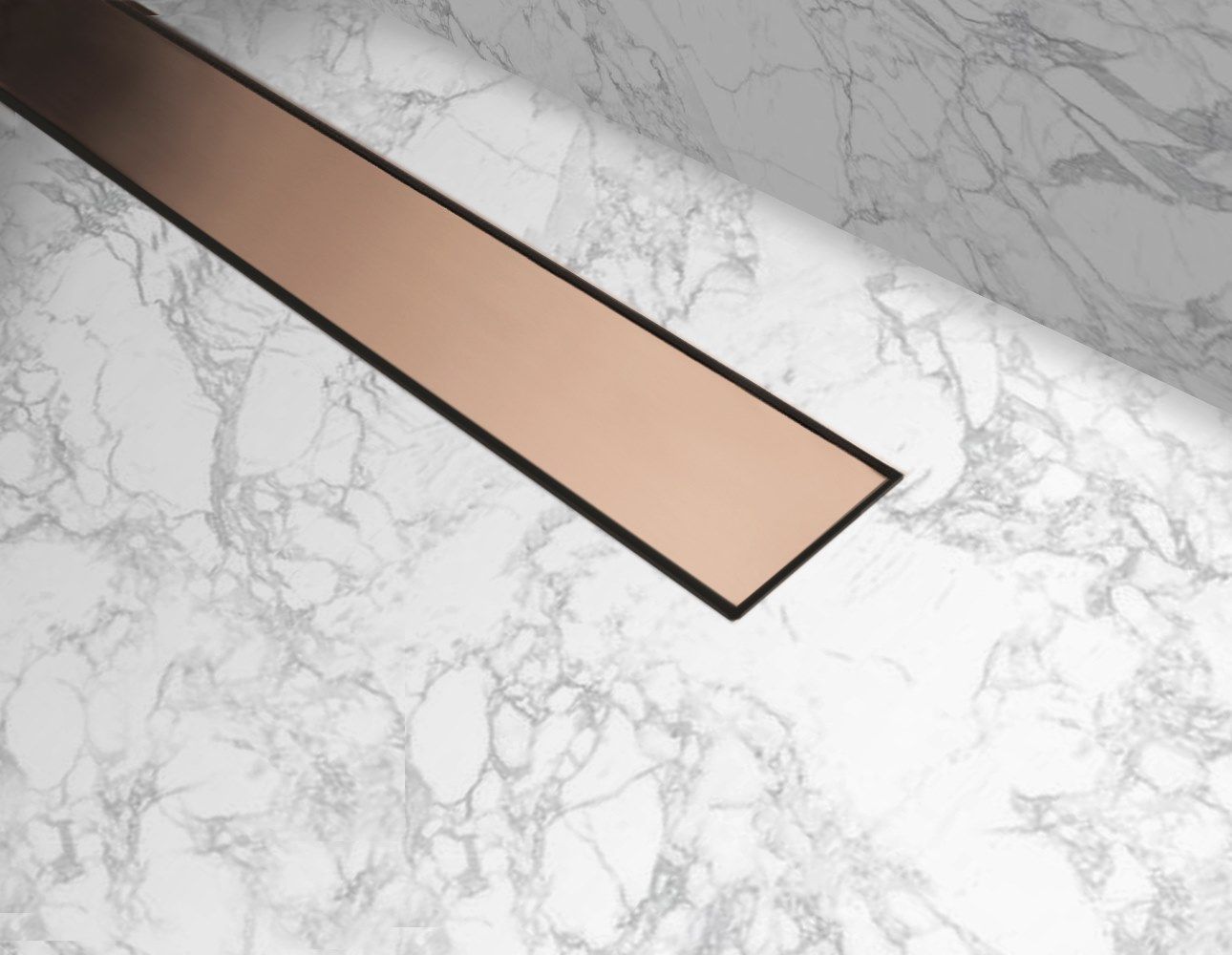

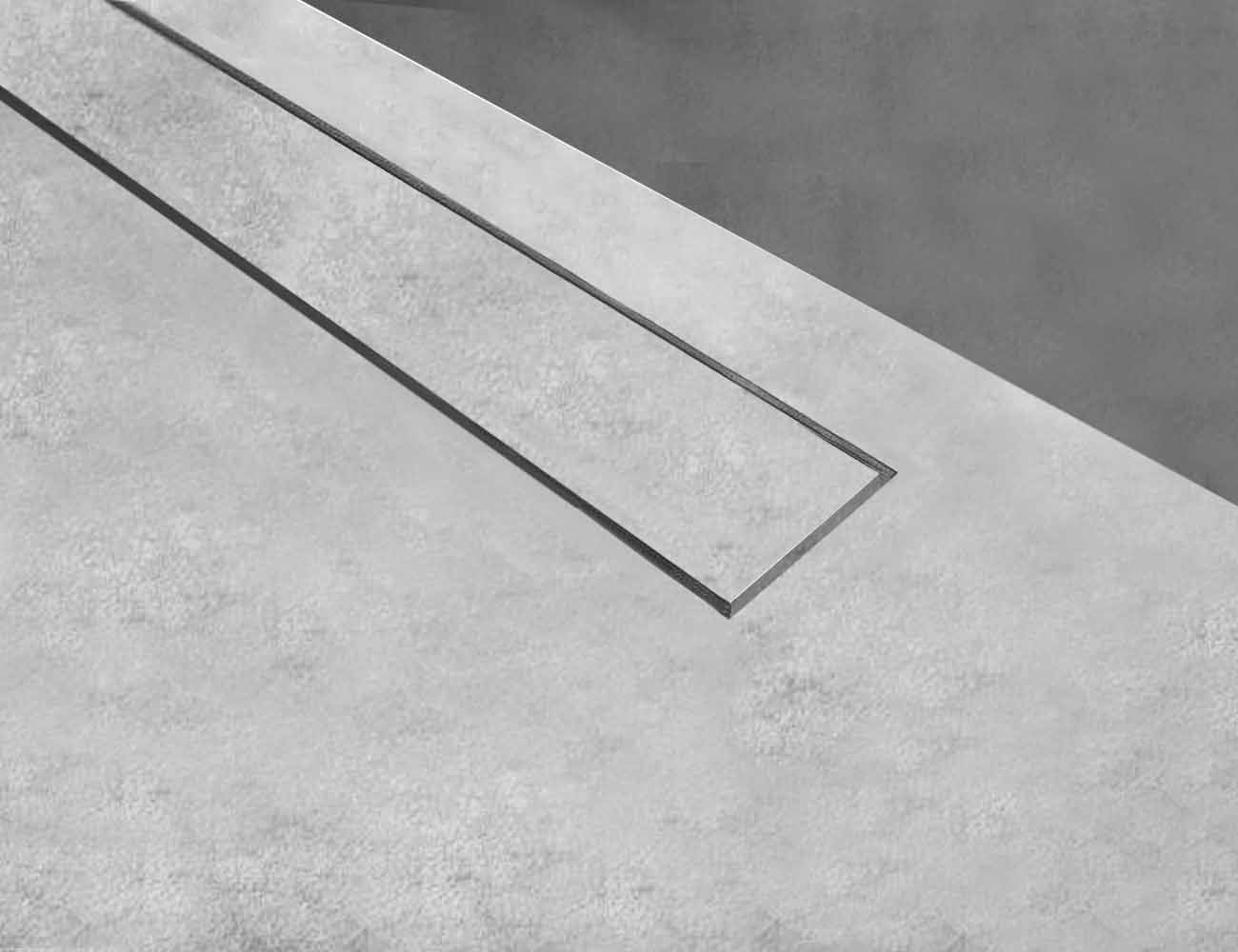

Linear channels with horizontal drainage (LOW and STANDARD height versions) and vertical drainage centred or off-centred. Linear channels with horizontal drainage, LOW and STANDARD height versions. Showertec STL - B are a family of 316 stainless steel linear channels for water drainage available in sizes 600-700-800-900-1000-1200 mm. Manufactured from a single piece of AISI 316 stainless steel, with no welded seams; they feature a siphon with horizontal PVC drain with a diameter of 40/50 mm and a footprint of only 56 mm for the LOW version (STL-BL) and 73 mm for the STANDARD version (STL-BS). The channel is supplied with the Foiltec waterproofing membrane pre-applied. The body, DRAIN, of the SHOWERTEC LINEAR system can be combined with different types of COVER (STL-CT, STL-CTF, STL-C ) and finishing frames to combine the functionality of the product with a unique aesthetics. Linear channels with vertical drainage Showertec STL - BV are a family of linear channels made of stainless steel 316 for water drainage available in sizes 600-700-800-900-1000-1200 mm. Manufactured from a single piece of seamless AIS 316 stainless steel, they feature a vertical drain without siphon with a diameter of 50 mm, making them compatible with the showertec STC-TRAY sloping and waterproofed trays. The channels are supplied with a Foiltec waterproofing membrane pre-applied, which allows them to be connected safely and quickly to the STL-TRAY sloping shower tray rather than to the shower surface made on site. The channel can be combined with different types of COVER (STL-CT, STL-CTF, STL-C ) and finishing frames to combine the functionality of the product with unique aesthetics. The management of wastewater in indoor or outdoor environments is a key element in both the design and life of a building, and involves both technical issues and aesthetic choices. Linear Showertec is a modular shower system that allows you to combine different elements to create the best solution for virtually any type of tiled walk-in shower. This range removes the last barrier in the modern bathroom: by freeing the shower space from standard dimensions and concepts, it allows you to expand your aesthetic possibilities with previously unimaginable choice and customisation. Thanks to a series of low installation channels, with horizontal or vertical drainage, covers and frames in a variety of finishes, materials, shapes, colours and combinations, as well as a series of pre-sloped trays ready to be tiled, projects can be realised that fuse high-level functionality and avant-garde design. The range of sloping shower profiles is designed to realise a profound attention to detail in the shower area, complementing the Linear Showertec system but not limited to it. There are profiles in different shapes, finishes and functionalities for every need and guarantee the perfect completion of the environment.
