QUICKSUN By Ravaioli Legnami
Type: Wooden solar shading

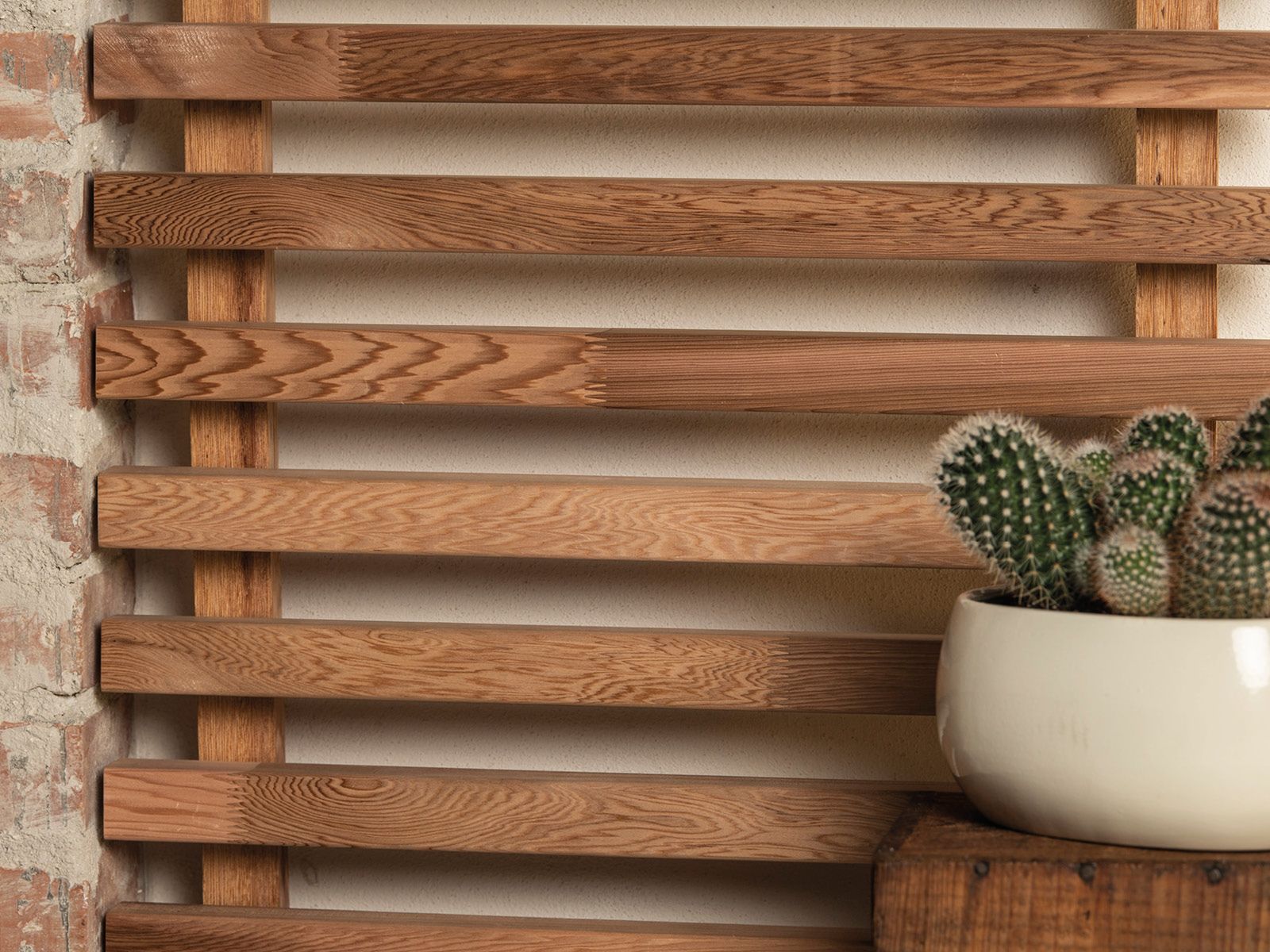

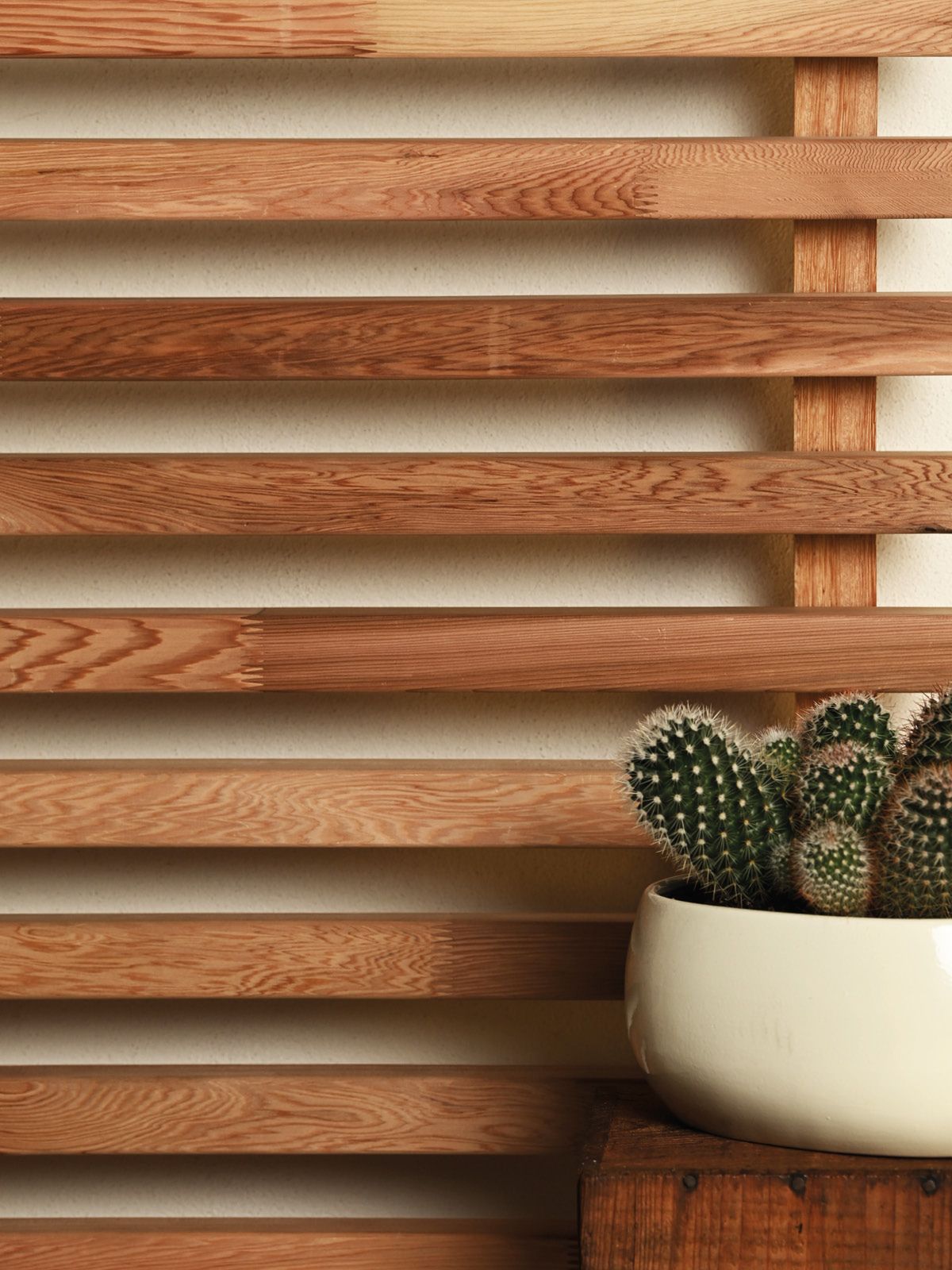

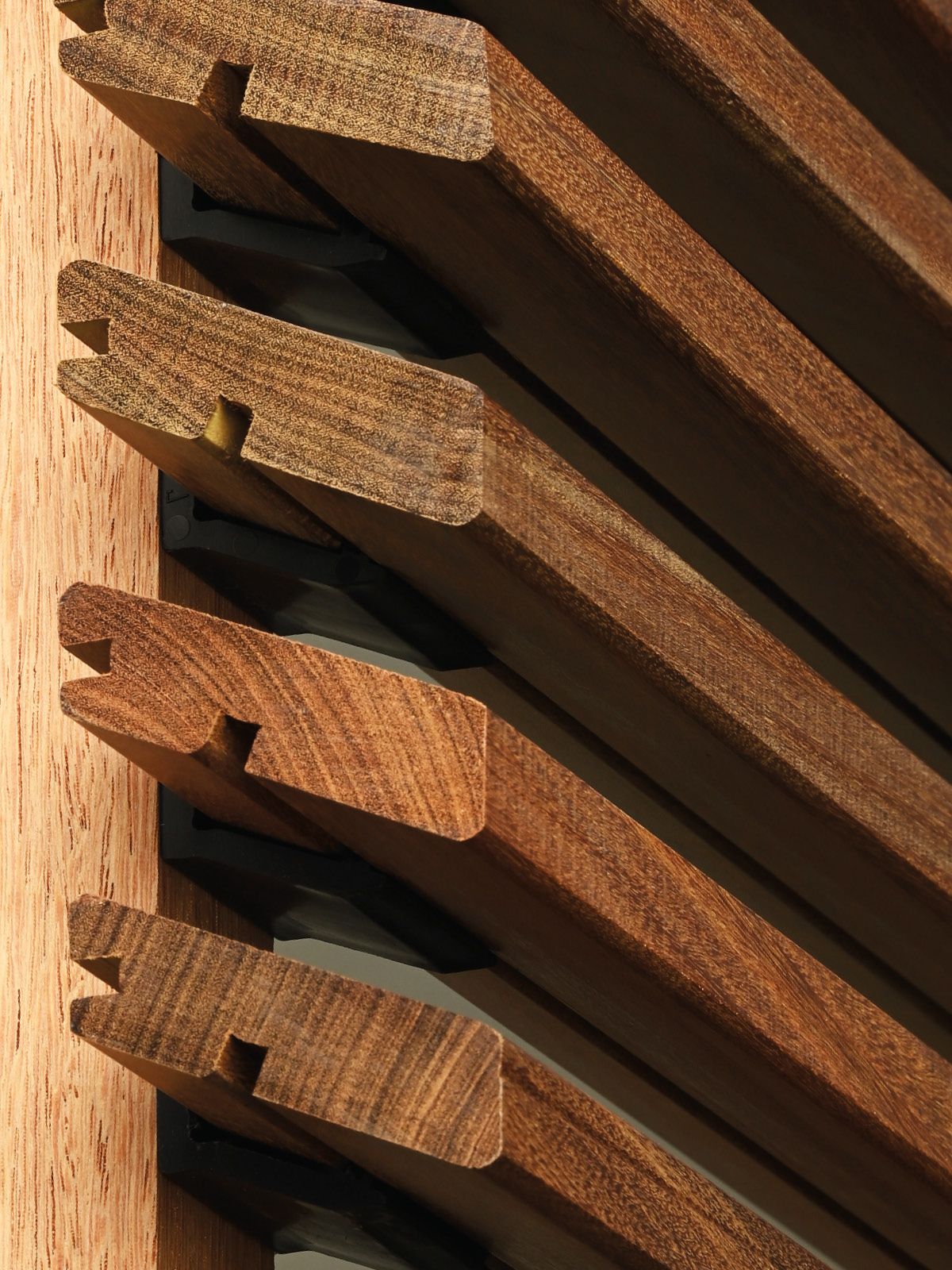

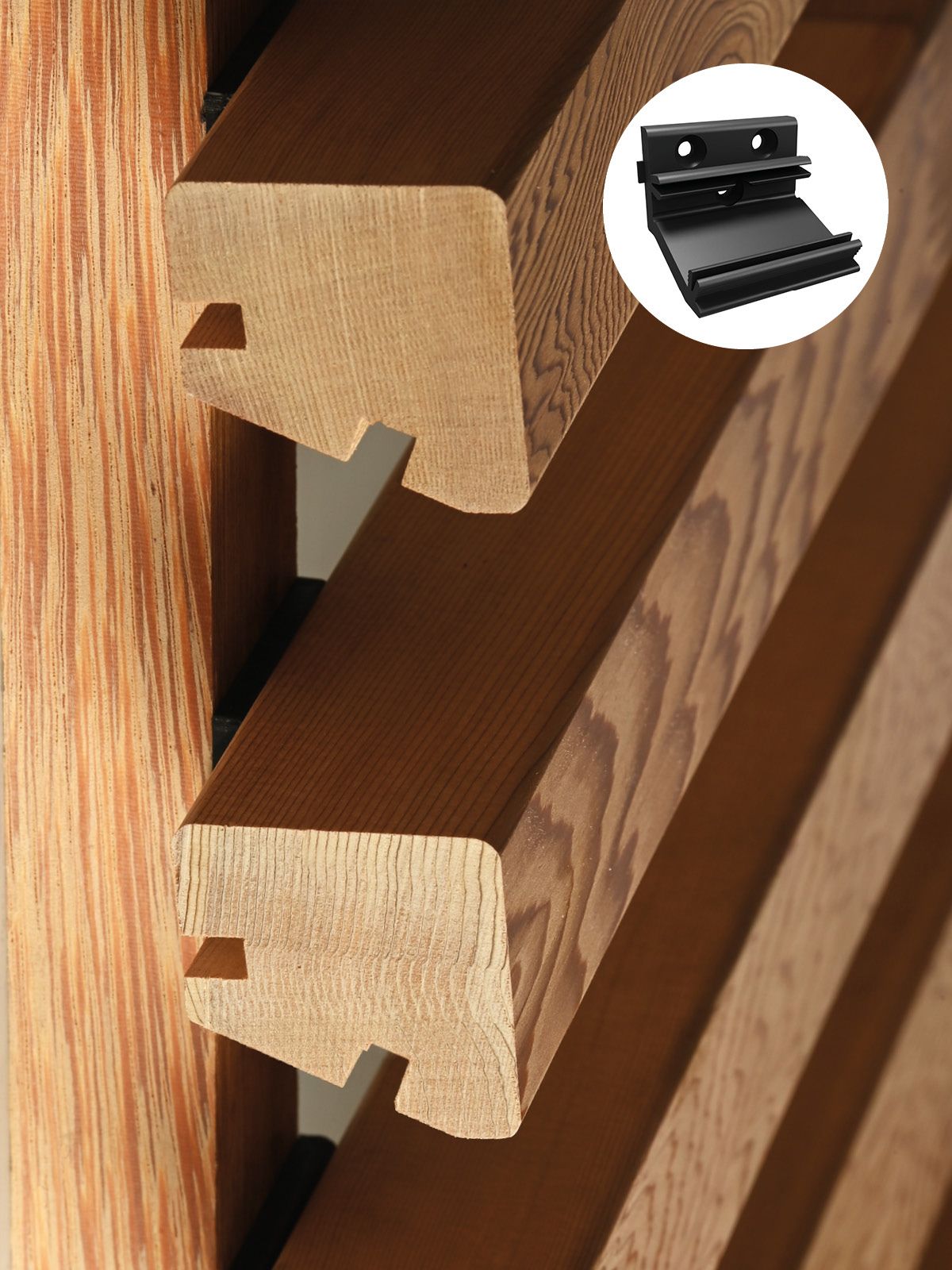

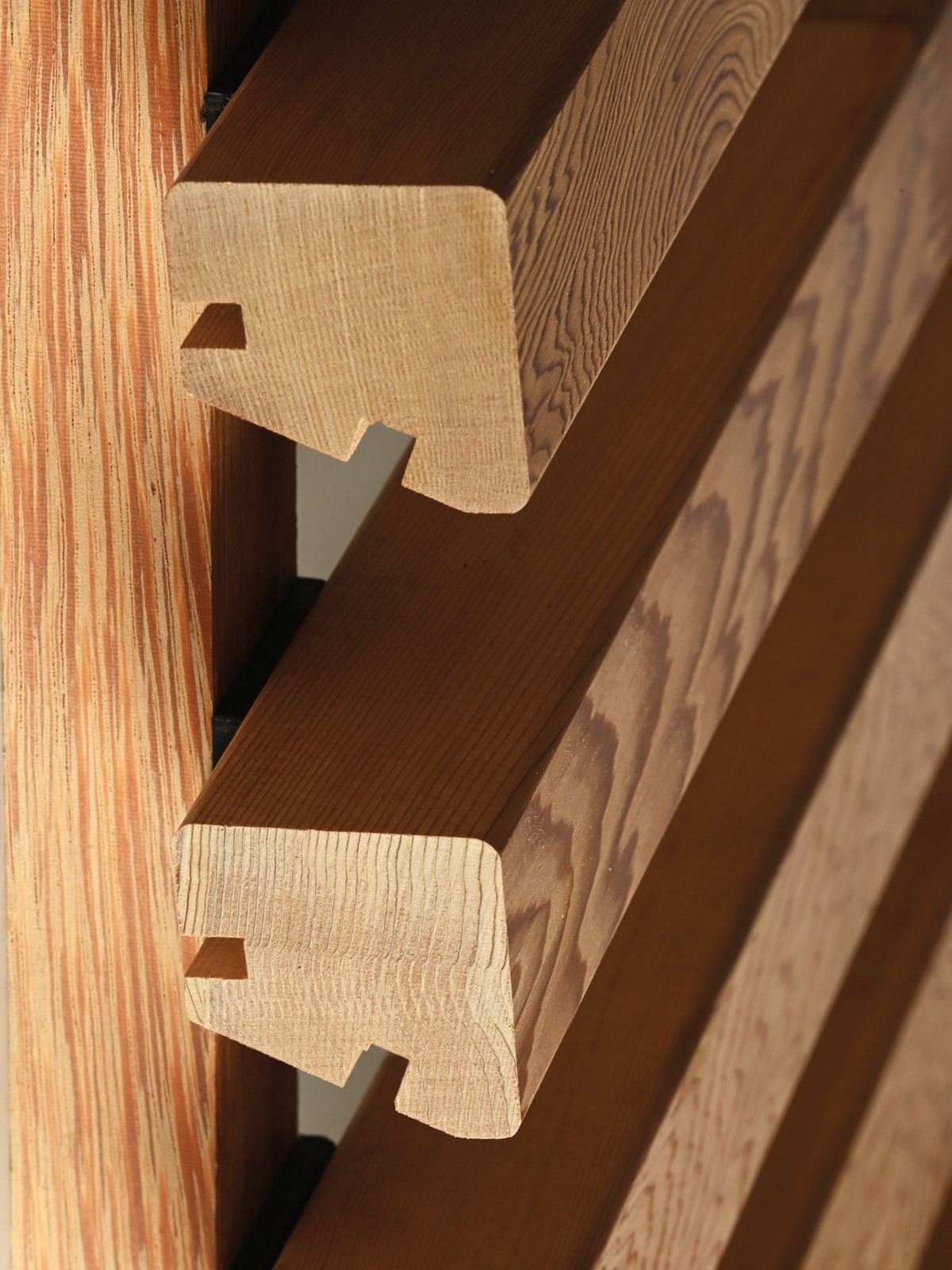

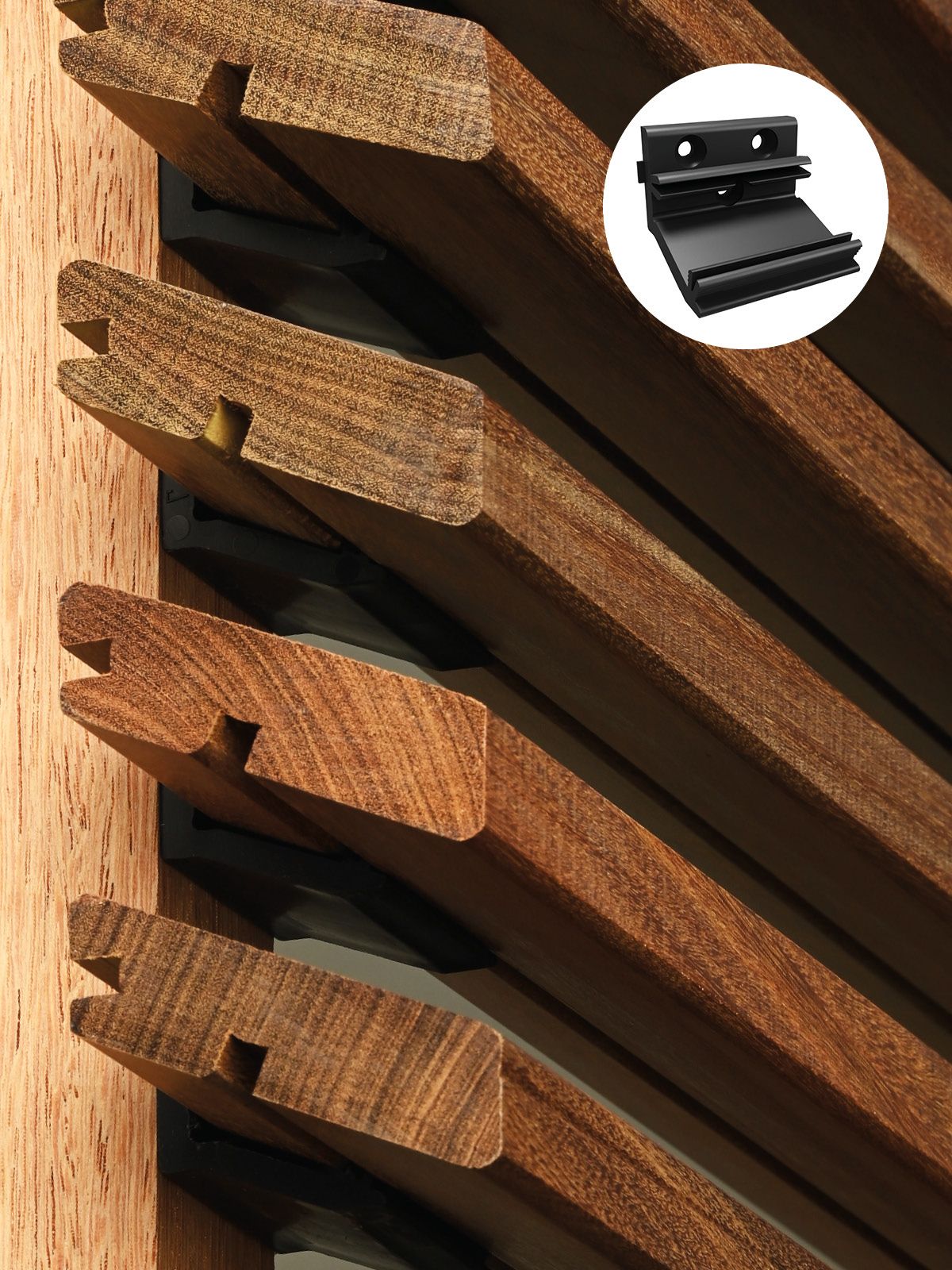

Ravaioli’s patented QuickSun system allows for easy and fast installation of louvers. Thanks to the special template, which is shaped to ensure correct support on the upright, you can quickly fasten the QuickSun clip, leaving no room for errors. All this is guaranteed by the threaded bars defining the centre distance. The template is adjustable and helps manage different gaps between clips, from 16 mm to 65 mm. The QuickSun clip is made with a mix of polymers (PP). It’s recyclable and resists extreme temperatures (from -20 °C to + 95 °C). It’s fastened using a central screw, except when the heads of two strip tiles join in the same clip. In this case, we recommend using two screws for increased holding. One clip allows you to manage squared or rhomboidal wooden profiles. The pins that fit into the wood grooves are specially shaped to follow the natural patterns of the wood. The special clip design ensures elasticity even during assembly. Types available: Thermo-treated Bamboo; Thermo-treated Ash; Abodo®; Thermo-treated Pine; Garapa; Ipè; Teak Asia; Douglas; Western Red Cedar - Finger-Joint.
