PRS®

Overview

PRS® By CORDIVARI

Collection: PRS®

Type: Module for immediate d.h.w. preparation

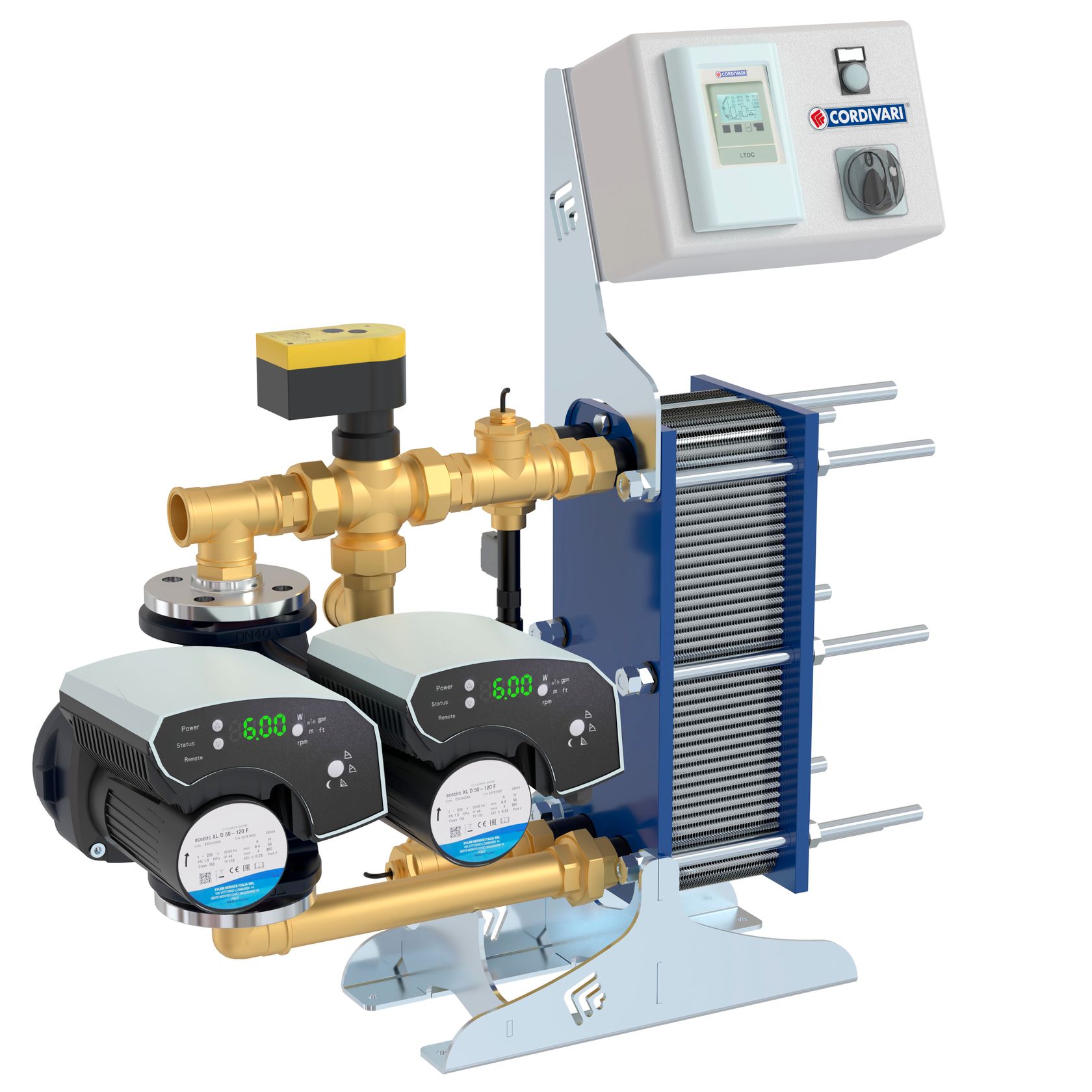

The new PRS modules are designed to rapidly prepare Domestic Hot Water for medium and large-scale facilities; they can work both with accumulation (semi-immediate mode) or without (immediate mode).‎ COMPONENTS: • Inspectable plate heat exchanger with steel structure and exchanger plates made in stainless steel AISI 316L with EPDM gaskets • Single or double pump for primary circuit • Motorized 3-way mixing valve (only on high temperature version) • Electrical control panel with control unit for programmation • Temperature probes • Galvanized steel frame • 230V AC single phase supply.‎ OPTIONAL: • Insulation for the heat exchanger in aluminium and mineral wool (M0-A1 reaction to fire class) • Data Logger.‎ OPERATING CONDITIONS: Maximum Working pressure = 10 bar Maximum temperature of the gaskets = 140 °C.‎ WARRANTY: 2 years – See general sales conditions and warranty on the Calorifiers catalogue in force.‎
