PAD SYSTEM

Overview

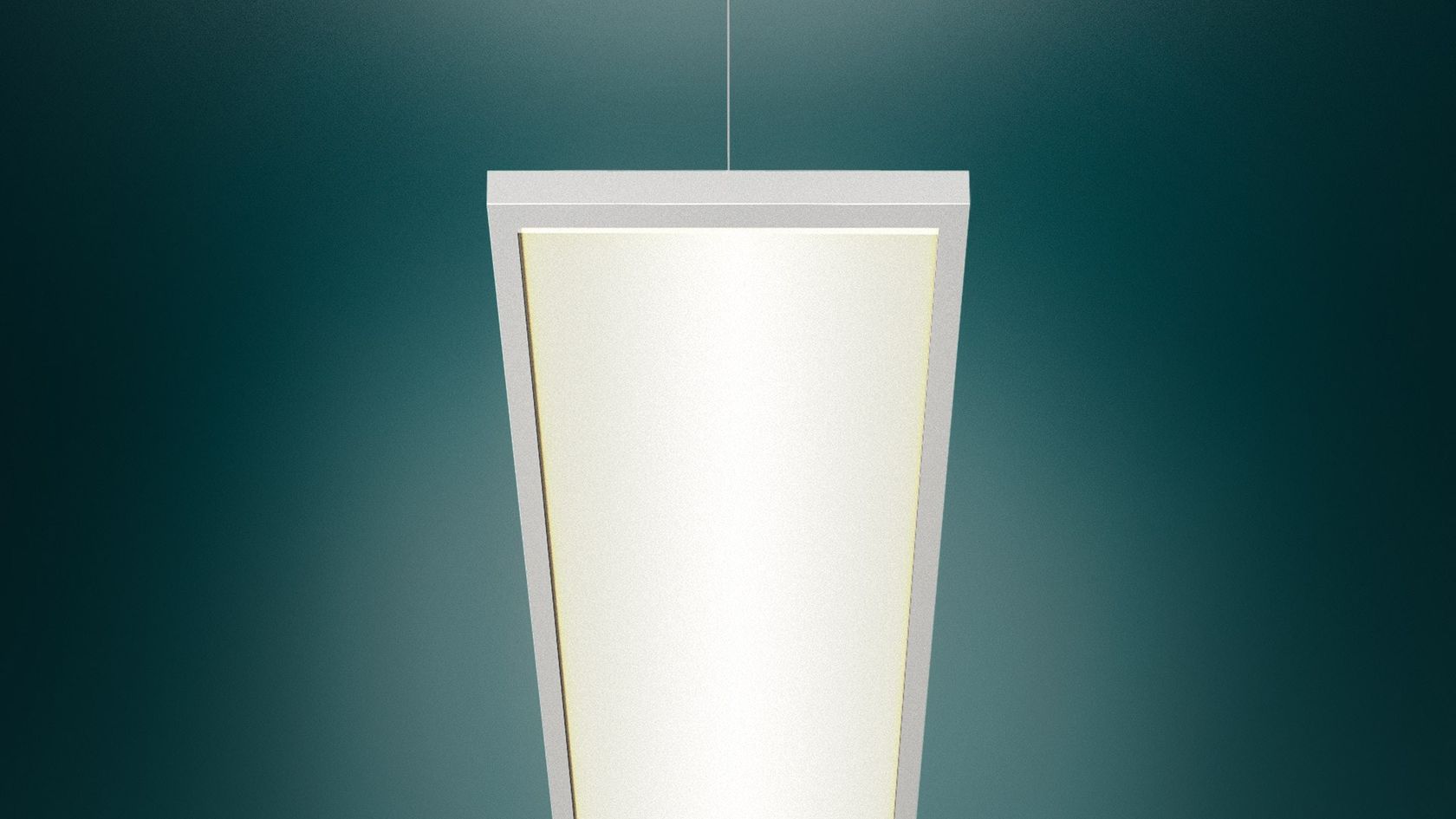

PAD SYSTEM By Artemide

Collection: Pad

Designer: Carlotta de Bevilacqua

Manufacture year: 2013

Type: LED aluminium pendant lamp

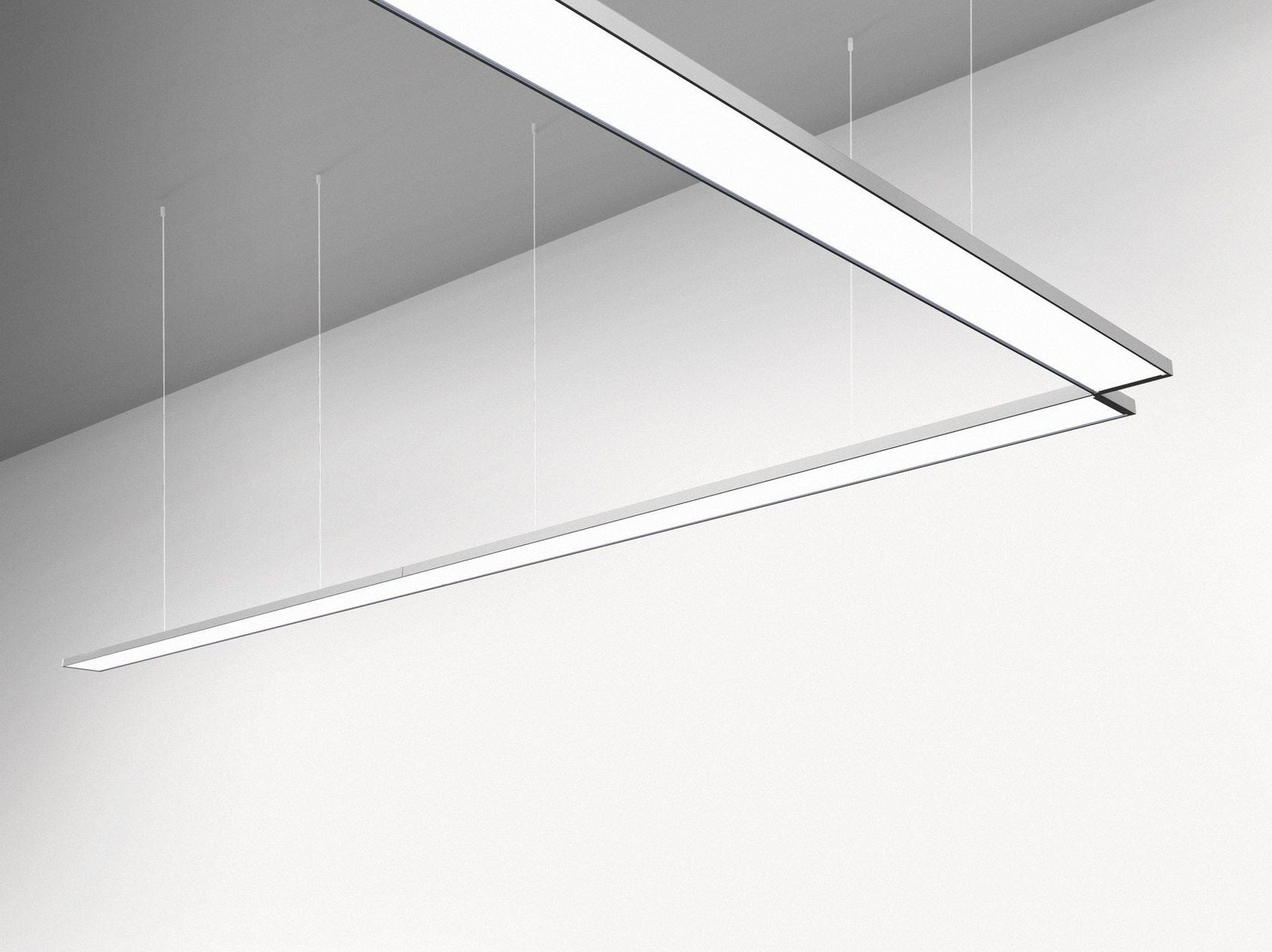

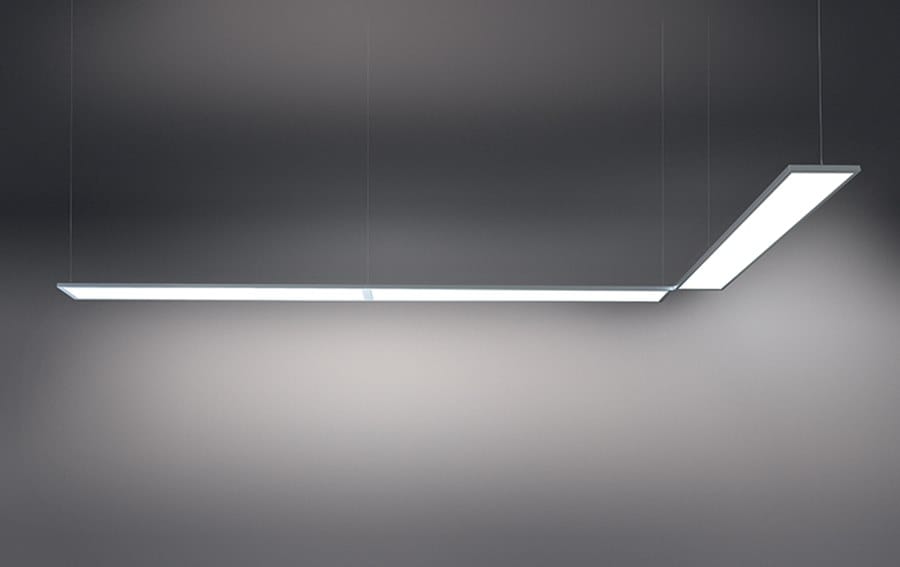

Pad System is the result of a study on the theme of office lighting, which defines a new way of producing light where functional quality and comfort are the main values.‎ With the innovative patented ALEF (Advanced Light Emitting Film) technology of LG, Pad System upsets the traditional optical approaches (based on reflectors and refractors) used in working environments,which allow to control light emission but, at the same time, result intoa non-uniform appearance of the appliance’s output surface.‎ With ALEF, a patent derived from TV-screen back lighting systems, PadSystem appears as a perfectly uniform luminous surface, capable to control emission over 60° beyond the appliance’s ordinary one while ensuring high uniformity values, low luminance levels, and an UGRbelow 19, according to the provisions of UNI 12464 (luminance at 65°<3000 cd/m2 – average UGR < 19).‎ The appliance’s body has a very thin aluminium edge (90x20mm), which makes Pad System one of the world’s slimmest technical officelighting systems.‎ Flexibility is ensured by the joints, which allow to obtain multiple modular configurations.‎  FEATURES Article number: M3050W21 / M3050N21 / M3051W21 / M3051N21 Colour: White Material: Aluminium Watt : 53W / 39W Luminous flux emitted: 5569lm / 6365lm / 3062lm / 3499lm CCT: 3000K / 4000K Efficiency: 85% / 81%.‎ Efficacy: 105.‎08lm/W / 120.‎09lm/W / 78.‎5lm/W / 89.‎72lm/W CRI: 80 SOURCES INCLUDED Category: Led Number: 1 Watt: 48W 33W Colour temperature (K): 3000K / 4000K Luminous flux emitted: 7488 lm / 3780lm / 4320lm CRI: 80 Efficacy: 157 lm/W / 116lm/W / 133lm/W
