LP CAPSULE By Louis Poulsen
Designer: Henning Larsen , Carsten Fischer
Manufacture year: 2022
Type: LED die cast aluminium street lamp

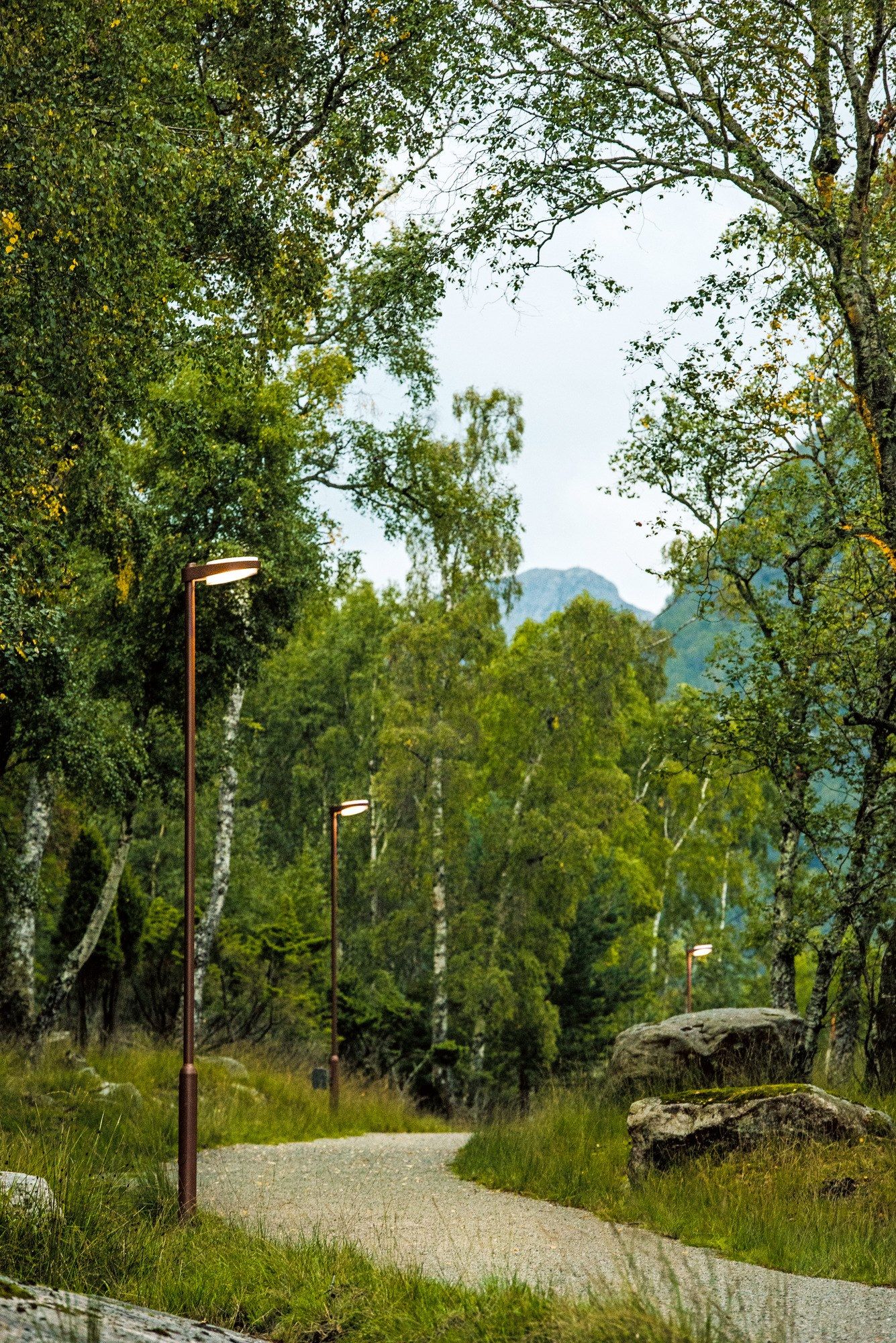

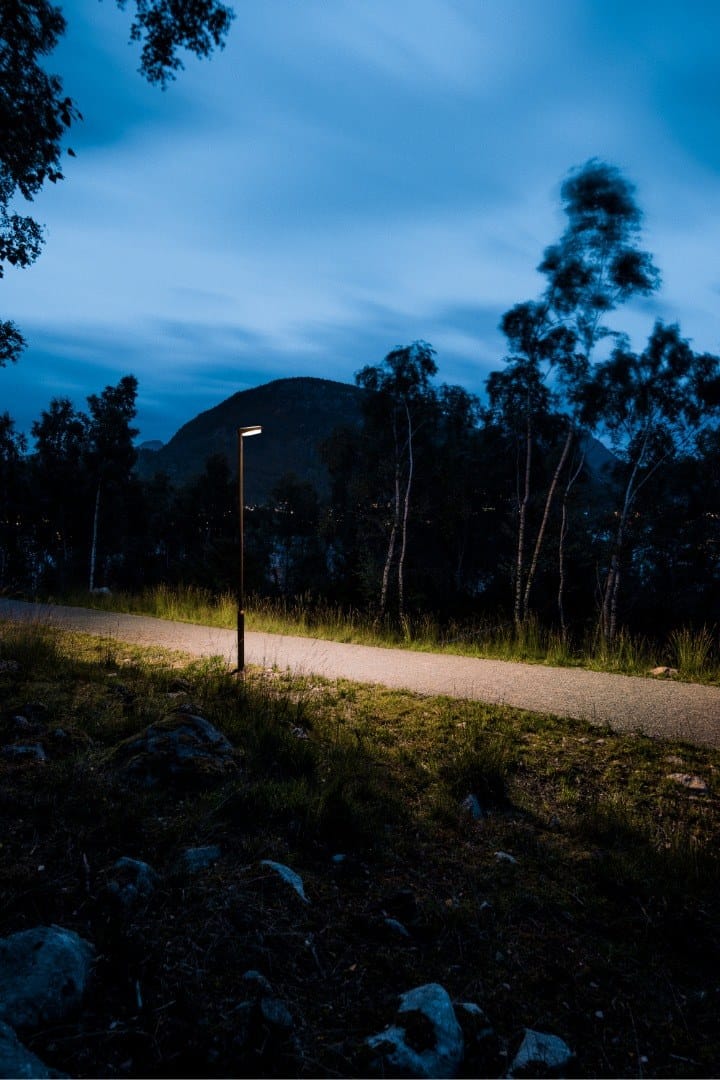

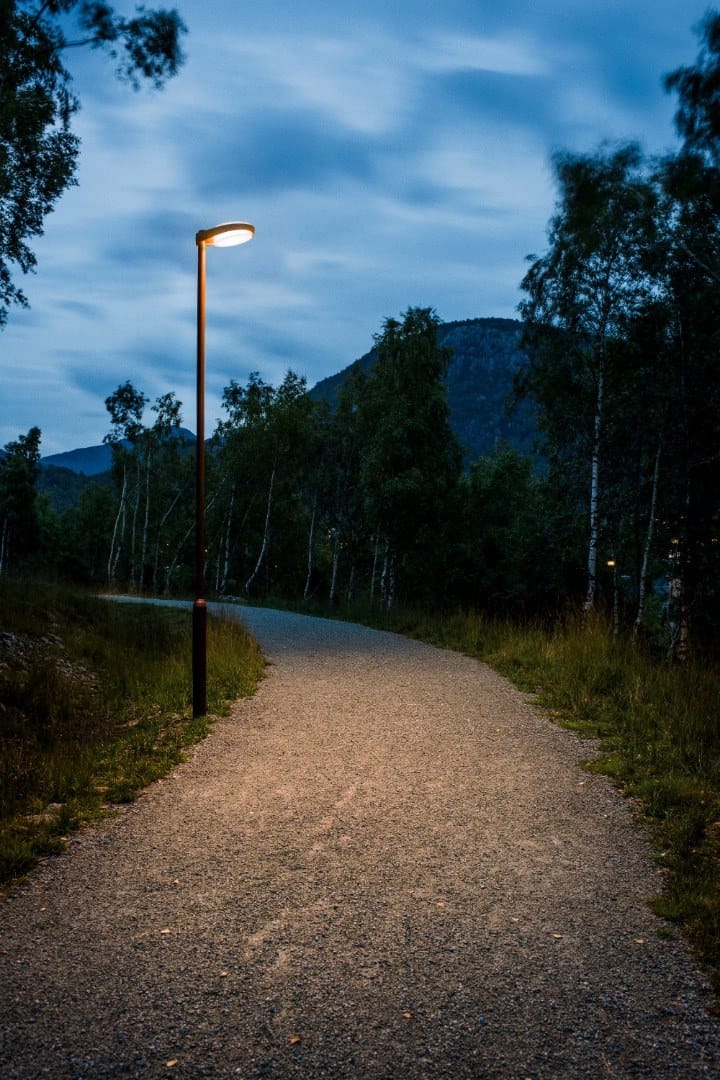

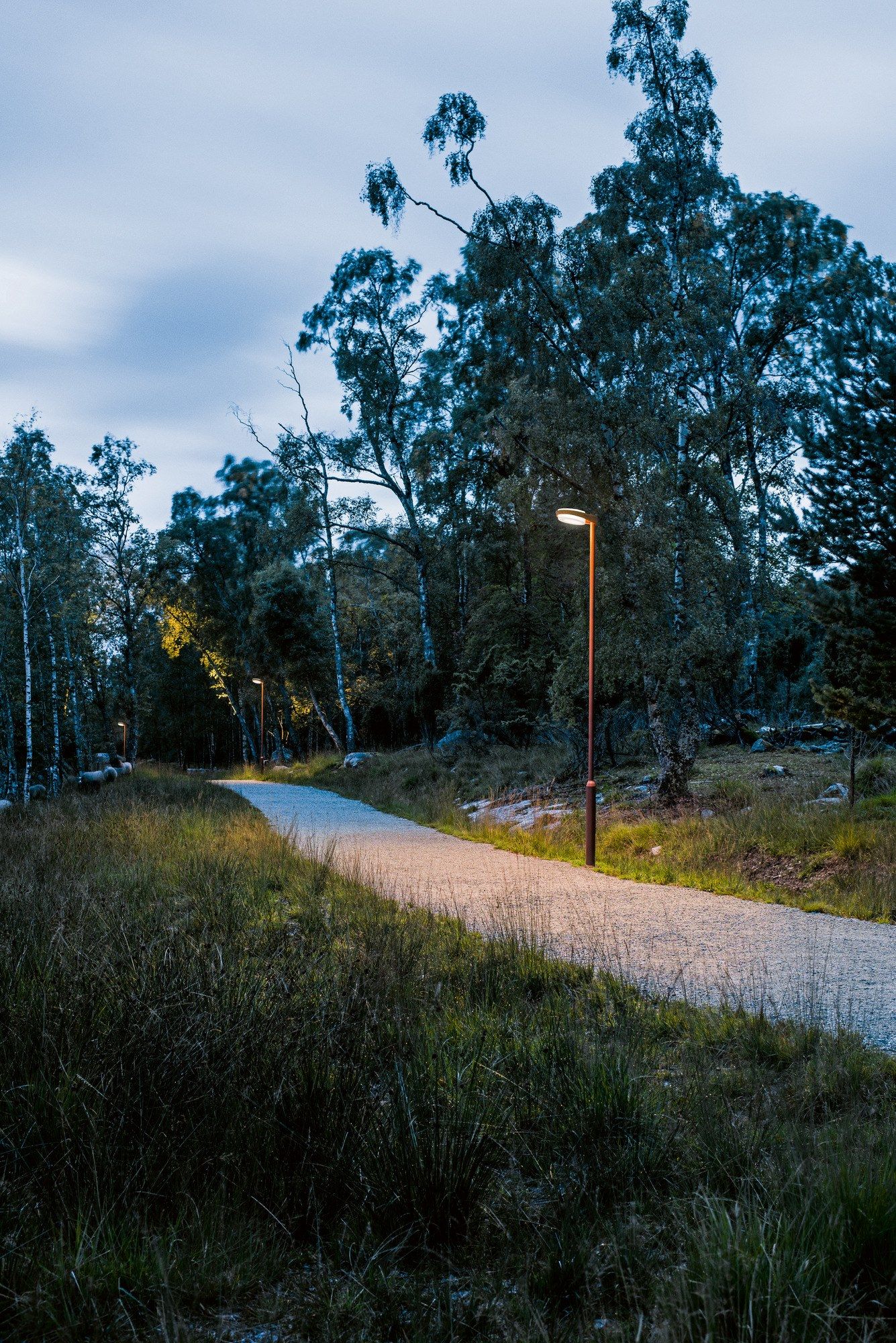

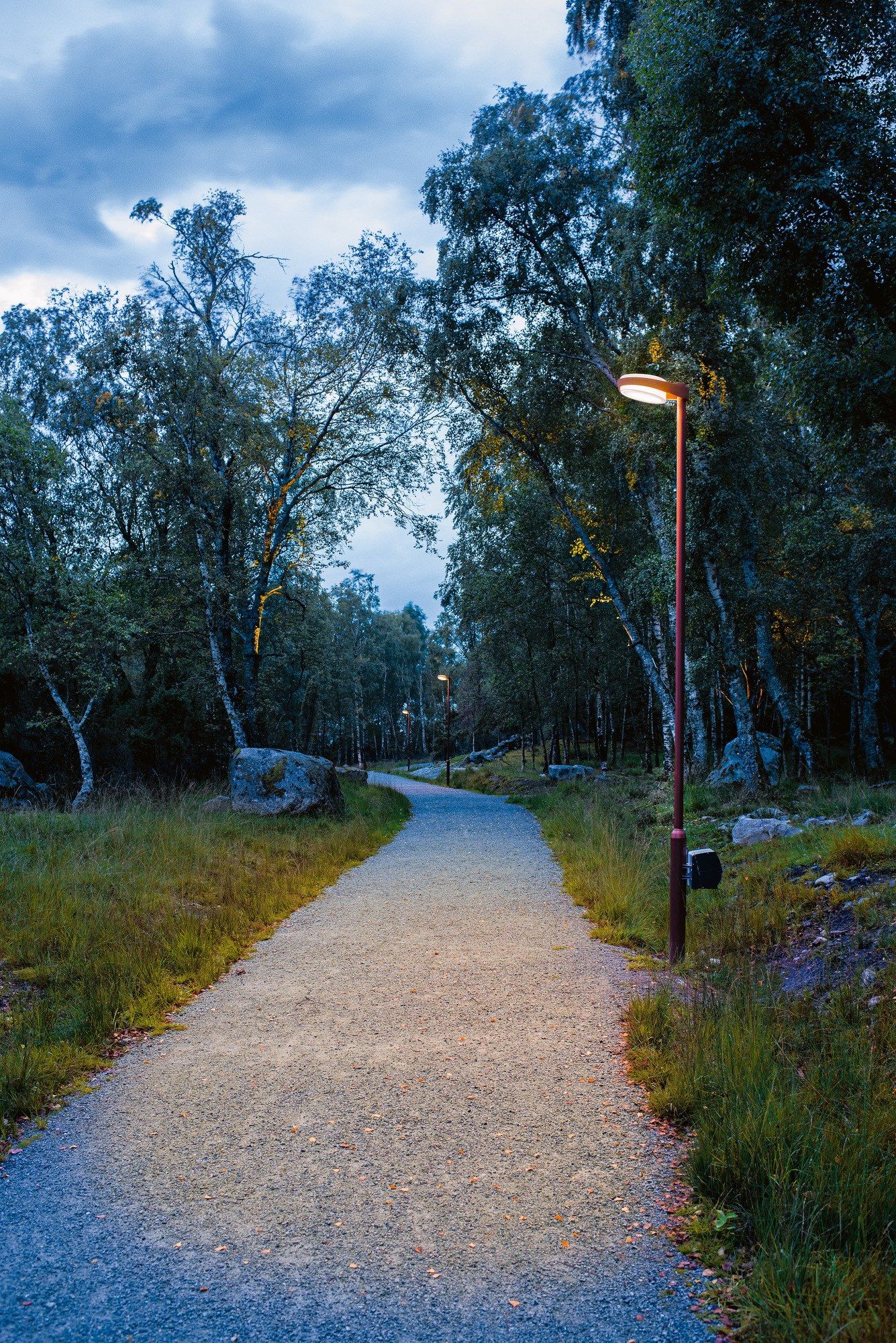

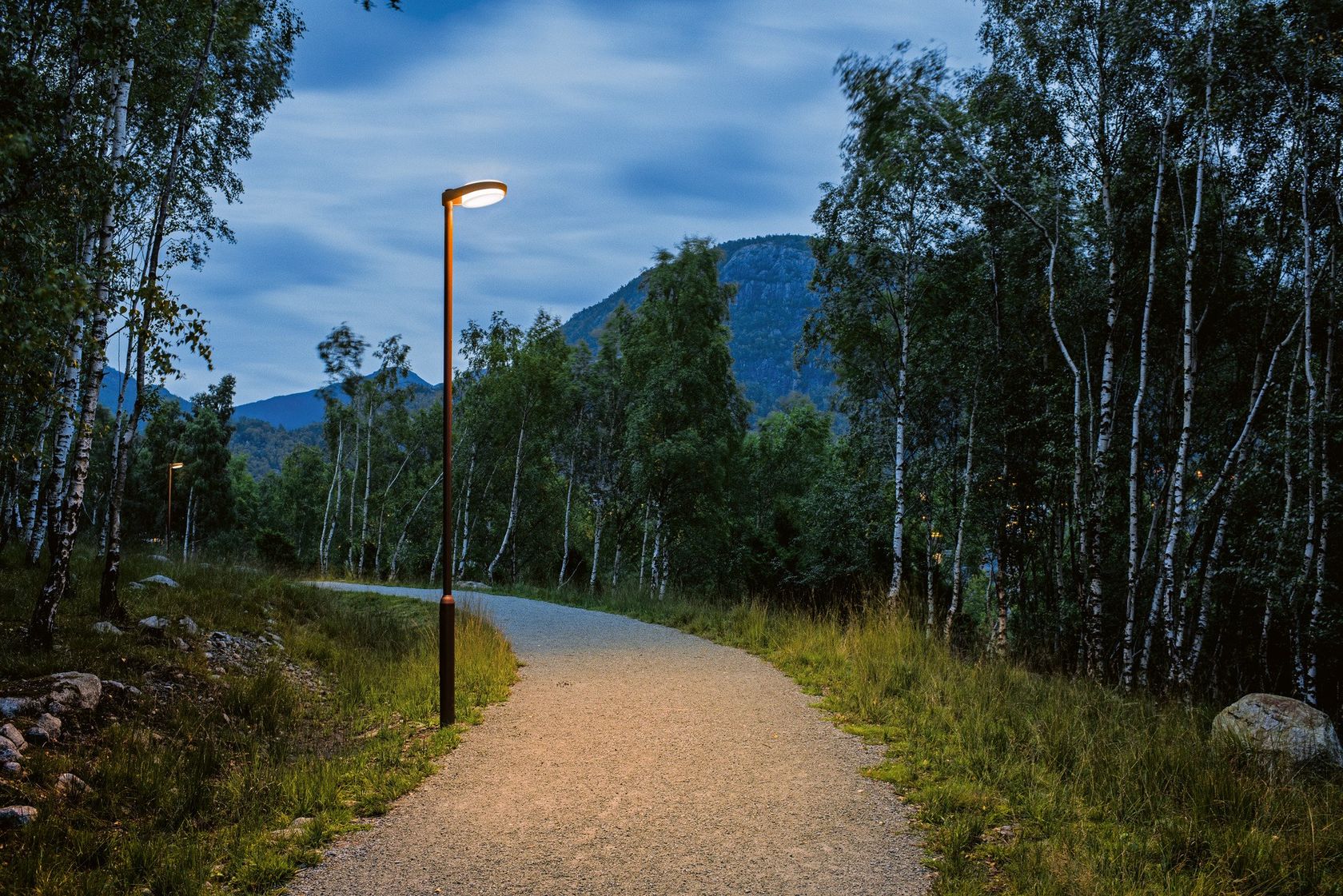

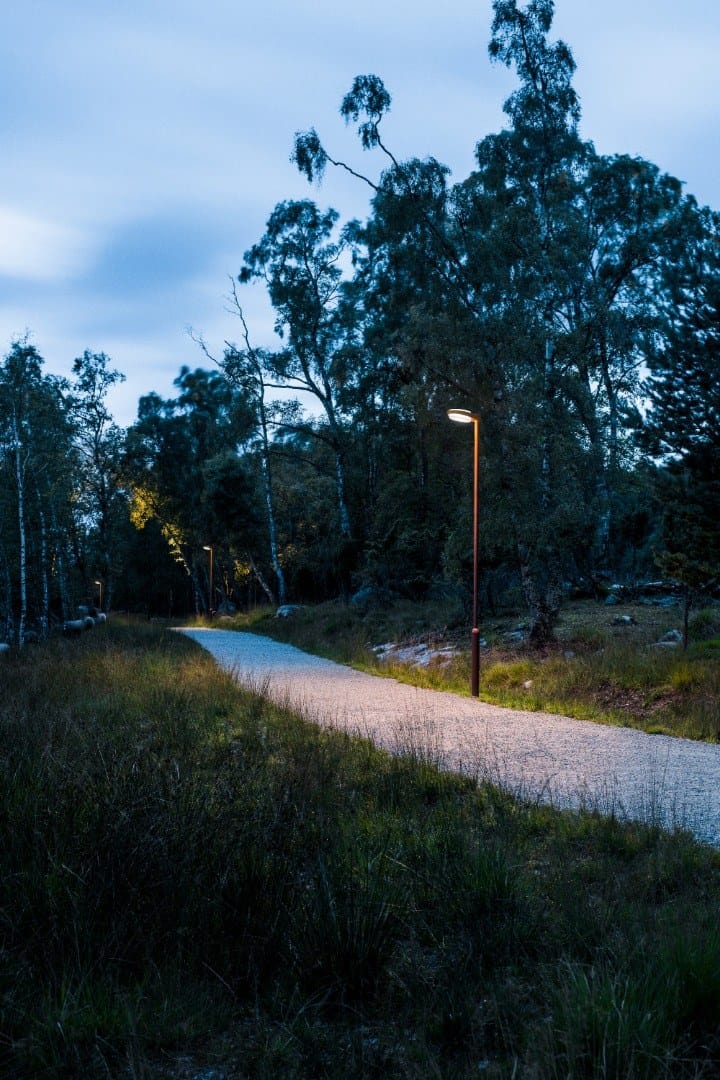

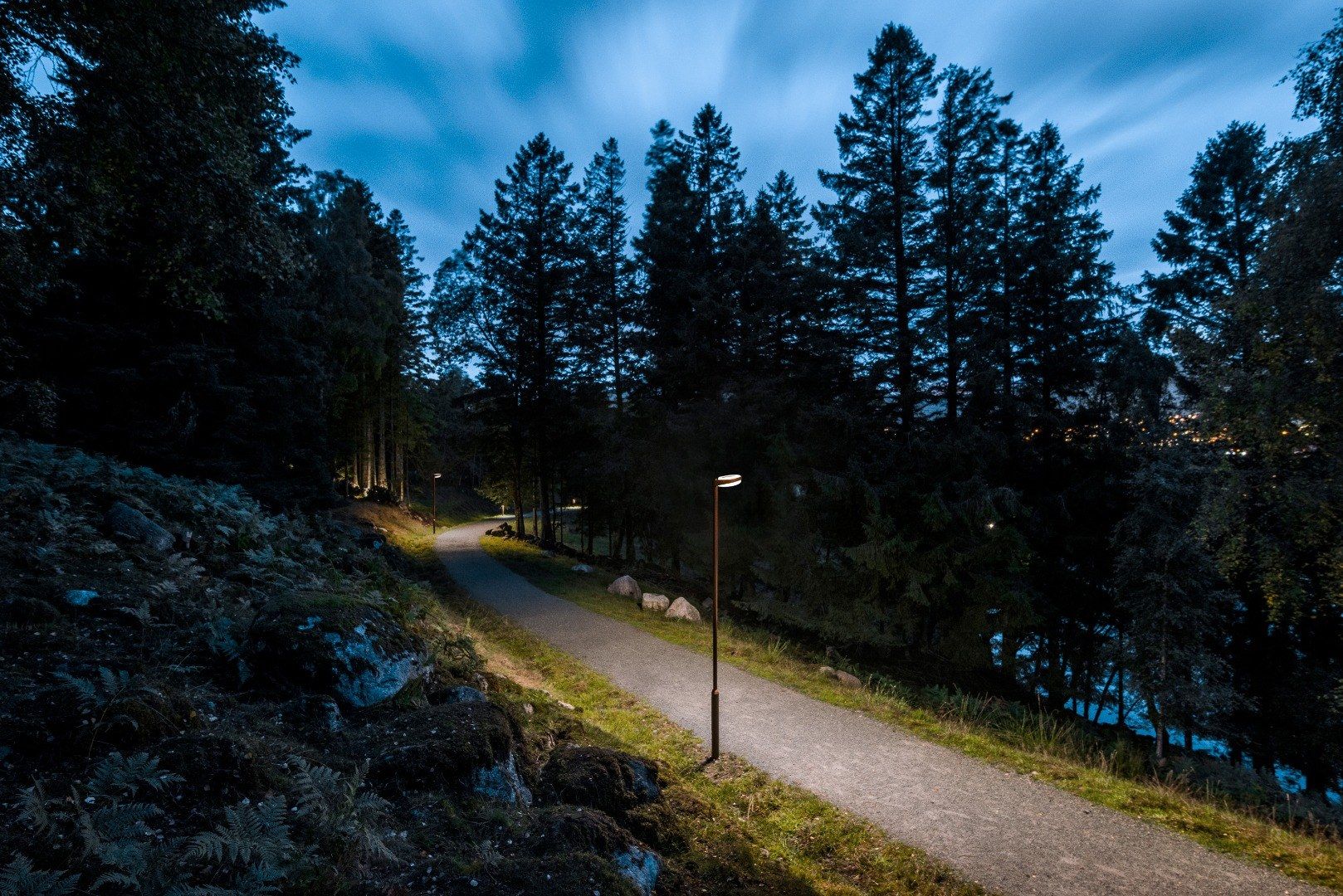

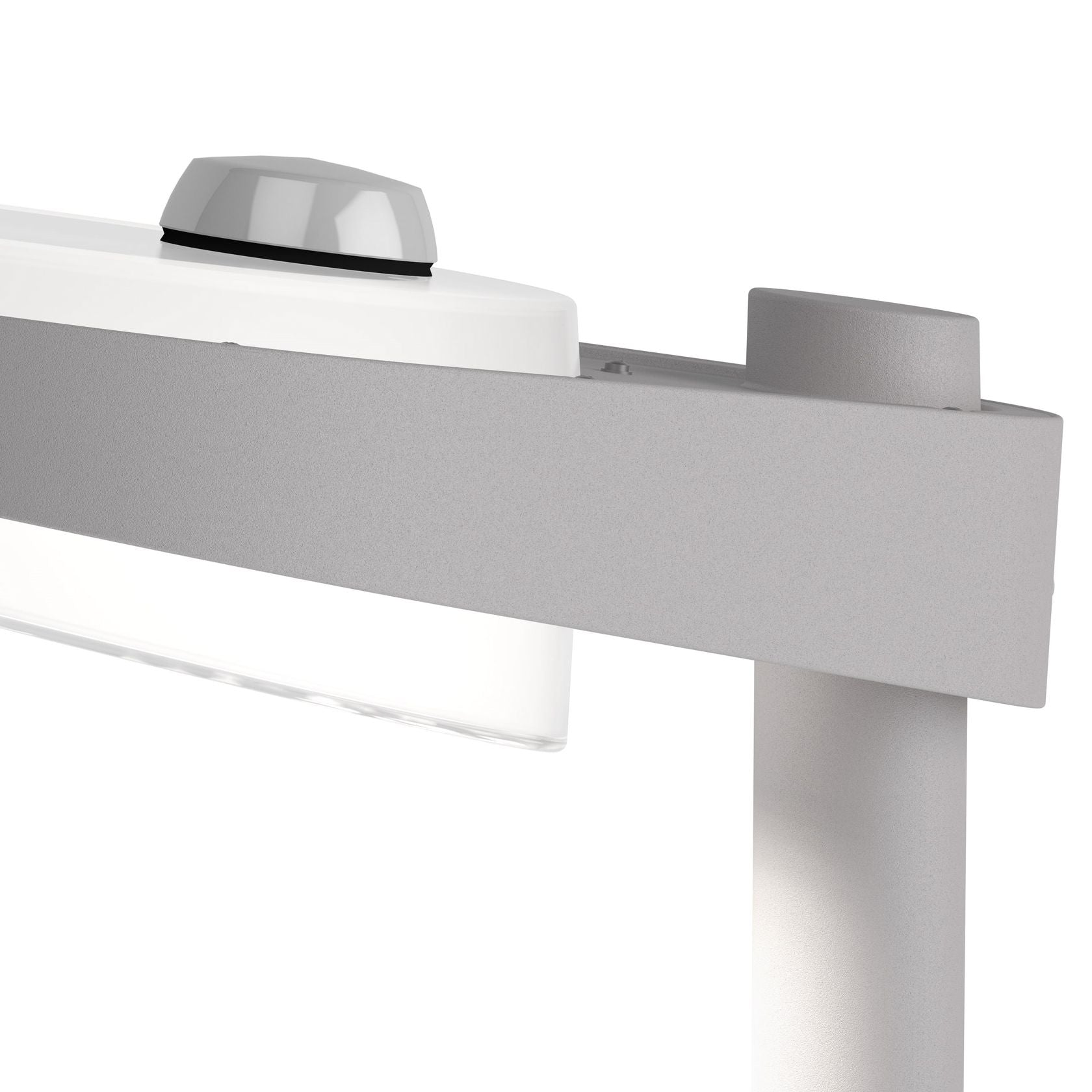

LP Capsule is a LED die cast aluminium street lamp. Mounting Pole dimension: Ø 60mm or Ø 76mm. Installation cable: DAC (DALI+CLO) versions: 4m 5x1mm² (Class I) or 4m 2x1,5mm² (Class II). DPC (night dim/CLO) versions: 4m 3x1,5mm² (Class I) or 4m 2x1,5mm² (Class II). Terminal block: 1x5x2.5mm². Terminal block positioning: In fixture head. LED Driver: In fixturehead. Finish Aluminium coloured with textured surface, powder coated. Materials Lower shade: Injection moulded clear polycarbonate. With glowing, diffused opal light in rim. Upper Shade: Injection moulded opal impact resistant PMMA. Housing: Die-cast aluminium. Base: Die cast aluminium. Sizes and weights Width x Height x Length (mm) | 355 x 175 x 488 Max 8.1 kg Class Ingress protection IP66. Electric shock protection I w. ground, II w/o ground. IK08. Light source LED 3000K 15W, 17W, 32W / LED 4000K 17W, 32W The fixture provides direct downward illumination and is self-illuminating. The fixture is available in two variants - round symmetrical and asymmetrical light distribution. The opal shade minimizes glare. It emphasizes the shape of the luminaire and creates ambience and comfort.
