LINEALED DRIVE-OVER


Description

Overview

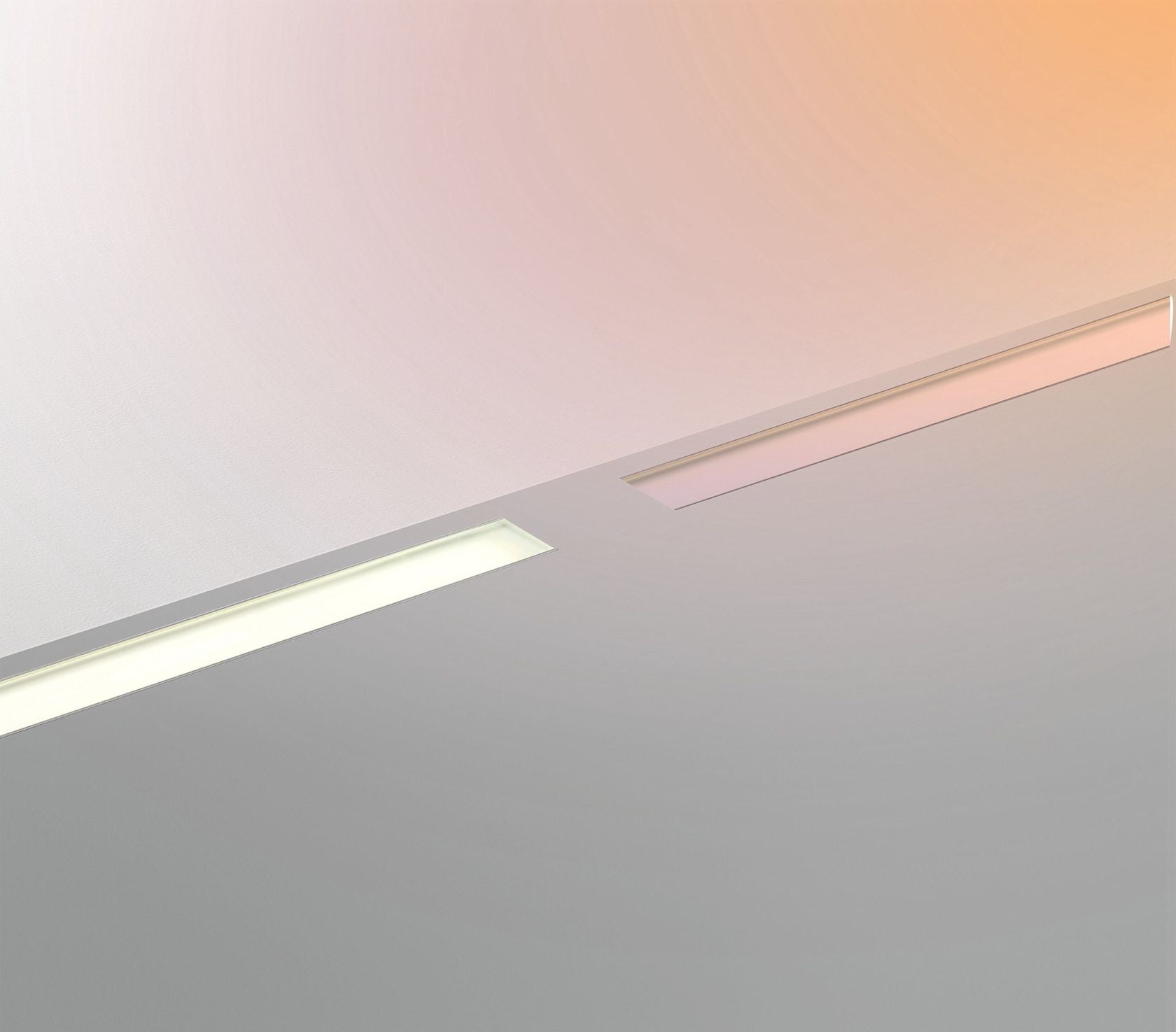

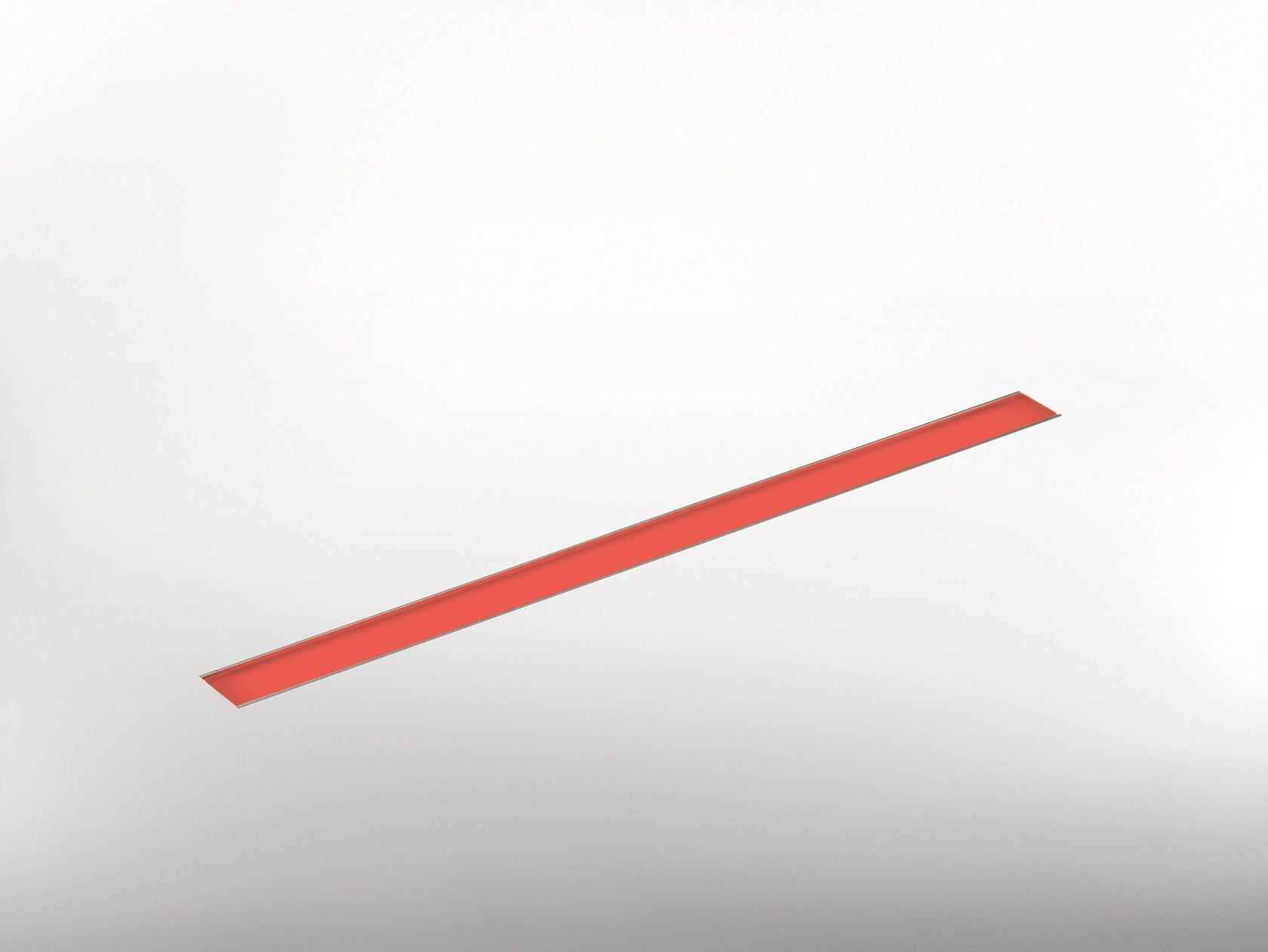

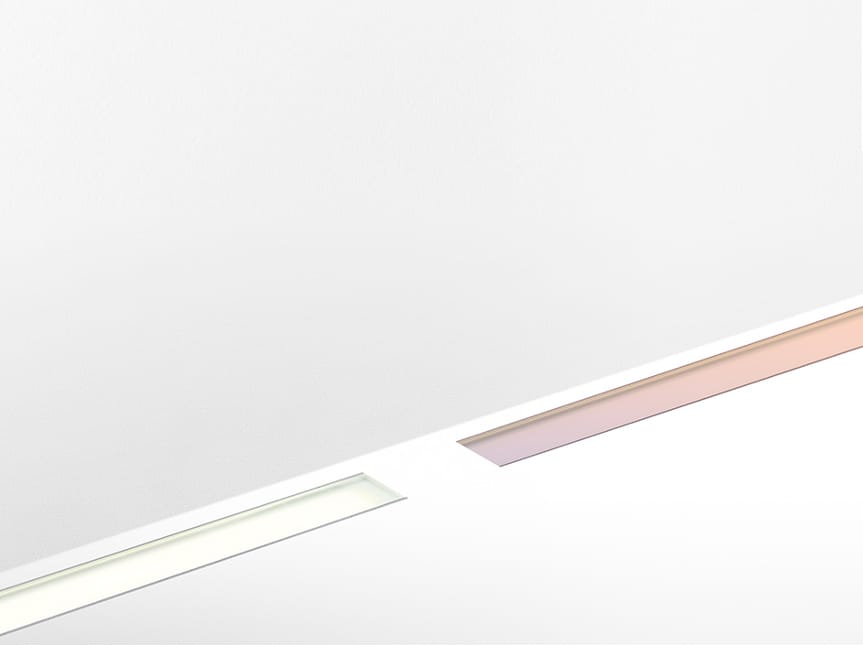

LINEALED DRIVE-OVER By Artemide

Collection: LineaLed

Designer: Carlotta de Bevilacqua

Manufacture year: 2010

Type: Floor extruded aluminium linear lighting profile

LineaLed Drive-Over is a floor linear lighting profile.‎ Light fixture with high-performance LED light sources.‎ Walk-over and drive-over recessed floor installation.‎ Composed by body in extruded aluminium, protection glass; provided with junction box for input/output connection.‎ Floor recessing box in steel.‎ Technical features of light fixtures in compliance with EN60598-1.‎ Installation must be carried out by specialized personnel.‎ Carefully follow the instructions.‎ FEATURES Article Code: NL7398VSK0 / NL7419VSK0 / NL76480 / NL76490 Variant: LineaLed /LinaLed RGB Installation: Recessed Material: Aluminum.‎ Area contract: Urban Power Supply: Elettronic remote ballast / Driver RGB Watt: 5 W / 8W / 10W / 16 W Voltage: 24Vdc Delivered lumens output: 115 lm / 184 lm CCT: 3000K Efficiency: 31% Efficacy: 22.‎98lm/W CRI: 75 SOURCES INCLUDED Category: Led Number: 1 Watt: 5 W / 8 W / 10 W / 16 W Delivered lumens output: 432 Color temperature (K): 3000 K / RGB Voltage: 24 Vdc LineaLed Wallwasher is a light fixture with high-performance LED light sources.‎Walk-over and drive-over recessed floor installation.‎Monochromatic light.‎Composed by body in extruded aluminium,protection glass.‎Adjustment brackets in die-cast aluminium.‎Electrical connection to the ballast by means of 100cm-long two-pole cable H05RN-F,with IP67 quick-release terminal board suppliedwith the fixture.‎Polycarbonate end caps with silicone gasket.‎8mm-thick non-slip transparent tempered glass.‎24Vdc remote ballast.‎ Technical features of light fixtures in compliancewith EN60598-1.‎ Installation must be carried out by specializedpersonnel.‎ FEATURES Beam: 12° / 28° / EL Lenght: 30 cm / 50 cm / 78 cm / 97.‎8 cm Watt: 17 W / 25 W / 34 W / 8.‎5 W Delivered lumens output: 1234 lm / 1248 lm / 1645 lm / 1665 lm / 411 lm / 416 lm / 823 lm / 832 lm CCT: 3000 K IP 65/67
