Description
KIPP By Louis Poulsen
Collection: Kipp
Designer: Alfred Homann

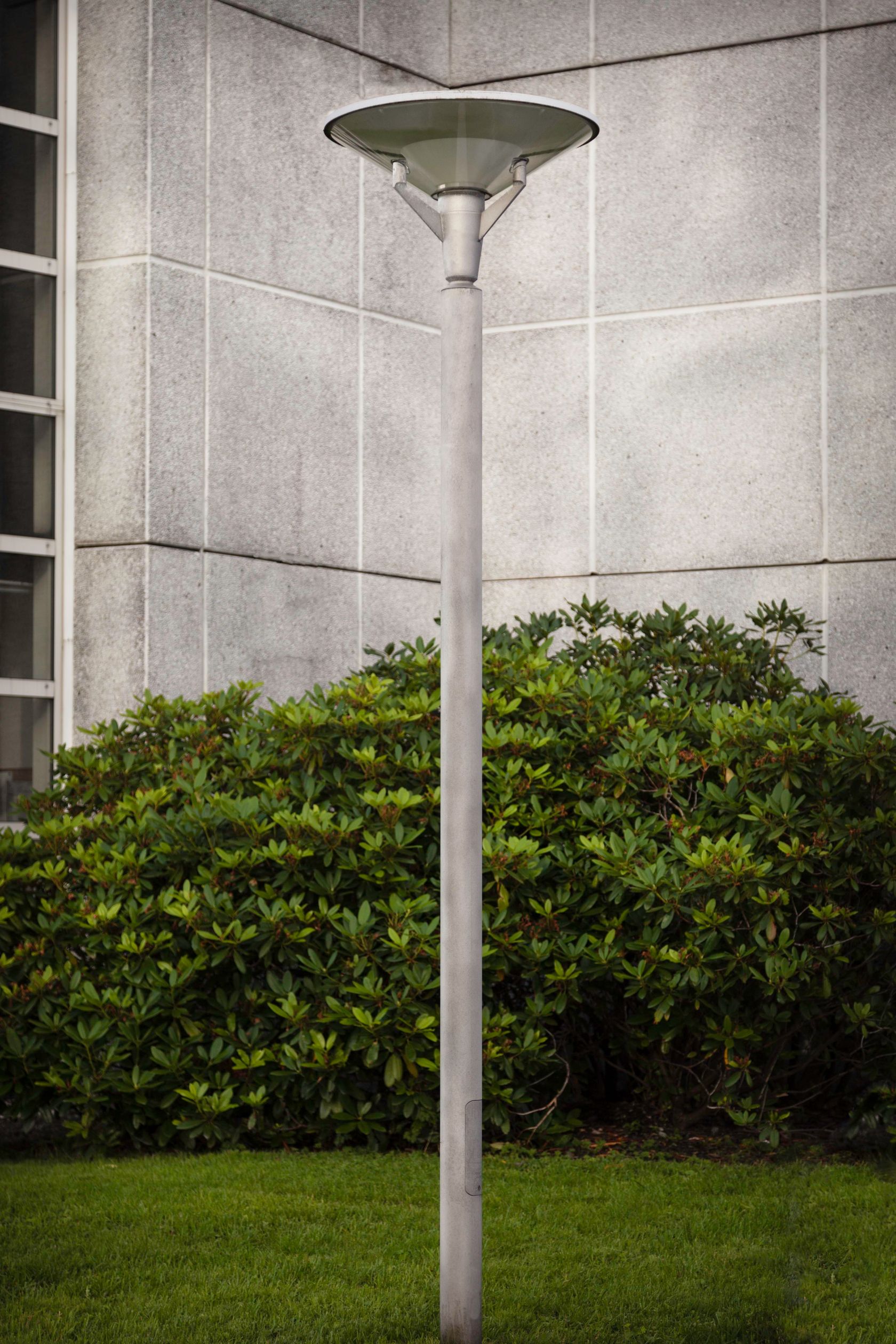

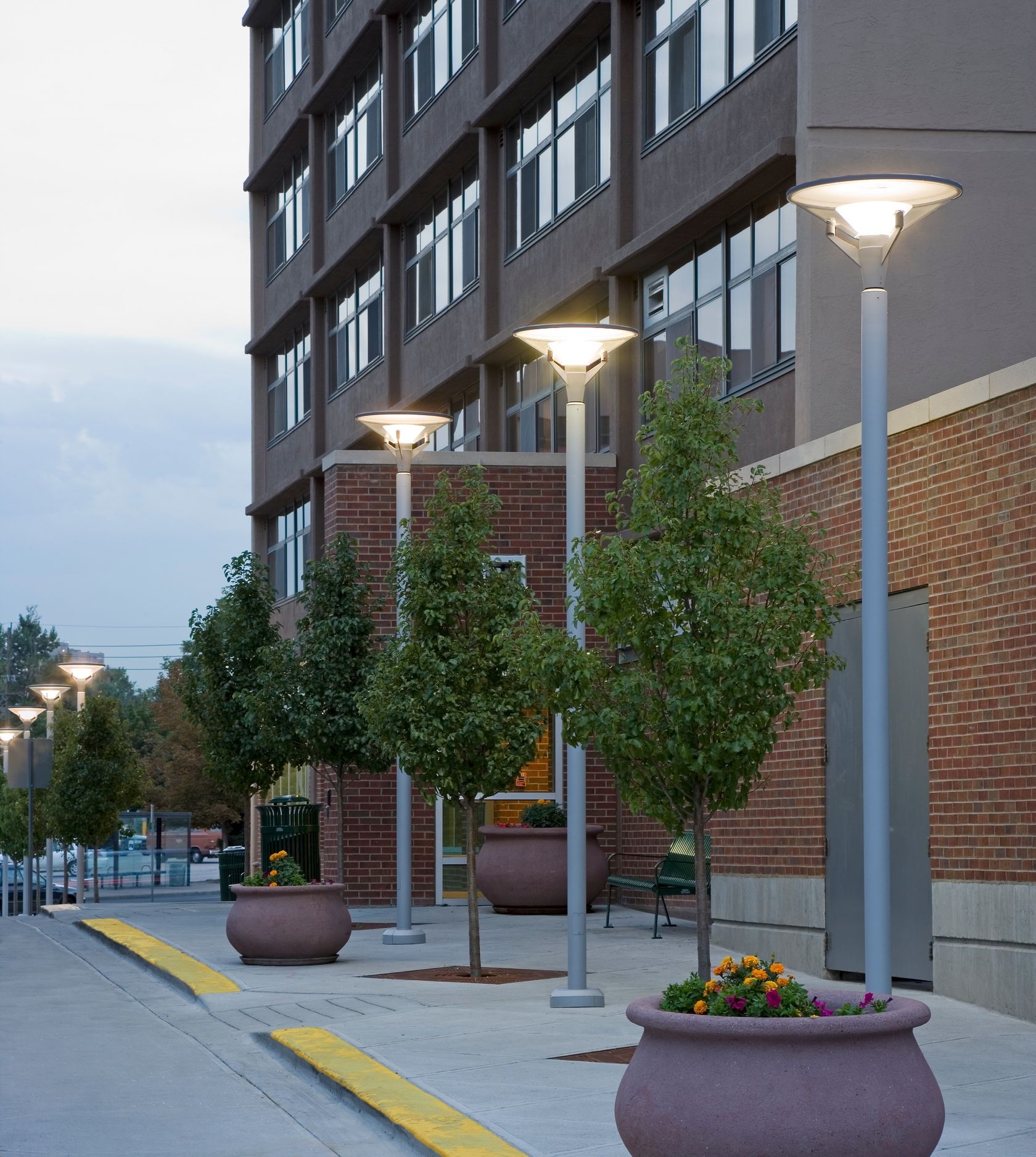

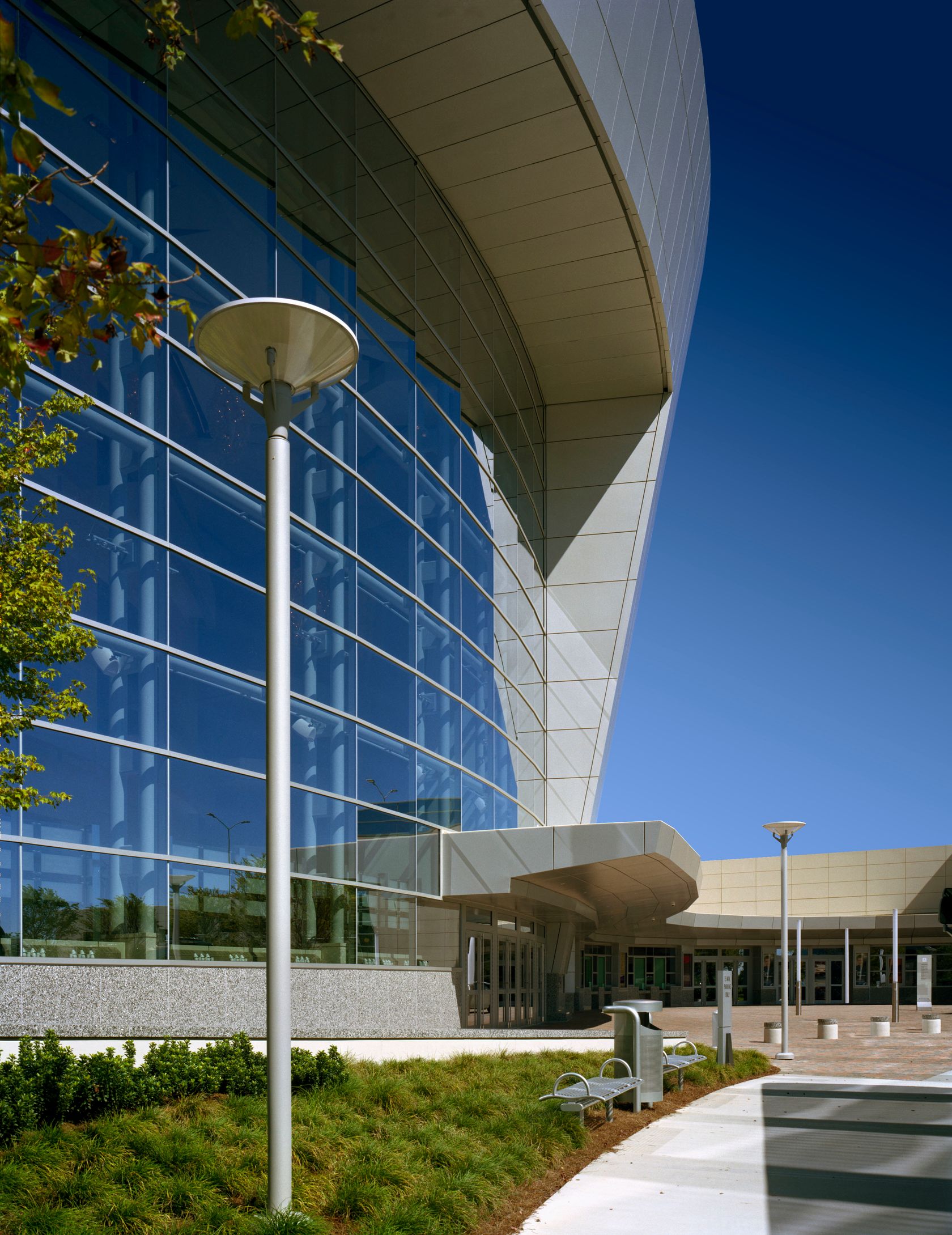

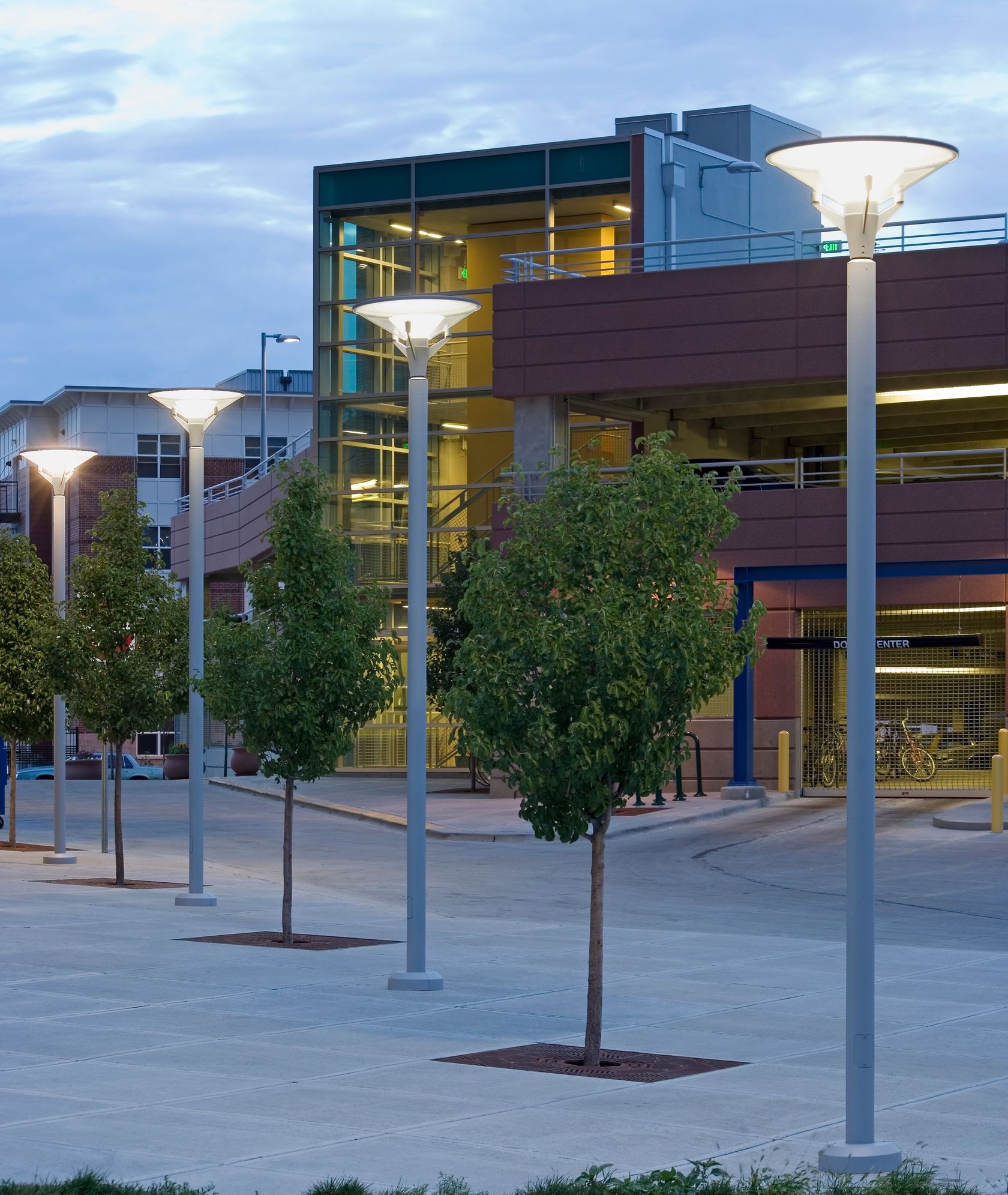

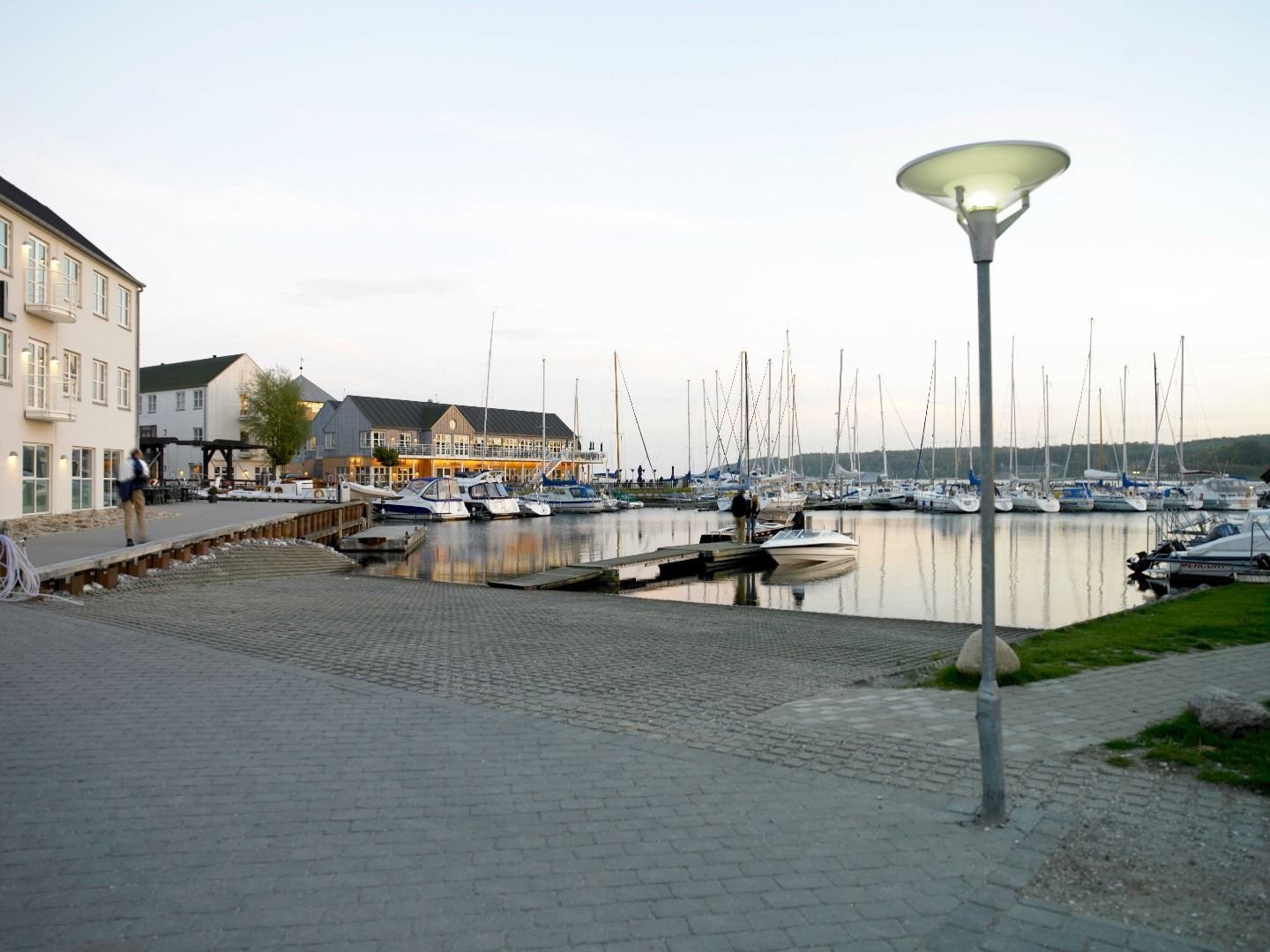

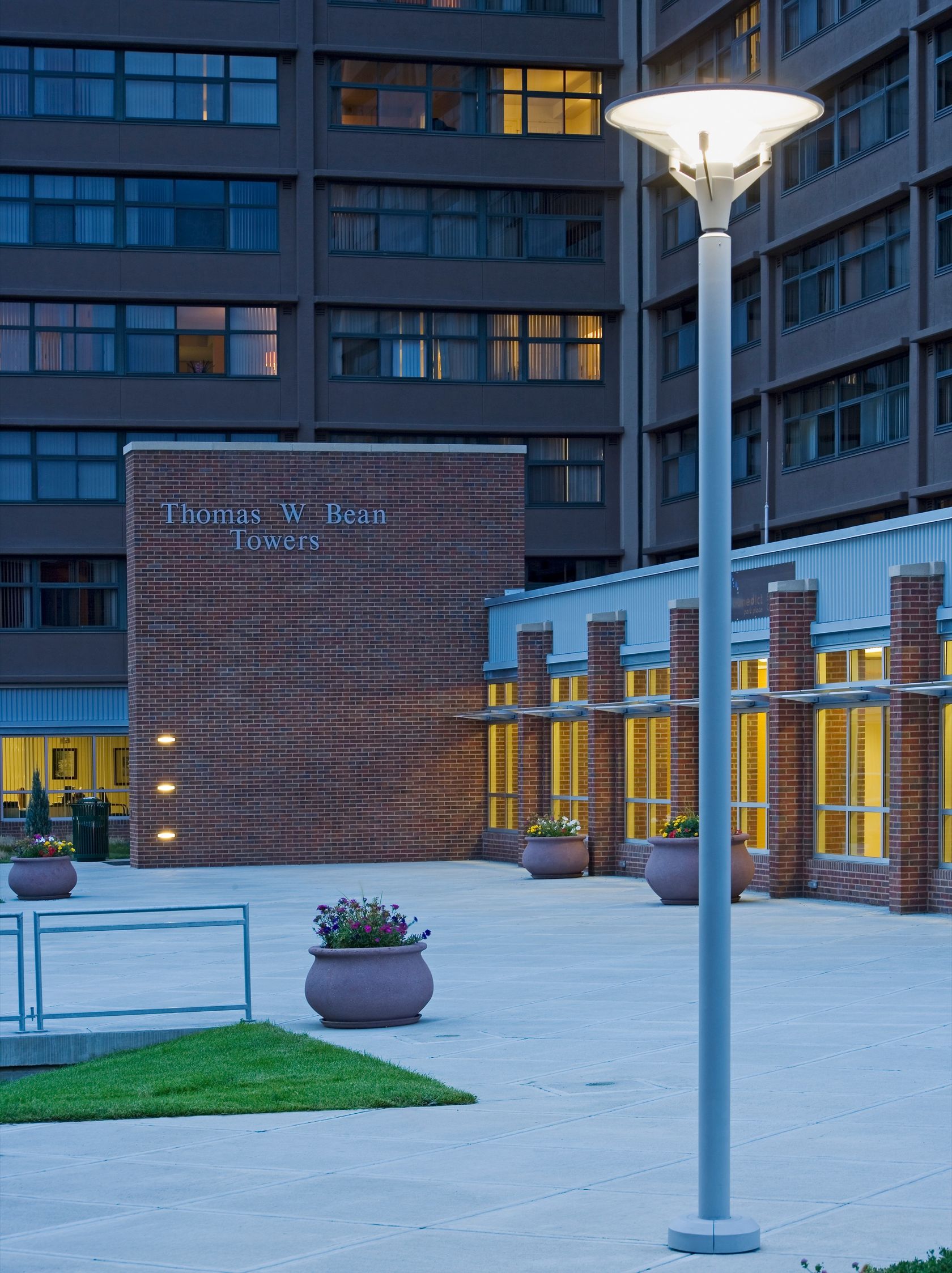

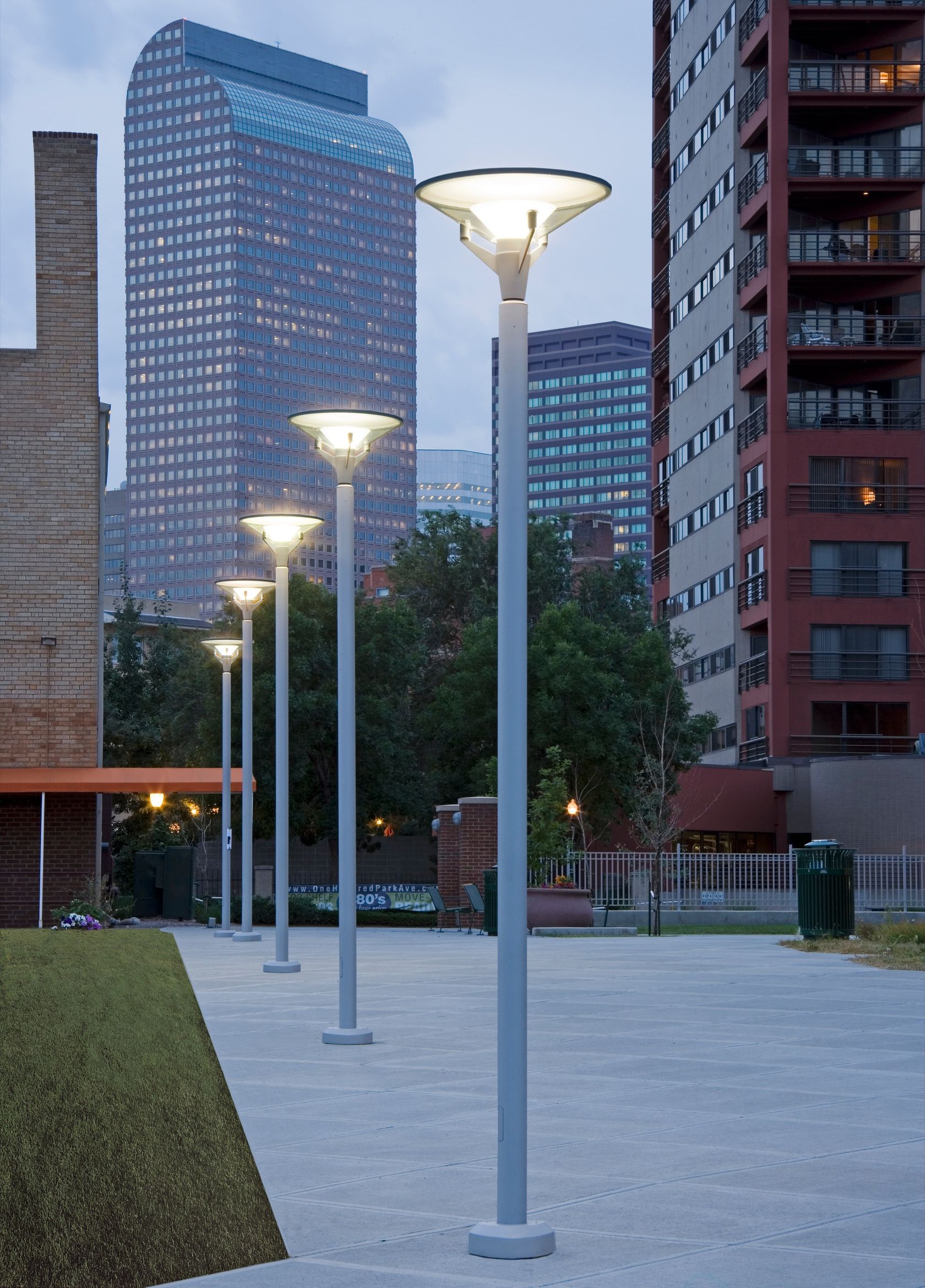

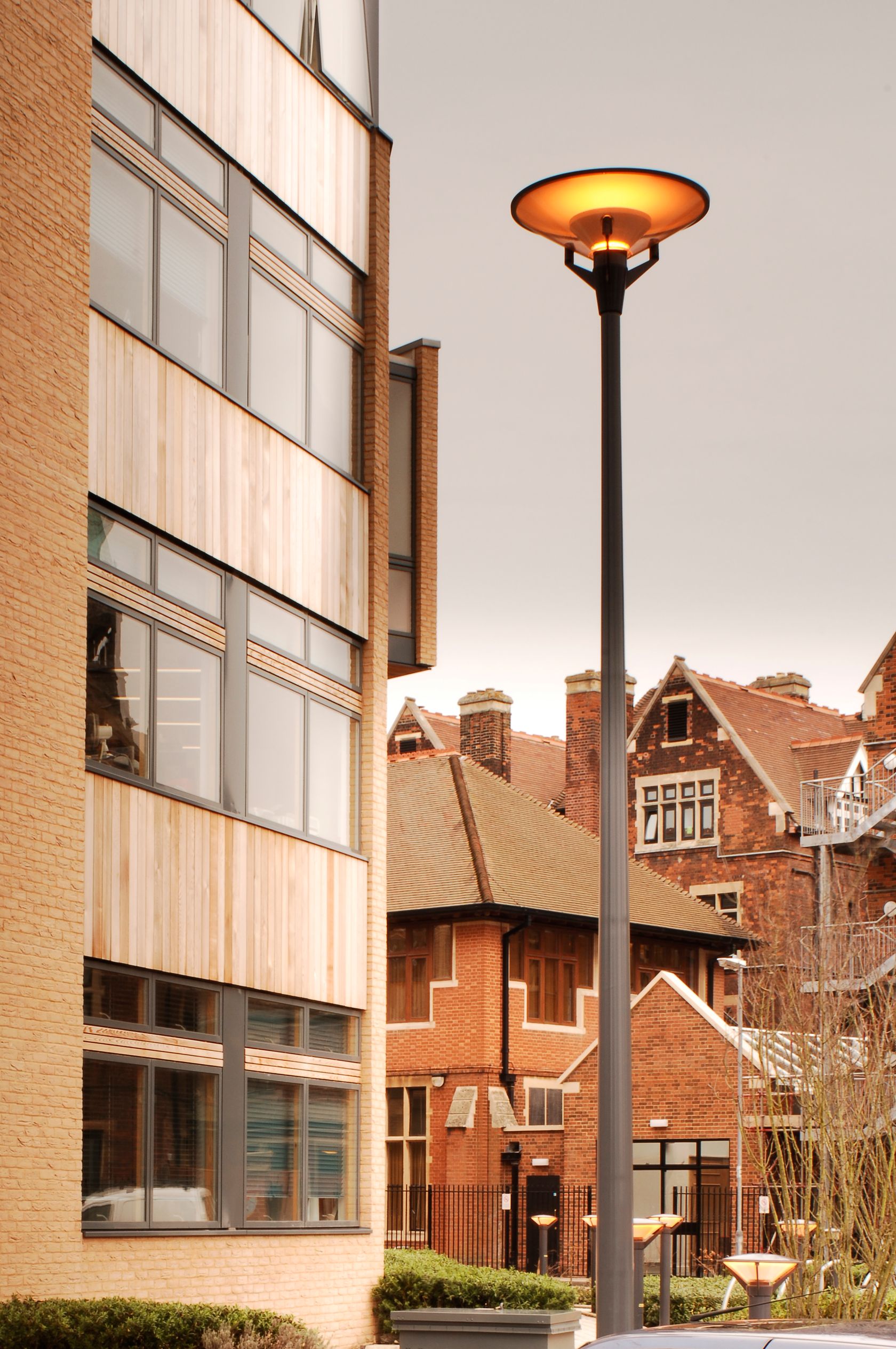

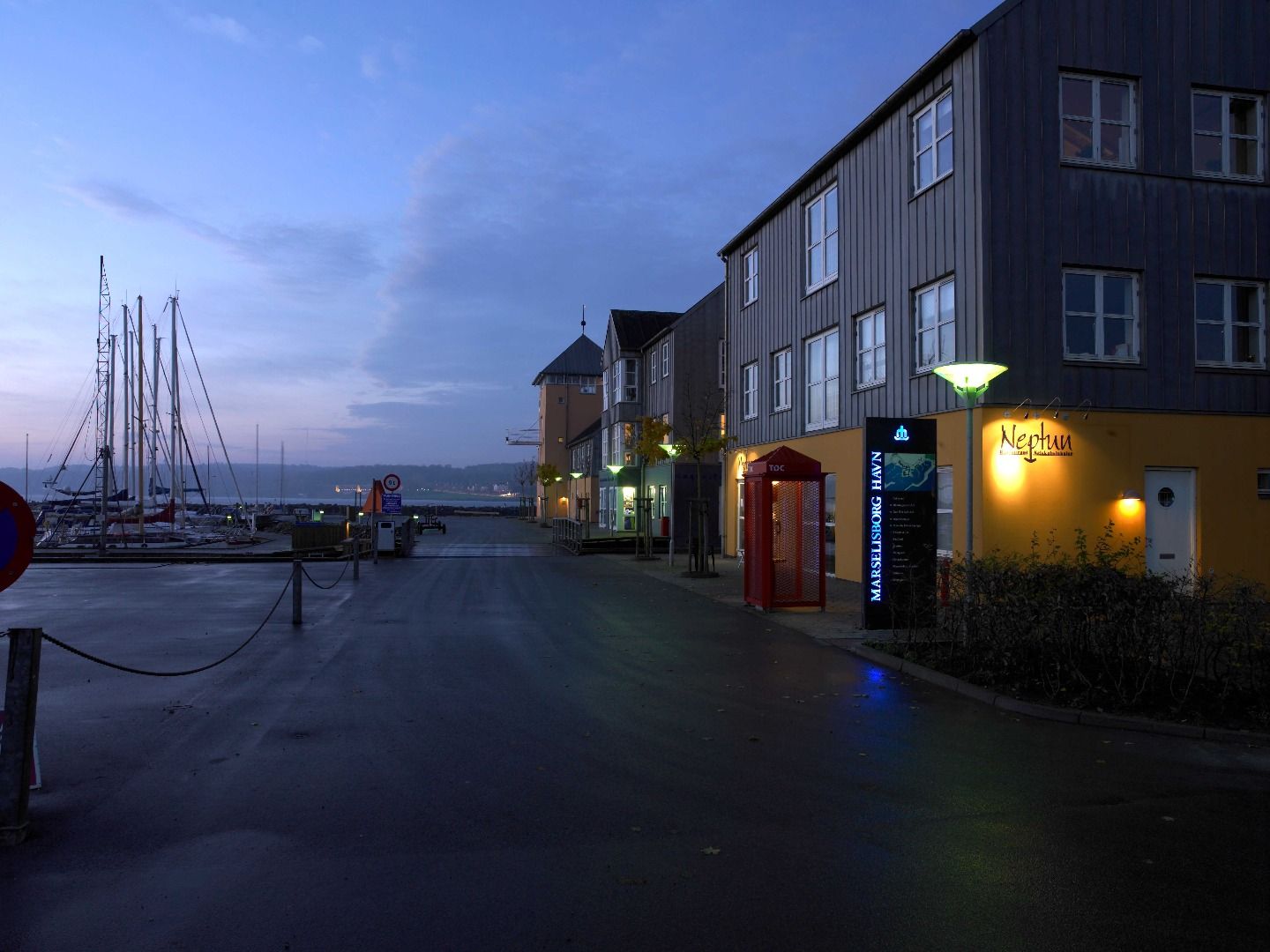

Type: LED street lamp on pole

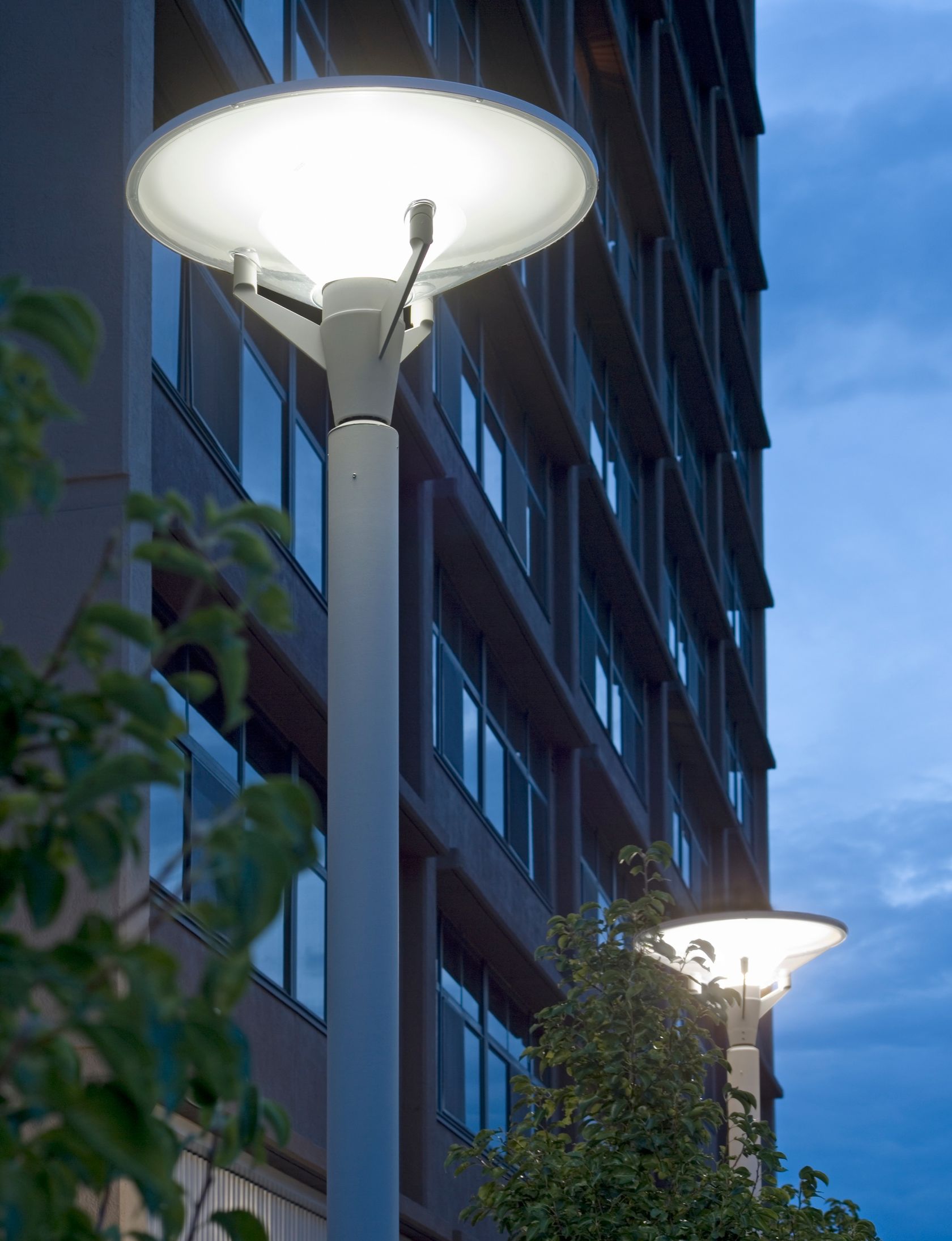

The fixture emits symmetrical light directed downwards. The angle of the internal diffuser, together with the slightly curved top shade, ensures a wide band of glare-free, uniform lighting. Mounting Pole dimension: Ø 60mm or Ø 76mm. Transition piece available for pole Ø 115m. Installation cable: 5m 2x1,5mm² (-DPC Class II), 5m 3x1,5mm² (-DPC Class I), 5m 4x1,5mm² (-DAC Class II), 5m 5x1,5mm² (-DAC Class I). Looping: Approved. LED driver in fixture head. LI: Cable to be mounted in fuse box (not included). Driver is placed in the fixture head. HI: Cable to be mounted in fuse box (included) connected to the driver. Both are placed in the pole. Specification notes Aluminium colour versions are supplied with white top shade and graphite grey versions are supplied with black top shade. Finish Aluminium coloured with textured surface or graphite grey, powder coated. Light source & energy class Energy class Light source LED 3000K 30W, 66W / LED 4000K 30W, 66W Materials Top shade: White or black, injection moulded ASA. Enclosure: Injection moulded clear polycarbonate. Frame: Die cast aluminium. Class Ingress protection IP66. Electric shock protection I w. ground, II w/o ground. IK10. Purchase information Price refers to fixture head. Pole not included.
