INSPECTION FLAT


Description

Overview

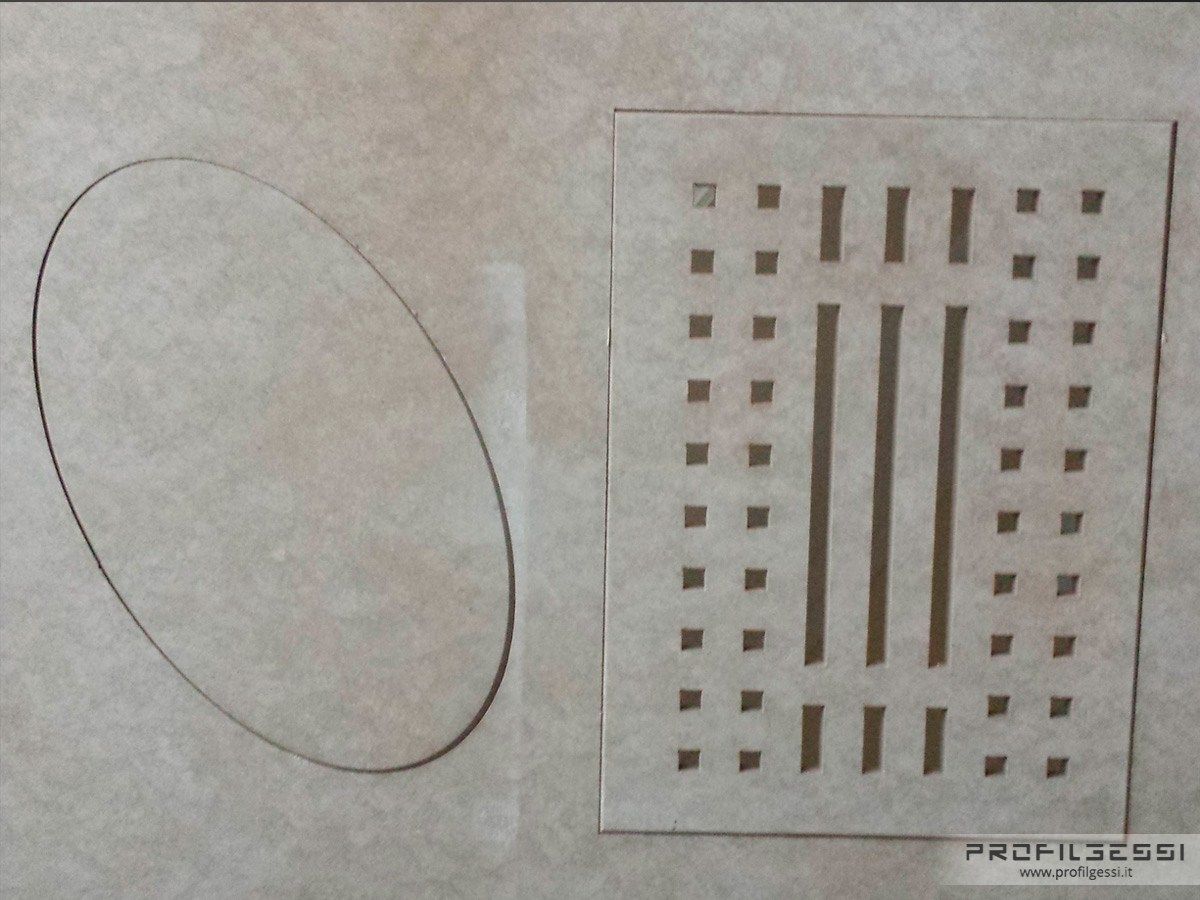

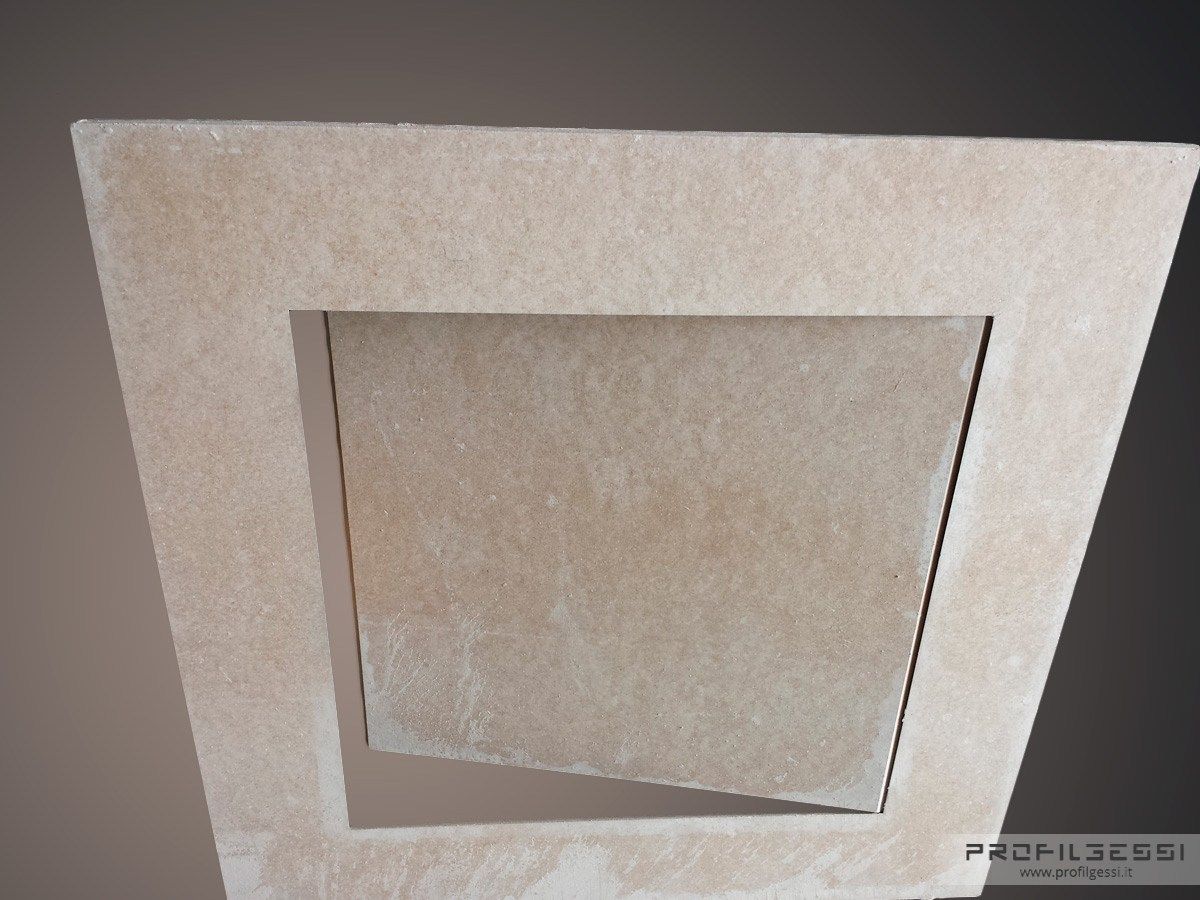

INSPECTION FLAT By Profilgessi

Collection: Technology plasterfiber

Type: Gypsum fiber inspection chamber

The trapdoors of flat series are made with plates of plaster fiber of the thickness of 12.‎5mm compatible with the types of the other plates.‎ Made with method resting on inclined cut.‎ BENEFITS - Without problems of detachment of the plaster from metal profiles - Without problems of loosening of the springs and then the cover - Resistant to shock and falls because made in plaster fiber - Simple, effective, practical and economic - Without finishing problems because the painting roller covers any difference of surfaces and from that of the plasterboard.‎ Material: The plaster fiber is a material consisting of a homogeneous mixture of gypsum (about 80%) and high quality cellulose fiber (20% recycled paper).‎ The mixture is mixed with water and compressed to high pressure, so as to form plates and resistant monolithic, subsequently dried and cut.‎ Specifications: Density: 1000 – 1250 Kg/m³ Thermal conductivity λ: 0.‎30 W/mK Resistance to water vapor diffusion μ : 21 Reaction to fire (EN 13501): A2-s1 d0 Dimensional Change: 0:30 mm / m (at 20 ° C and variation in relative air humidity of 30%) Hardness: ca.‎ 750 N Flexural strength F m, test: ≥ 5.‎8 N/ mm2 (after drying at 40° C) Flexural strength F m, k: 4,5 N/mm² Compressive strength: 7.‎5 N/mm² Tensile strength: 2.‎3 N/mm² Elastic modulus (bending): 3900 N/ mm²
