GRAFA SYSTEM By Artemide
Collection: Grafa
Designer: Wilmotte & Associés S.A.
Manufacture year: 2014
Type: Modular aluminium and polycarbonate pendant lamp

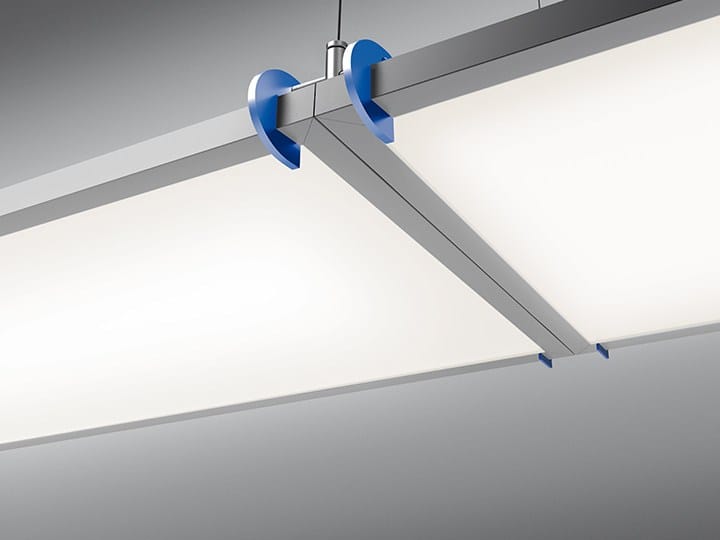

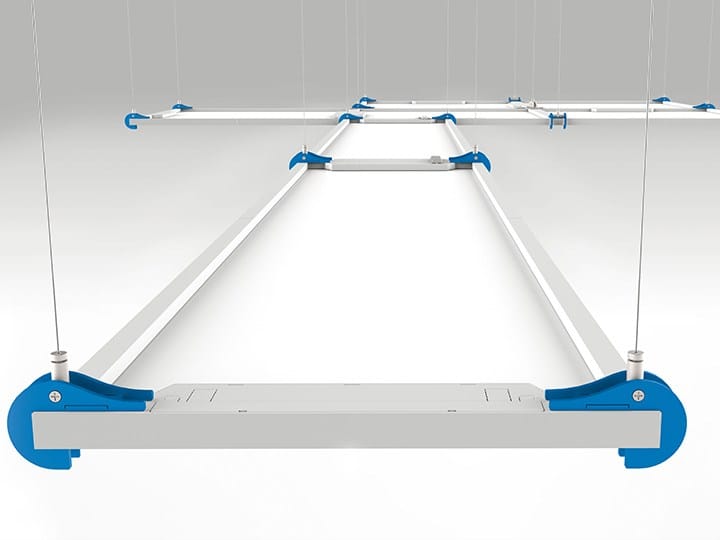

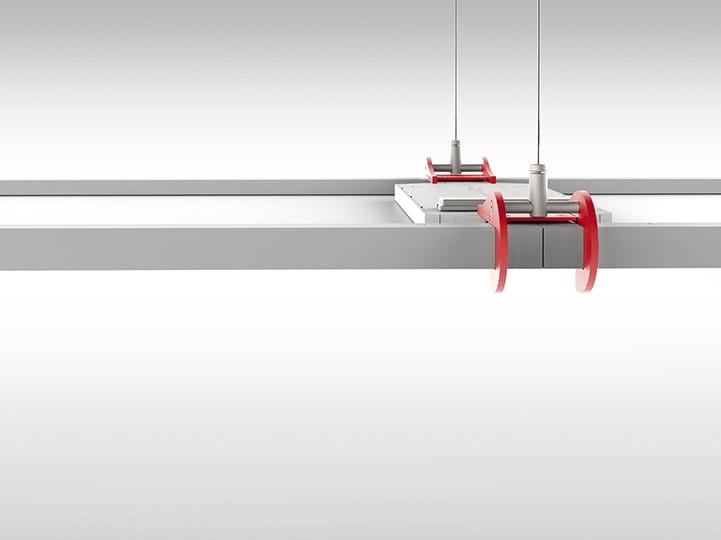

Grafa System is a LED, modular, aluminium and polycarbonate pendant lamp. Available in various sizes and formats. FEATURES Article Code: M3004W61 / M3004N61 / M3003W61 / M3003N61 / M3001W61 / M3001N61 Colour: Silver Grey Watt: 39 W Delivered lumens output: 3207 lm / 3400 lm / 3665 lm / 3886 lm CCT: 3000 K / 4000 K Efficiency: 88% Efficacy: 87.19 lm/W / 99.64 lm/W / 82.23 lm/W / 93.97 lm/W CRI: 80 SOURCES INCLUDED Category: Led Number: 1 Watt: 33W Delivered lumens output: 3864 lm / 4416 lm Color temperature (K): 3000 K / 4000 K CRI: =80(typ.) Color Tolerance: MacAdam 4SDCM Efficacy: 119 lm/W / 136 lm/W Grafa is a modular system with direct emission and indirect with LED high efficiency. Available in two colors: warm white (3000K), neutral white (4000K) - CRI = 85 (typ.). Installation with suspension. Single mounting, in continuous line by angle (90°), free composition. Dimmable electronic power supply Dali. Suspension cables in steel with quick adjustment. Complies with EN62471, EN60598-1 and other specific standards. Materials: structure in extruded aluminum anodized matte, top screen with anti-dust polycarbonate, staples in 6 different tones.
