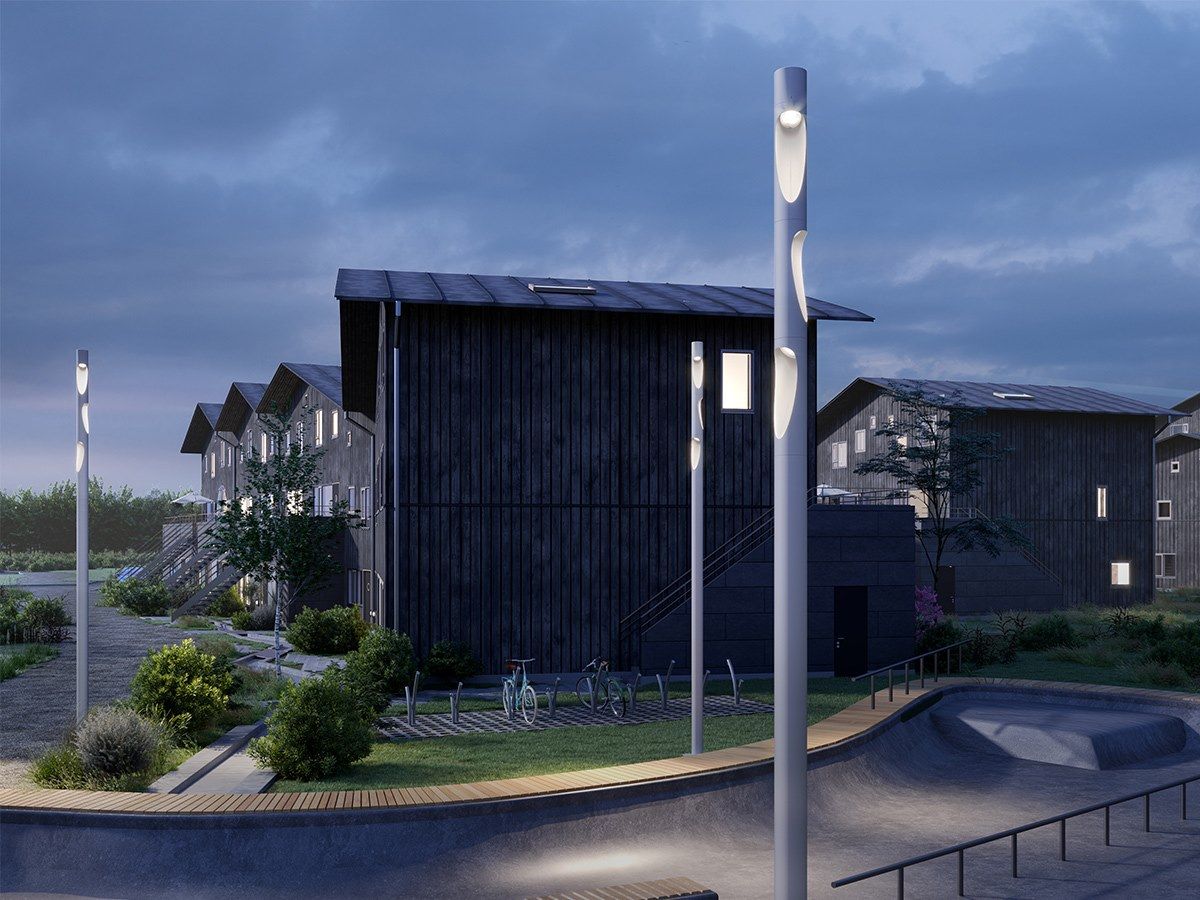

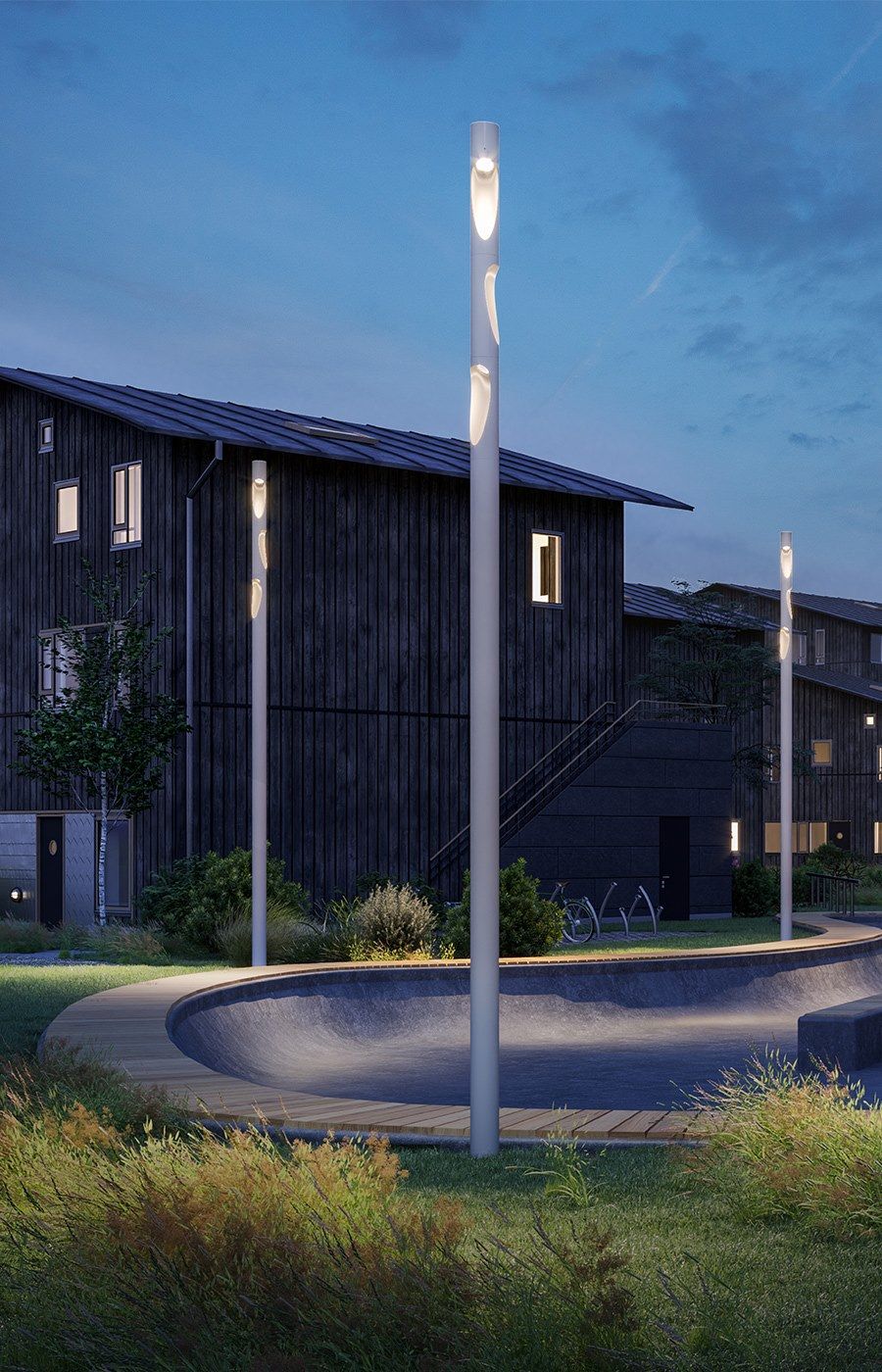

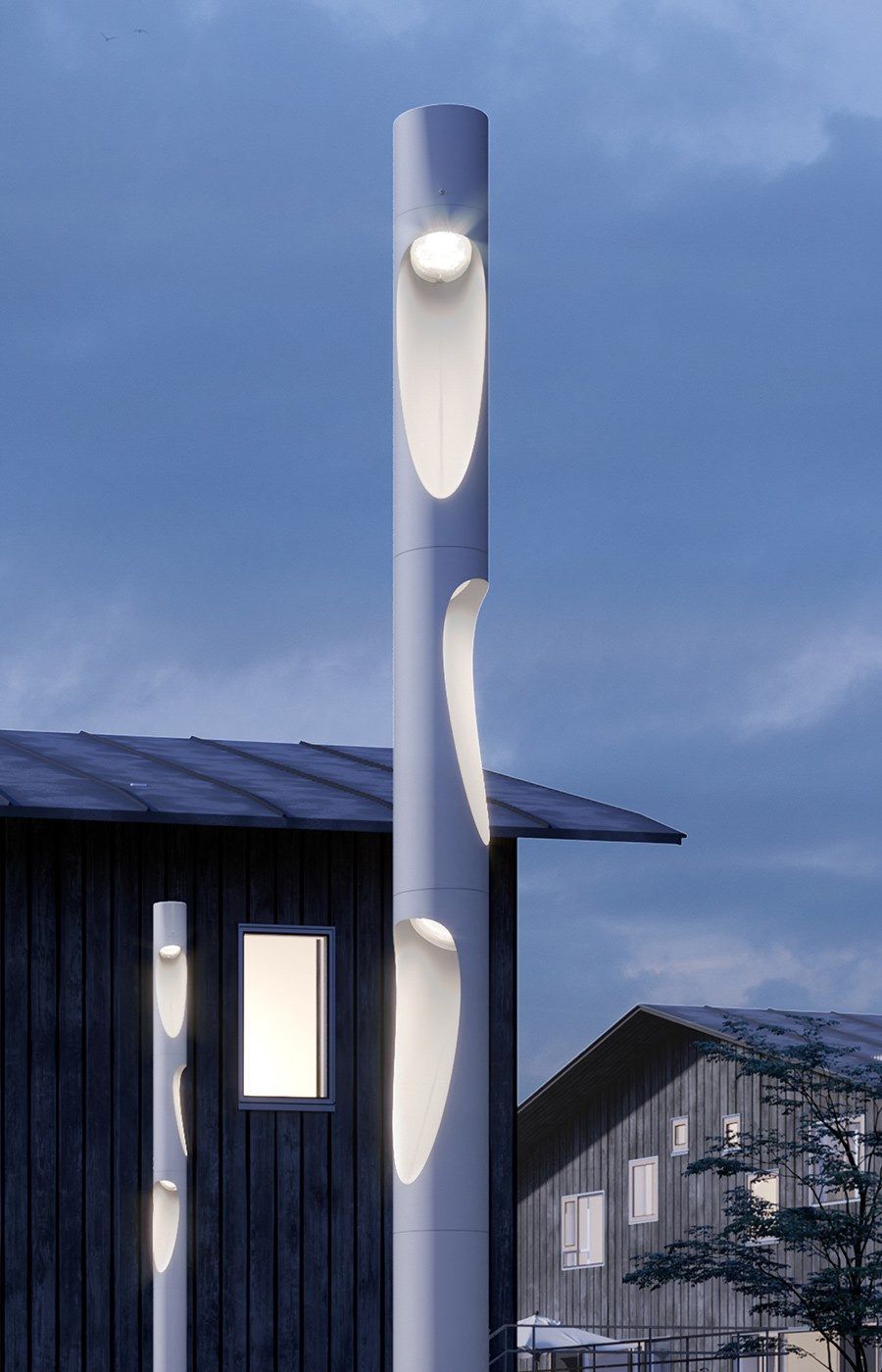

FLINDT PLAZA By Louis Poulsen
Collection: Flindt
Designer: Christian Flindt
Manufacture year: 2022
Type: LED aluminium bollard light
Flindt Plaza is a LED aluminium bollard light. Mounting Driver position: Driver integrated in each head. Posts available for inground installation or with base plate for surface mounting. Post diameter: Ø140mm. Fixture heads connects together with connectors and can be mounted on top of each other and fixed with two screws. Up to five heads on one post depending on total height. Reflector can be tilted +/- 5 degress from outside the fixture, and heads can be turned 360 degrees. Looping: Heads are connected by smart connectors. Installation cable: 5m 5x1mm² (Class I) or 5m 4x1mm² (Class II). Finish Aluminium coloured or corten coloured. Textured surface, powder coated. Materials Top: Cast aluminium. Head: Cast aluminium. Post: Extruded aluminium. Base plate: Cast aluminium. Diffuser:Polycarbonate. Sizes and weights Width x Height x Length (mm) | Light module: 140 x 500 x 140 Max 6.9 kg | Pole: 140 x 2500 x 140 Max 21.0 kg | Pole: 140 x 3500 x 140 Max 27.0 kg | Pole: 140 x 4500 x 140 Max 35.0 kg | Top: 140 x 150 x 140 Max 1.6 kg | Spacer: 140 x 500 x 140 Max 4.5 kg Class Ingress protection IP66. Electric shock protection I w. ground, II w/o ground. IK10. The fixture emits a glare-free downward directed light. The light source is hidden at the top, inside the asymmetric carving on the side of the post, where the gradient serves as a reflector that softens the light and forms a pleasant organic shape on the ground below. To optimise the flexibility in the lighting design, the illumination is adjustable with plus/minus 5° vertical and 360° horizontal, allowing for a more varied light distribution. The fixture is based on a modular principle and can in some configurations be built with up to four highly flexible light heads on one pole.
