DTF25 SH DIAMOND BLADE CUTTER By Trimmer
Product code: VA 708697
Type: Diamond blade cutter

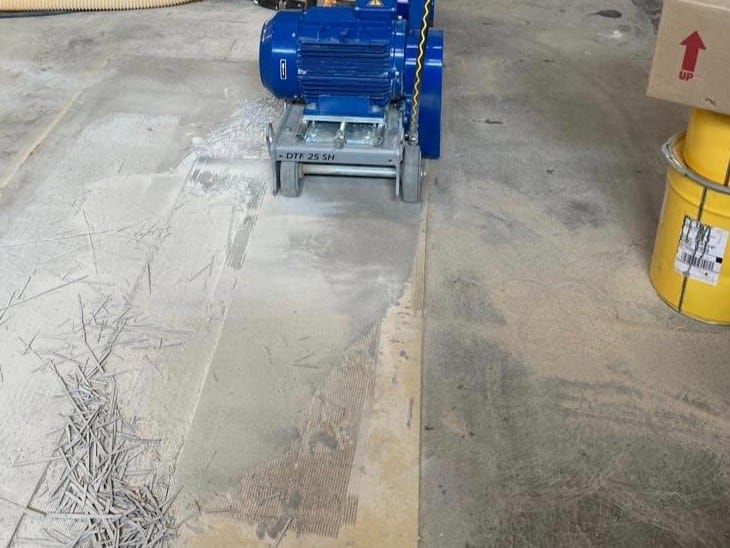

DTF25 SH DIAMOND BLADE CUTTER - Von Arx's DTF25 SH cutter is a hydraulic feed equipment equipped with an 11kW 16 Amp electric motor, which operates with a drum with diamond blades: these characteristics allow to intervene minimizing vibrations and noise and maximizing machining precision. To use: - for the removal of hard coatings from soft substrates (when scarifying would be too invasive and risk damaging the substrate); - for carrying out scratching operations in the livestock sector; - for non-slip roughening operations on natural stone, marble and granite; - for making grooves with a defined/clean edge, not chipped; - for highlighting the aggregate on concrete floors. The equipment can be equipped with: - directional viewfinder - lateral widener to minimize the distance from the wall Different types of DIAMOND BLADES available for different surfaces. Technical features: Electric power supply 400V - 50Hz - 16Amp Power 11 kW Engine revolutions 3000 rpm Working width 250mm Wall distance 100 mm Dimensions 1150 x 480 x 1150 mm Suction fitting Ø76 mm Weight without drum 215 Kg
