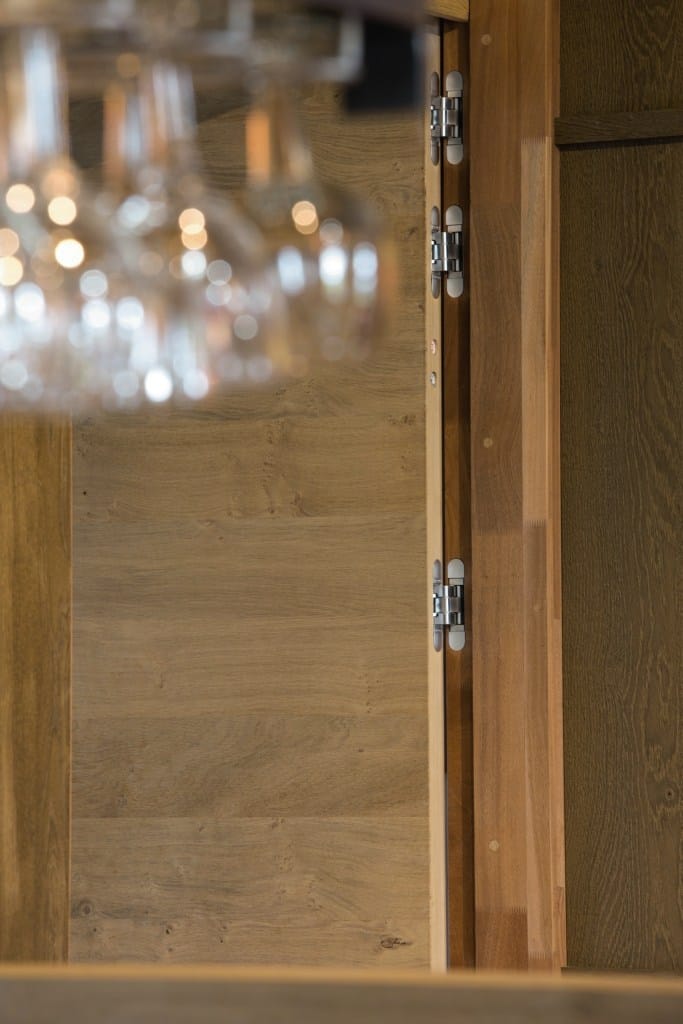

ARGENTA® INVISIBLE NEO By ARLU
Type: Concealed metal door hinge
The argenta® invisible neo, made of zamak, is available in 3 versions: S-5, M-6 and L-7. The compact S-5-version is suitable for doors with a minimal width of 35 mm and a weight up to 80 kg (3 pieces), while the M-6-version is made for doors with a width of minimum 40 mm and a weight up to 100 kg. In order to meet the requirements of the market, Argent Alu also developed the L-7-version, which is ideal for doors with a minimal width of 50 mm and a weight up to 150 kg. This hinge is an affordable and easy to install solution. The compact dimensions reduce the depth of the hinge, while the Easy-Hook system allows installation and setting by a single person. After installation, the height, width and depth are easily adjusted (3 dimensionally) without having to dismantle the door or the hinge. Furthermore, there are no screws visible, which allows a clean integration. Using argenta® invisible neo also means the carpenter can reduce his stock: being universal, it can be installed right or left. It doesn’t matter in which direction the door opens, the hinge is always suitable. Winner of the reddot design award in 2013 and the iF Product Design Award 2014!
