ARDESIA® By CORDIVARI

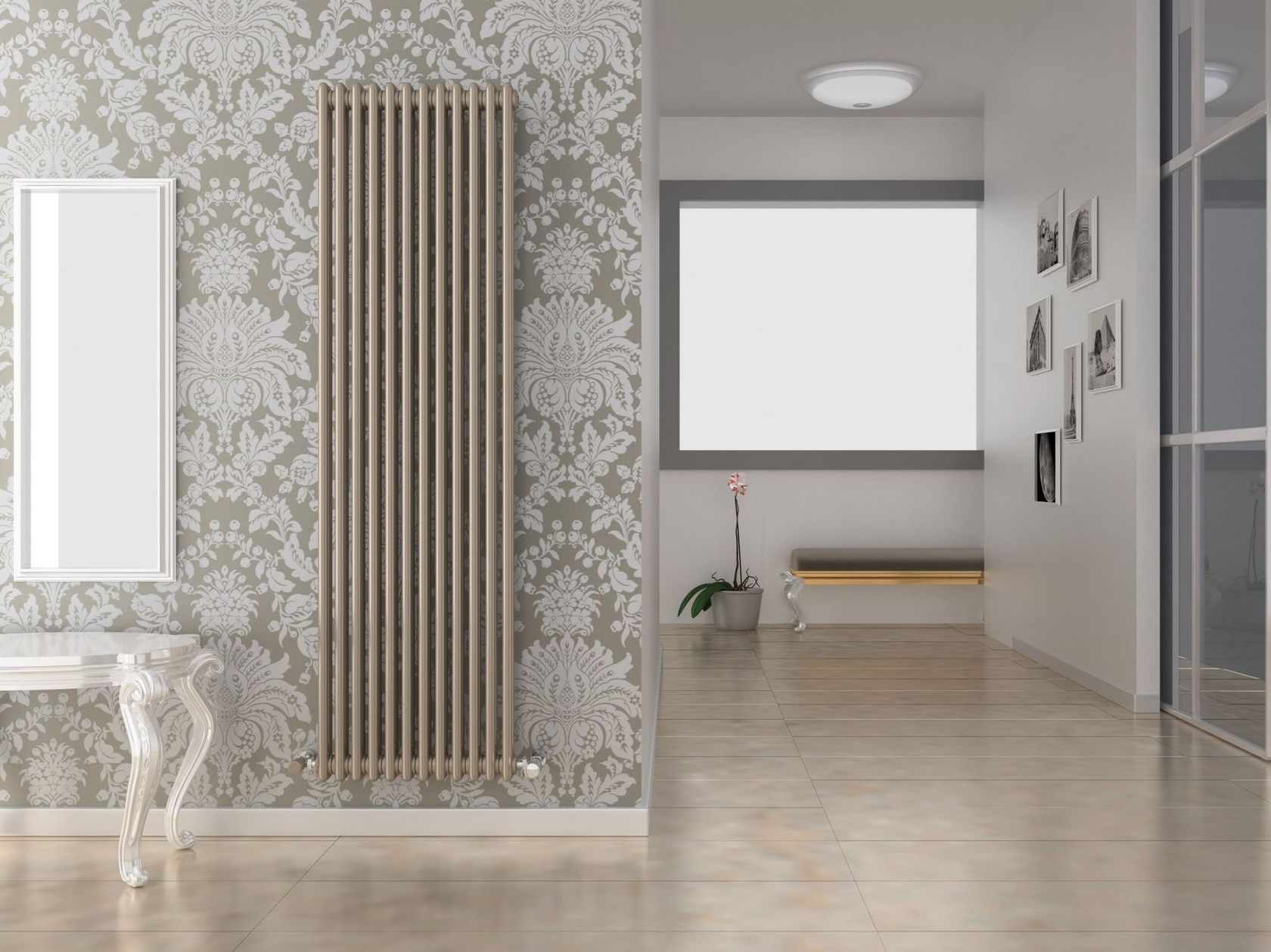

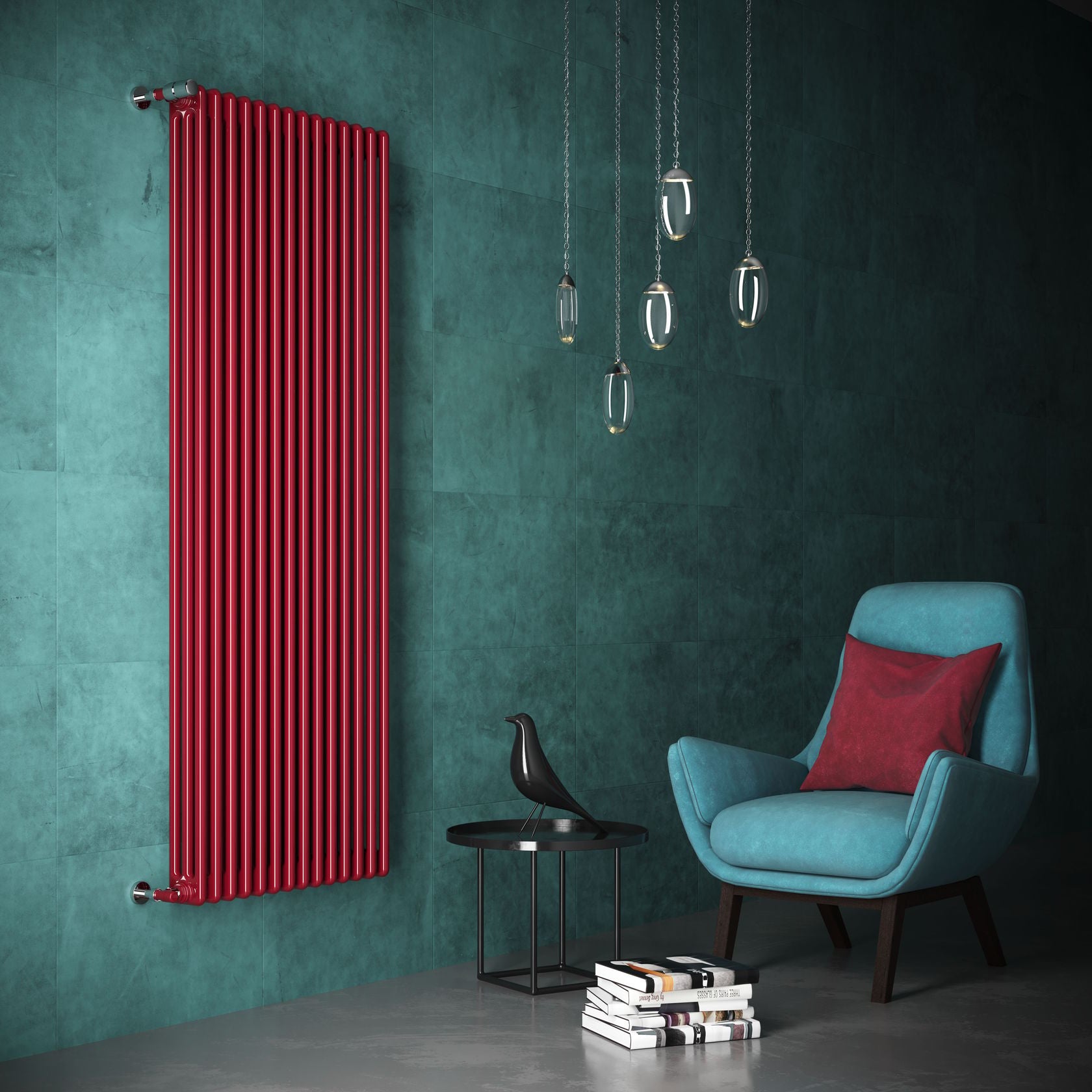

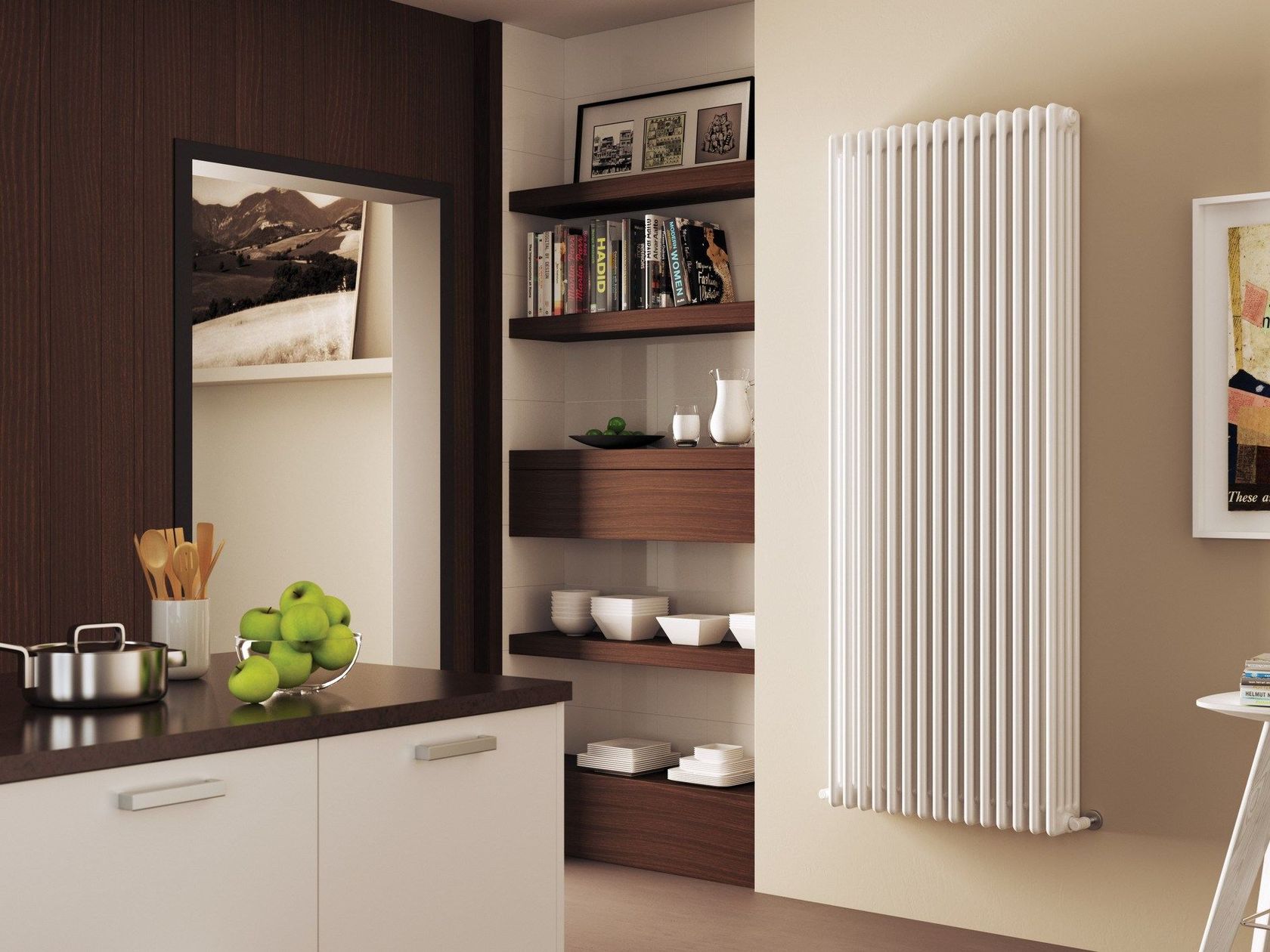

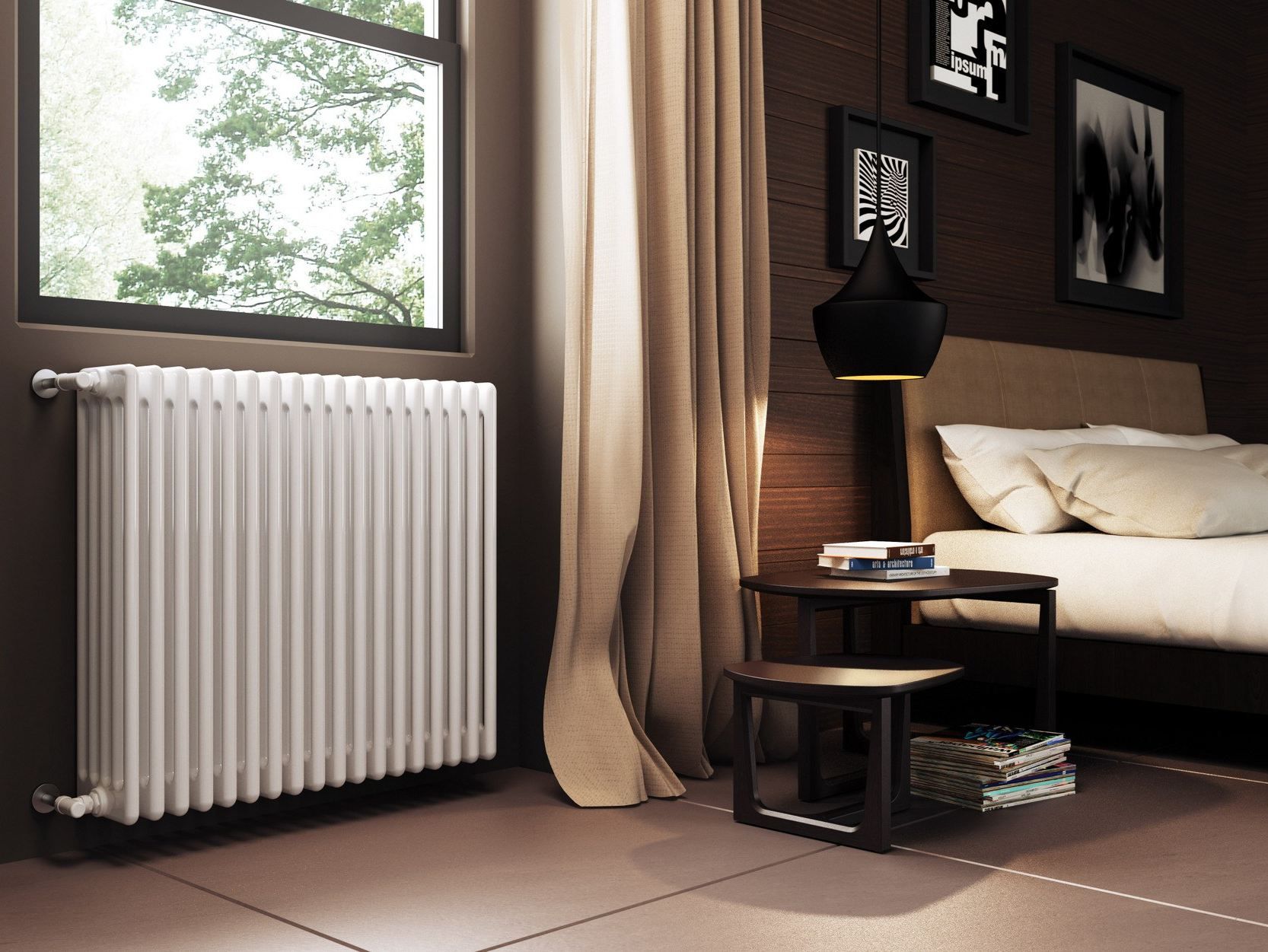

Type: Hot-water wall-mounted carbon steel decorative radiator

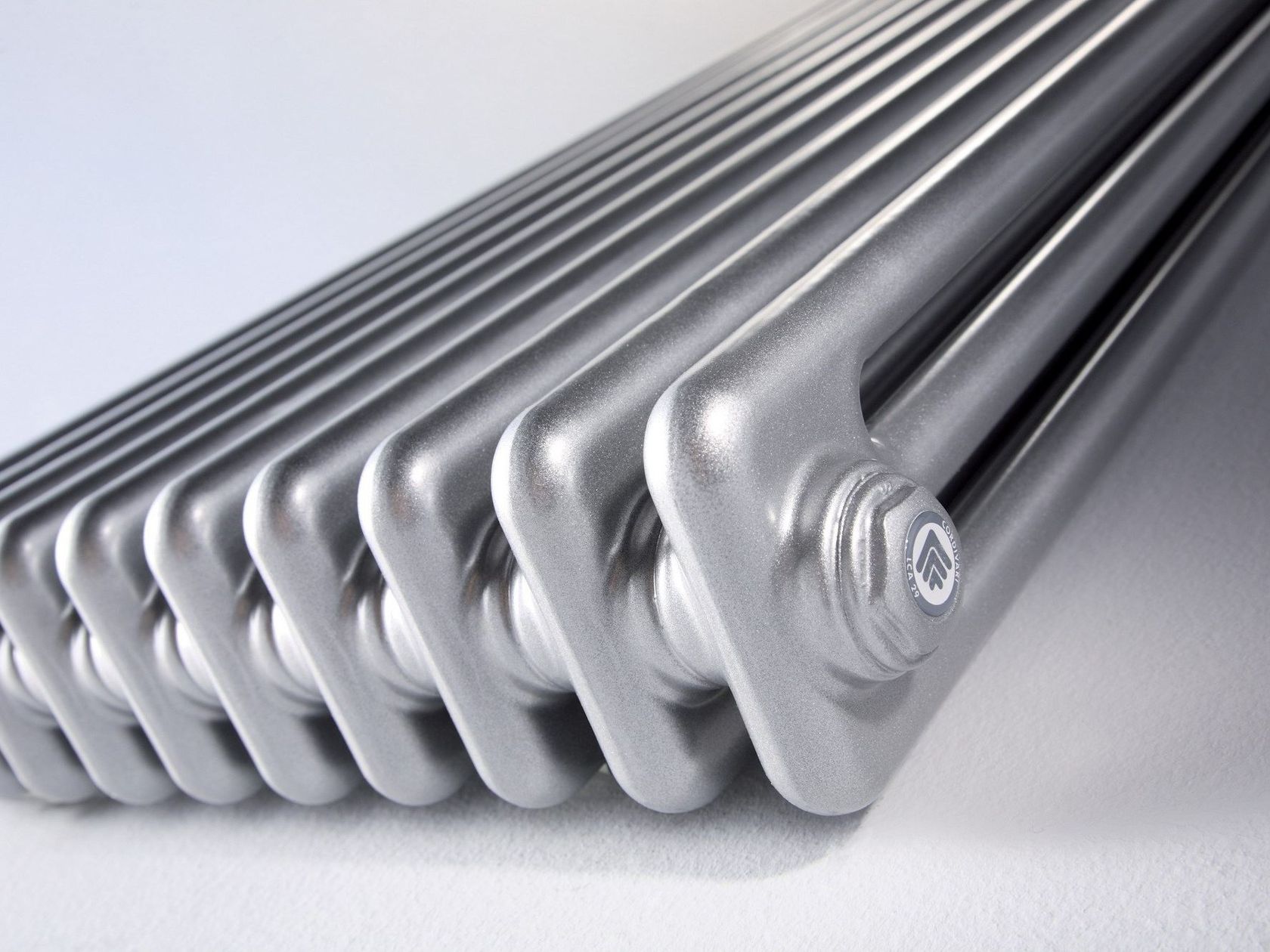

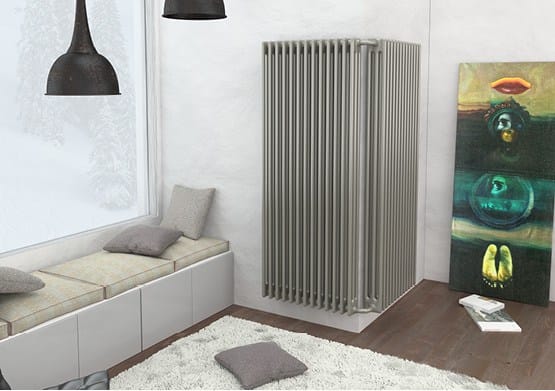

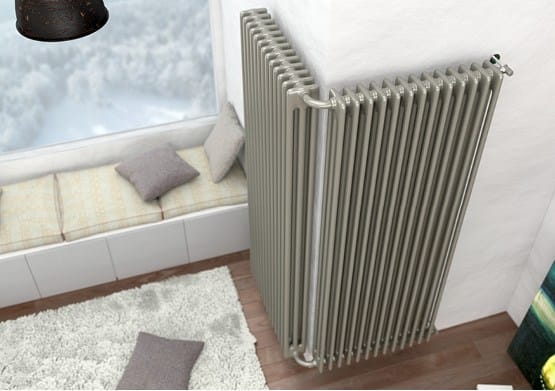

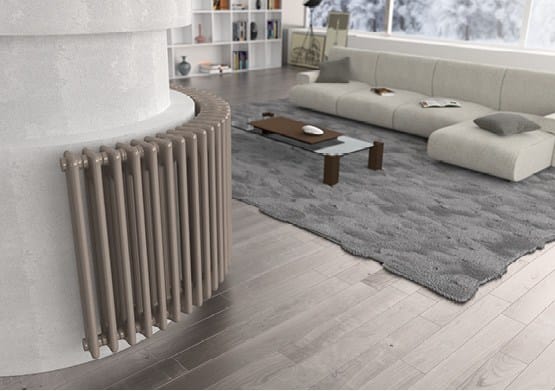

ARDESIA®: wall-mounted radiator. MATERIAL: • Pressed heads in carbon steel sheet. • Welded carbon steel tube ø 25 mm. • Space rings between sections welded with robotized technology of PULSED SPRAY WELDING. PACKAGING: The radiator is protected by a recycled film in polyethylene and with a box in recycled carton. User notice included. PAINTING PROCESS: Painted with ecological epoxy powders. (Certificate DIN 55900-1,-2) COLOURS: Standard white RAL 9010 - R01. For other colours see Colour chart chapter. On demand, it is possible to realize ardesia in hygienic version, with all connections, heights, dimensions and finishing. This execution extends the water content of Ardesia® to be applied also to sanitary and community centers subject to severe norms for hygiene in heating systems. The space between the sections has been conceived to facilitate an accurate cleaning on all radiator surface. Among all special executions, the ardesia Curved model is the ideal solution for the installation around a column or within a wall niche. Curved batteries are realizable on demand with the following minimum internal bending: Minimum internal bending: 1000 mm for 2 and 3 columns - 1300 mm for 4, 5 and 6 columns. The development of the battery can not exceed the semi-circonference, that is the angle covered by the curve needs to be less than 180°. On demand it is possible to realize customised batteries of Ardesia® Angled. Ardesia® with welded feet support is available on demand. The floor feet Support is welded to the battery and in matching colour. Standard height for The feet is 100mm. On demand, it is possible to realize feet up to 150mm of height.
