ALADIN DOUBLE SWING PLAIN By Glas Italia
Collection: Aladin
Designer: Piero Lissoni
Manufacture year: 2020
Type: Hinged glass door

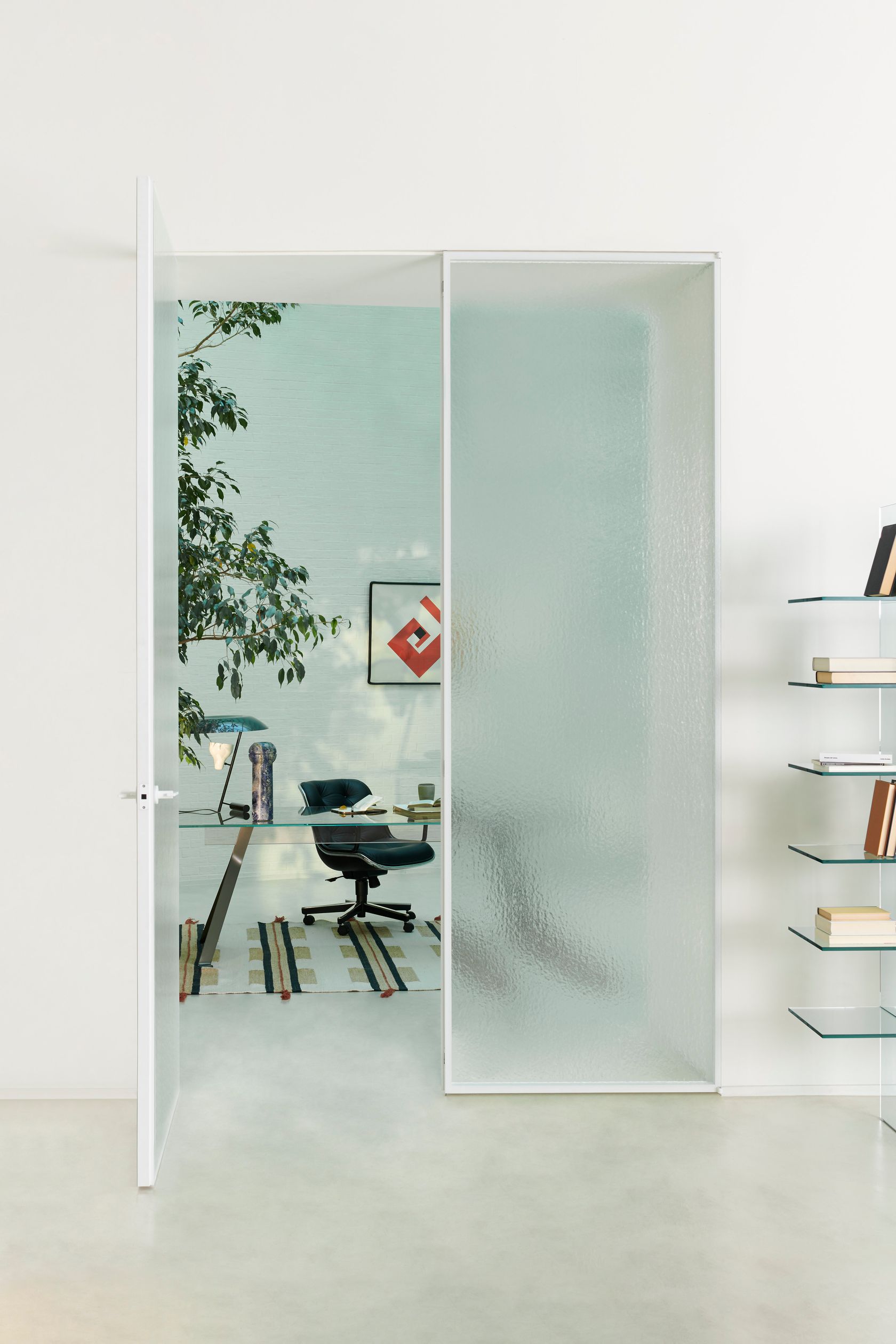

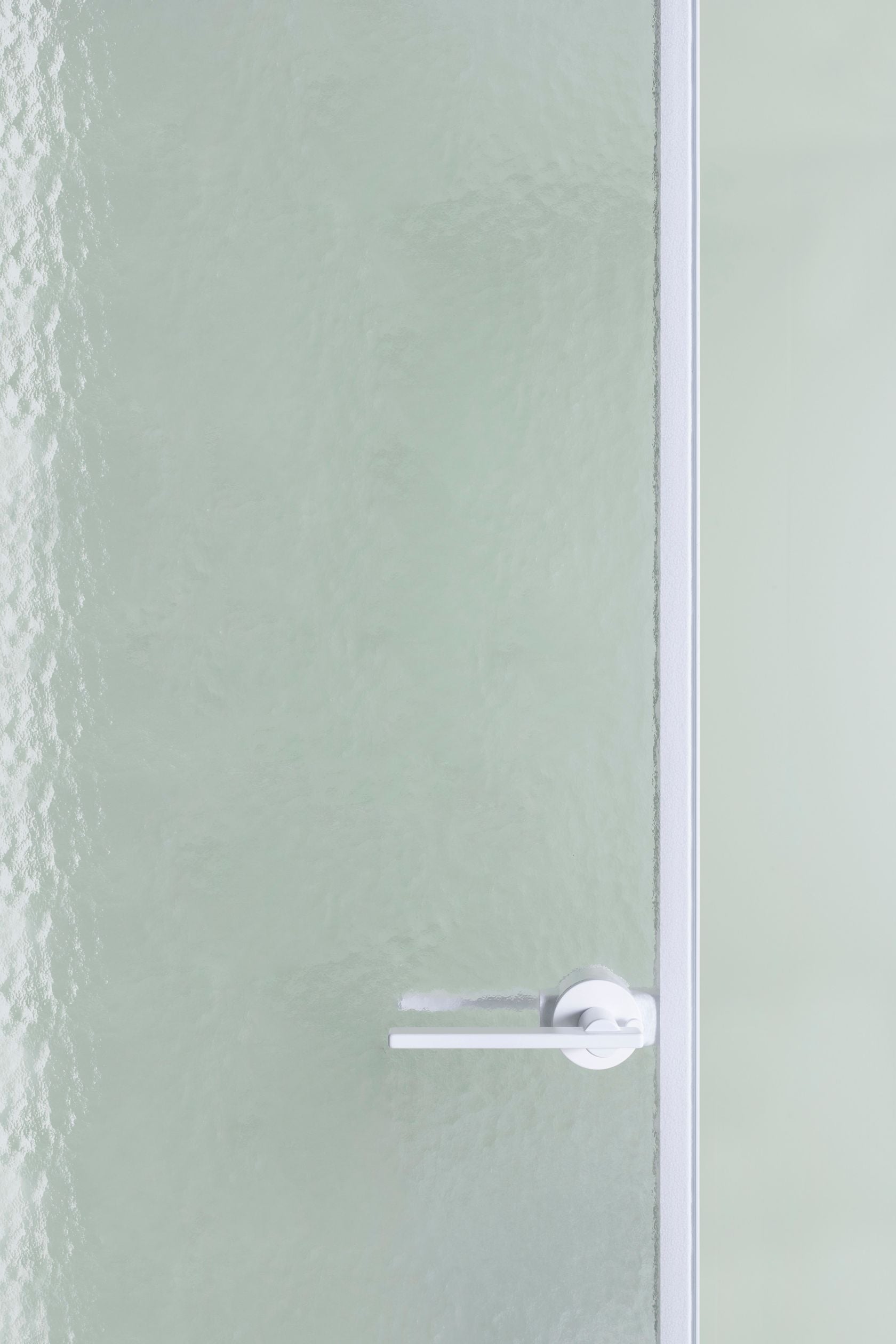

ALADIN DOUBLE SWING PLAIN is a double custom-made swing door with telescopic jamb (Aladin Double Swing Frame) or with concealed frame (Aladin Double Swing Plain), adjustable pivot hinges and aluminium frame available in five different finishes. In the MONO version a glass is applied on one side of the frame, so as to have a face with a flush surface, whilst the other surface is rebated from the perimeter aluminium frame. The glass can be monolithic tempered 6 mm in a single piece or tempered laminated 3 + 3 mm. In the DUO version, two tempered glasses 4 mm thick are applied on both faces of an aluminium frame so as to form a volume with an internal air chamber. Stoneware panels are as well available for both versions and wooden ones only for Aladin Duo. It is possible to assemble different kind of locks and choose between handle and knob which are provided , like the jamb, in the same finishes as the frame. In the concealed frame version (Aladin Double Swing Plain) the pickled aluminium subframe, invisible when the door is closed, is available for both cement walls and plasterboard and can be varnished during the painting of the walls. Available also in the version with frame flush with the ceiling. The glass is available in a wide range of finishes and it is certified according to the safety regulations ANSI Z97.1 and UNI ENI 2150 (with the exception of 533. retinato). ALADIN is a collection of doors and partition screens designed and conceived by Piero Lissoni. The doors are available in the following versions: sliding door with wall or ceiling rail (ALADIN SLIDE); pocket doors integrated into the most common systems of sliding pocket doors with visible or concealed frame (ALDIN POCKET); swing door with visible or concealed frame (ALADIN SWING); vertical pivot door with concealed frame (ALADIN PIVOT). All the panels, with aluminium frame in four different finishes, are available in the “mono” and “duo” versions: in the “Mono” version a glass is applied on one side of the frame so that one side has a flush surface and the other is rebated from the aluminium frame; the “Duo” door has two glass panels applied on both faces of the frame, so as to form a volume with an internal air chamber. Refined and versatile, all doors of the collections ALADIN are suitable for countless aesthetic configurations thanks to the wide range of glass available: neutral transparent glass; transparent coloured glass; reflecting glass; glossy or reflecting lacquered glass; matt lacquered glass; opaque or glossy coloured diffuser glass; single or double faced acid-etched glass; transparent or acid-etched patterned glass; extralight glass with meshes or with fabrics; shaded extralight glass; shaded reflecting glass; pattern decorated glass; “Life” decorated glass. All glasses are certified according to the safety regulation ANSI Z97.1 and UNI EN12150.
